ELCOM MPS-1 is a panel mount momentary push button micro switch designed for industrial and electronic control applications. It features a shrouded round actuator cap, SPDT contact arrangement, and durable construction for long operational life. Mechanical Specification Parameter Specification Model MPS-1 Brand ELCOM Switch Type Momentary Push Button Micro Switch Mounting Type Panel Mount Actuator Type Shrouded Round Cap Button Color Red Contact Configuration SPDT (1NO + 1NC) Number of Terminals 3 Pin / 4 Leg Type Mounting Method Screw Type Terminal Type Solder Terminal Body Material Nylon / PBT Cap Material ABS Contact Material Copper Alloy, Silver Plated Product Weight Approx. 12g Mechanical Life 50,000 Cycles Min. Electrical Specification Parameter Specification Rated Voltage 250V AC Rated Current 4A Contact Resistance 20mΩ Max Insulation Resistance 100MΩ Min at 500V DC Dielectric Strength 1KV AC for 1 Minute Electrical Life 10,000 Cycles Min Operating Temperature -20°C to +85°C Soldering Temperature 270°C for 5 Seconds Max Approximate Dimensions Parameter Size Mounting Hole Diameter 12mm Approx Total Height 37mm – 38mm Body Width 24mm – 25mm Thread Length 10mm – 12mm Button Diameter 16mm – 18mm Terminal Configuration Terminal Function COM Common NO Normally Open NC Normally Closed Features Durable panel mount construction Smooth tactile push operation High reliability silver-plated contacts Long electrical and mechanical life Compact industrial design Easy installation with threaded mounting Suitable for repeated operation Applications Industrial Control Panels Power Supply Units Automation Equipment Instrumentation Systems UPS/Inverter Panels DIY Electronics Projects Audio Equipment Testing Machines Available Variants Red / Black / Green Actuator Shrouded Cap Type PCB Mount & Chassis Mount Versions SPDT Configuration

PMS-1 ELCOM is a panel mounting push-type micro switch widely used in electronic equipment, industrial control panels, power supplies, testing instruments, and automation systems. It is a compact momentary push switch with threaded mounting and solder terminals. Mechanical Specification Parameter Specification Model PMS-1 Brand ELCOM Switch Type Push Micro Switch Operation Type Momentary Mounting Type Panel Mount Actuator Type Round Push Button Button Color Red Body Material High Grade Plastic Mounting Thread Approx. M10 Terminal Type Solder Lug Terminal Contact Type SPDT Number of Pins 3 Pin Mechanical Life 100,000 Cycles (Approx.) Electrical Specification Parameter Specification Rated Voltage 250VAC Rated Current 6A Contact Resistance ≤ 50mΩ Insulation Resistance ≥ 100MΩ Dielectric Strength 1000VAC Operating Temperature -10°C to +85°C Contact Configuration Terminal Function COM Common NO Normally Open NC Normally Closed Approximate Dimensions Parameter Size Total Height 32mm – 38mm Body Width 20mm – 25mm Mounting Hole Diameter 10mm Thread Length 10mm – 12mm Button Diameter 5mm – 6mm Features Compact design Easy panel mounting Reliable switching action Durable plastic housing High electrical life Suitable for low and medium power applications Fast response operation Applications Power Supply Units Industrial Control Panels Testing Equipment Automation Machines Electronic Projects UPS/Inverter Systems DIY Circuits Audio Equipment Package Includes PMS-1 Push Switch Mounting Nut Washer Advantages Long operational life Stable contact performance Compact and lightweight Easy installation Cost-effective switching solution

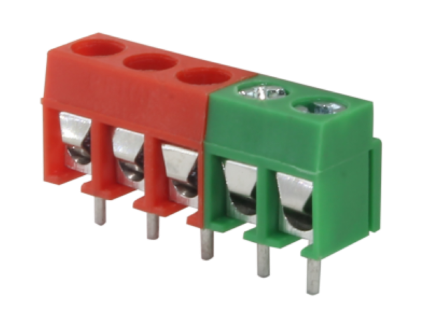

Parameter Specification Product Type PCB Screw Terminal Block Connector Mounting Type PCB Through Hole (THT) Number of Pins 4 Pin Connection Type Screw Clamp Pitch 5.00 mm / 5.08 mm (typical) Wire Entry Top Entry Terminal Type Barrier Type Color Grey / Black / Green / Red Contact Material Brass / Copper Alloy Contact Plating Tin Plated Housing Material PA66 / Thermoplastic Flammability Rating UL94V-0 Rated Voltage 250V – 300V AC Rated Current 8A – 15A Wire Size 26AWG – 12AWG Operating Temperature -40°C to +105°C Screw Type M3 Steel Screw Mounting Orientation Vertical PCB Mount Approximate Dimensions Dimension Value Pin Pitch 5.08 mm Total Length (4 Pin) ~20.3 mm Width ~8 – 10 mm Height ~12 – 15 mm PCB Pin Diameter ~1.0 mm Recommended PCB Hole 1.2 – 1.4 mm Features Easy wire connection using screws Strong mechanical holding Suitable for power and signal connections Reusable and maintenance friendly Commonly used in SMPS, UPS, industrial PCB, control panels, audio amplifiers Applications Power supply boards Industrial controllers Battery chargers LED drivers Automation systems Audio equipment Inverter PCBs Typical Electrical Ratings Rating Value Current Rating 10A typical Voltage Rating 300V AC Insulation Resistance ≥1000MΩ Dielectric Strength 2KV AC These specifications are based on standard PCB terminal block series commonly available in electronics markets.

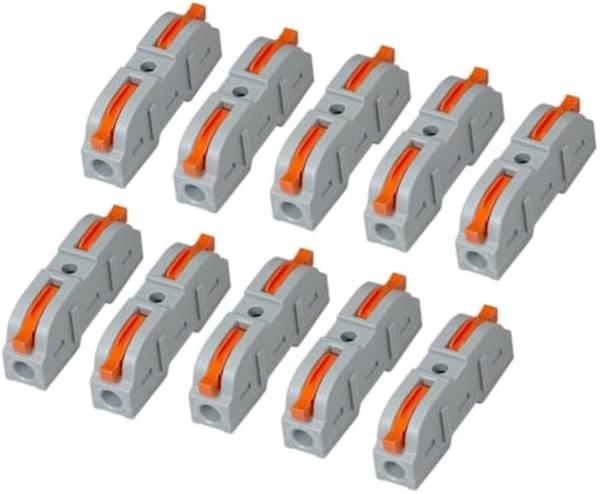

CH-2 Quick Wire Connector / Spring Type Terminal Block Connector Type 2 Pin Connector Push Type / Spring Clamp Connector Reusable Wire Connector Electrical Specification Parameter Specification Rated Voltage 220V AC / 50V DC Rated Current 6A – 10A Number of Pins 2 Pin Contact Resistance Low Resistance Spring Contact Insulation Resistance ≥100MΩ Mechanical Specification Parameter Specification Lock Type Spring Clamp Mounting Type Inline Wire Entry Push-In Type Reusable Yes Screw Hole M3 Center Hole Material Details Part Material Housing Flame Retardant PP / PC Plastic Contact Material Phosphor Bronze / Manganese Steel Spring Material Stainless Steel Wire Compatibility Specification Value Supported Wire Size 0.5mm² – 2.5mm² Wire Type Solid & Stranded Wire Strip Length 8mm – 11mm Physical Dimensions Dimension Approximate Size Length 20mm – 22mm Width 16mm – 17mm Height 11mm – 13mm Features Quick wire connection No soldering required Strong spring locking mechanism Flame retardant body Compact and lightweight Easy installation and removal Suitable for repeated use Applications LED lighting connections Ceiling lights Home electrical wiring Automotive wiring DIY electronics projects Power distribution boxes Fan and switch connections Color White Operating Temperature -40°C to +105°C Package Includes CH-2 2-Pin Connector The CH-2 connector is commonly used for fast and secure joining of two electrical wires without soldering.

PBS-3 Round Power Push Button Switch is a latching ON/OFF switch with illuminated red actuator. It is commonly used for power control in electrical appliances, industrial panels, UPS systems, extension boards, and automation equipment. General Specifications Parameter Specification Product Name PBS-3 Power Push Button Switch Switch Type Push Button Power Switch Operation Type Latching ON/OFF Contact Configuration SPST Number of Pins 3 Pin Rated Voltage 250VAC Rated Current 16A Indicator Light Yes (Red LED/Neon) Mounting Type Panel Mount / Snap-In Button Color Red Body Color Black Housing Material Flame Retardant Plastic Contact Material Copper Alloy Terminal Type Solder / Quick Connect Electrical Life 50,000 Cycles Approx Insulation Resistance ≥100MΩ Contact Resistance ≤100mΩ Dielectric Strength 500V AC for 1 Minute Operating Temperature -25°C to +85°C Certification CE, CQC Mechanical Dimensions (Approx.) Dimension Size Mounting Hole Diameter 22mm Head Diameter 30mm Approx Overall Height 32mm Approx Terminal Length 6–8mm Pin Spacing Standard PCB/Solder Type Electrical Diagram Press Once → ON Press Again → OFF Illuminated indicator shows power status Features High current capacity up to 16A Built-in red illumination Easy snap-in panel installation Long mechanical life Compact round design Reliable ON/OFF locking mechanism Suitable for AC power applications Applications Power Supplies UPS Systems Home Appliances Industrial Control Panels Extension Boards Water Dispensers Audio Amplifiers Automation Equipment DIY Electronic Projects

DB-15 Metal Dust Cover (also called DB15 Metal Hood or D-Sub Metal Shell) is used to protect and cover DB-15 male/female D-sub connectors. It provides mechanical protection, cable strain relief, and EMI/RFI shielding for industrial and communication applications. General Specifications Parameter Specification Product Name DB-15 Metal Dust Cover / Metal Hood Connector Type DB-15 D-Sub Connector Compatible Connector DB15 Male & Female Material Zinc Alloy / Metal Finish Nickel Plated / Chrome Finish Color Silver Shell Type Two-Piece Metal Hood Mounting Hardware Included Screw Type UNC 4-40 Jack Screws Cable Entry Rear / Side Entry Cable Outer Diameter Up to 7mm – 11.5mm Shielding EMI/RFI Shielded Operating Temperature -40°C to +120°C Reusable Yes Assembly Type Screw Lock Type Mechanical Dimensions (Approx.) Dimension Size Length 40 – 59 mm Width 39 – 40 mm Height 15 – 18 mm Weight 9g – 25g Features Strong metal construction Excellent EMI/RFI protection Easy two-piece assembly Includes cable clamp & screws Durable nickel-plated finish Suitable for industrial communication cables Compatible with solder and crimp DB15 connectors Applications Serial Communication Cables Industrial Control Systems VGA / Video Interfaces Automation Equipment Data Acquisition Systems Instrumentation Devices Robotics & CNC Machines Package Includes 1 × DB15 Metal Hood Mounting Screws Cable Clamp Strain Relief Hardware Common Names DB15 Metal Hood DB15 Dust Cover D-Sub 15 Metal Shell DB15 Connector Housing DB15 Backshell Specifications referenced from connector manufacturers and electronics suppliers.

The DB-15 Female Connector is a 15-pin D-Subminiature connector designed for secure signal and data transmission in electronic and industrial applications. It features a durable metal shell with 15 female socket contacts arranged in two rows. Mechanical Specifications Parameter Specification Connector Type D-Sub Connector Gender Female Number of Pins 15 Socket Pins Mounting Type Panel Mount / PCB Mount Contact Arrangement 2 Rows Shell Material Nickel Plated Steel Contact Material Copper Alloy Contact Plating Gold Flash / Tin Insulator Material PBT / Thermoplastic Housing Finish Corrosion Resistant Metal Locking Type Screw Lock Compatible Electrical Specifications Parameter Value Rated Current 3A – 5A Rated Voltage 250V AC Contact Resistance ≤ 20mΩ Insulation Resistance ≥ 1000MΩ Withstanding Voltage 1000V AC for 1 Minute Operating Temperature -55°C to +105°C Approximate Dimensions Dimension Size Length 39 mm Width 12.5 mm Height 13 mm Pin Pitch 2.77 mm Mounting Hole Distance 33.3 mm Features Strong metal shielding Reliable female socket contacts Easy soldering and installation High durability and long life Stable signal transmission Compact and lightweight design Applications Industrial automation Communication devices Computer peripherals VGA and display interfaces Instrumentation systems CNC and control panels Embedded electronic systems

The DB-15 Male Connector is a 15-pin D-Subminiature connector widely used for industrial equipment, communication interfaces, control systems, VGA-type applications, and electronic devices. It features a metal shielded housing with 15 male pins arranged in two rows. Mechanical Specifications Parameter Specification Connector Type D-Sub Connector Gender Male Number of Pins 15 Pins Mounting Type Panel Mount / PCB Mount Contact Arrangement 2 Rows Shell Material Nickel Plated Steel Contact Material Copper Alloy Contact Plating Gold Flash / Tin Insulator Material PBT / Thermoplastic Mounting Hole Type Standard D-Sub Flange Locking System Screw Lock Compatible Connector Color Blue Insulator with Silver Shell Electrical Specifications Parameter Value Rated Current 3A – 5A Rated Voltage 250V AC Contact Resistance ≤ 20mΩ Insulation Resistance ≥ 1000MΩ Dielectric Withstanding Voltage 1000V AC for 1 Minute Operating Temperature -55°C to +105°C Approximate Dimensions Dimension Size Length 39 mm Width 12.5 mm Height 13 mm Pin Pitch 2.77 mm Mounting Hole Distance 33.3 mm Features Durable metal shielding Corrosion resistant contacts Reliable signal transmission Easy soldering terminals Compact industrial design Suitable for data and control applications Common Applications Industrial control panels Communication equipment Computer peripherals VGA interfaces CNC machines Instrumentation systems Automation devices Package Includes 1 × DB-15 Male Connector Solder cup / PCB pin terminals depending on model

Product Name: DB9 RA Connector Type: D-Subminiature Connector Orientation: Right Angle (RA) / 90° PCB Mount Gender: Male Number of Pins: 9 Pins Mounting Type: Through Hole PCB Mount Connector Series: DB9 / DE-9 Mechanical Specifications Length: 30 mm Width: 16 mm Height: 18 mm Pitch: 2.77 mm Shell Material: Nickel-Plated Steel Insulator Material: PBT / High Temperature Thermoplastic Contact Material: Copper Alloy Contact Plating: Gold Plated Pins Weight: Approx. 6 g Electrical Specifications Voltage Rating: 250V AC Current Rating: 5A Contact Resistance: 20mΩ Max Insulation Resistance: 1000MΩ Min Dielectric Withstanding Voltage: 1000V AC for 1 Minute Environmental Specifications Operating Temperature: -55°C to +125°C RoHS Compliance: Yes Flammability Rating: UL94V-0 (Typical) Features Right-angle design saves PCB space Through-hole solder terminals for strong mounting Integrated screw-lock support Gold-plated contacts for reliable signal transmission Suitable for industrial and communication equipment High durability metal shield construction Applications RS232 Serial Communication Industrial Automation PLC Interfaces CNC Controllers Embedded Systems Computer Peripheral Devices Instrumentation Equipment

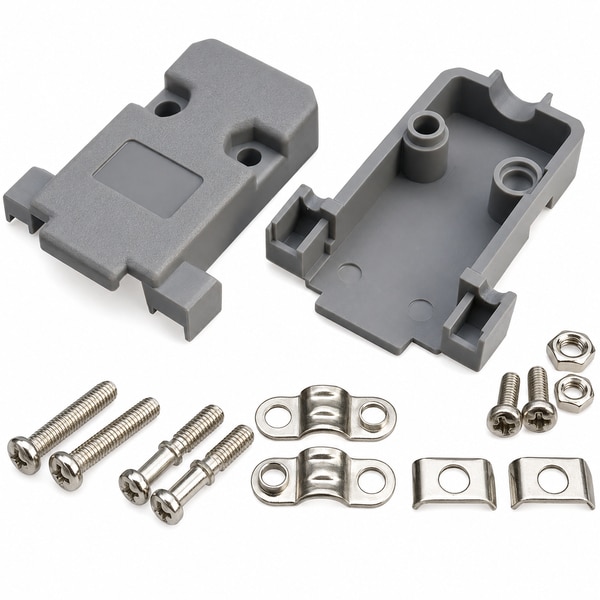

Product Name: DB-9 Dust Cover / DB9 Connector Hood / D-Sub 9 Pin Cover Connector Type: DE-9 / DB9 Male & Female Compatible Material: High-quality ABS Plastic + Metal Hardware Color: Grey Mounting Type: Screw Lock Assembly Cable Entry: Rear Entry with Strain Relief Clamp Shielding: Non-Shielded Plastic Housing Physical Dimensions Length: 40 mm Width: 31 mm Height: 15 mm Cable Diameter Support: Up to 7 mm Features ✔ Protects DB9 connector from dust & damage ✔ Strong strain relief cable clamp ✔ Easy open/close screw assembly ✔ Durable impact-resistant body ✔ Suitable for RS232 Serial Cable Assembly ✔ Compatible with Male / Female DB9 connectors Hardware Included 2 × Housing Shells 4 × Fixing Screws 2 × Cable Clamps 2 × Lock Nuts 2 × Strain Relief Plates Applications RS232 Serial Communication Cable Industrial Control Systems PLC / CNC Communication Computer COM Port Cable Protection Instrumentation & Automation Wiring Operating Temperature: -20°C to +85°C Weight: Approx. 8–10g per set This is the standard grey DB9 hood cover used for cable assembly and connector protection.

General Information Product Type: DB-9 Male D-Sub Connector Connector Series: D-Subminiature (D-SUB) Gender: Male Number of Pins: 9 Pins Mounting Type: Panel Mount / PCB Mount Orientation: Straight ⚙️ Electrical Specifications Rated Voltage: 250V AC RMS Rated Current: 3A per contact Contact Resistance: ≤ 20mΩ Insulation Resistance: ≥ 1000MΩ at 500V DC Dielectric Strength: 1000V AC for 1 minute 🔩 Mechanical Specifications Connector Type: D-SUB 9 Pin Male Termination Type: Solder Cup / PCB Pin Mounting Style: Flange mount with locking holes Mating Cycles: ≥ 500 insertion cycles Locking System: Standard D-SUB screw lock compatible 🧱 Material Details Shell Material: Steel with nickel plating Contact Material: Copper alloy Contact Finish: Gold flash plated over nickel Insulator Material: PBT / Thermoplastic (Black color)

Product Type: DB9 Female D-Sub Connector Connector Series: D-Subminiature (D-SUB) Gender: Female Number of Pins: 9 Pins Mounting Type: Panel Mount / Solder Type Orientation: Straight ⚙️ Electrical Specifications Rated Voltage: 250V AC RMS Rated Current: 3A per contact Contact Resistance: ≤ 20mΩ Insulation Resistance: ≥ 1000MΩ Dielectric Withstand Voltage: 1000V AC for 1 minute 🔩 Mechanical Specifications Connector Type: D-SUB 9 Pin Female Mounting Style: Panel mount with flange holes Termination Type: Solder Cup / PCB Pin (depending on model) Mating Cycles: ≥ 500 cycles Locking System: Screw lock compatible 🧱 Material Details Shell Material: Steel with nickel plating Contact Material: Copper alloy Contact Plating: Gold flash over nickel Insulator Material: PBT / Thermoplastic (Blue color) 📏 Physical Dimensions (Approx.) Pin Count: 9 Mounting Hole Distance: 25mm Connector Width: 30.8mm Connector Height: 12.5mm Connector Depth: 17mm – 20mm
