BS-2

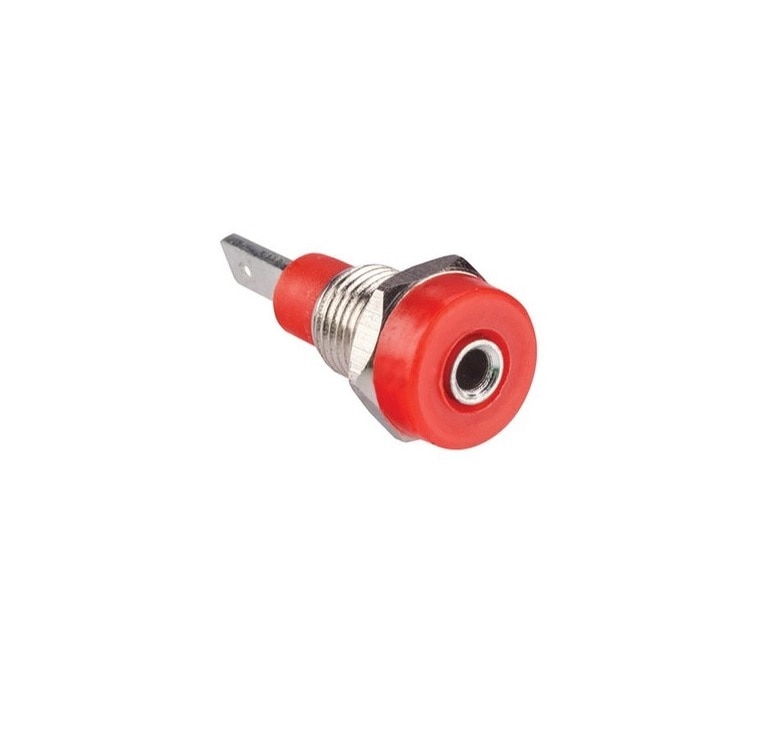

The BS-2 2mm Banana Socket is a female panel-mount connector designed for connecting standard 2mm banana plugs. Specifications vary slightly by manufacturer; the ratings below are based on published BS-2 specifications from Indian suppliers.

Parameter Specification

Product Name 2mm Banana Socket

Model / Part No. BS-2

Connector Type Banana Socket / Female Jack

Socket Size 2mm

Mounting Type Panel Mount

Connection Type Solder Type

Rated Current 5A

Rated Voltage 250V AC

Contact Material Brass / Copper Alloy

Contact Plating Nickel / Tin plated, depending on make

Body Material ABS / Insulating plastic

Insulation Insulated

Contact Resistance Up to 10 mΩ max. for some BS-2 versions

Available Colours Red, Black, Green, Blue, Yellow

Compatible Plug 2mm Male Banana Plug

Terminal Type Solder / panel terminal

Application Test equipment, laboratory instruments, electronic panels, educational kits and electrical testing

Country of Origin India

Product Category Banana Plug & Socket / Electrical Connector

A published BS-2 specification from Prime lists 5A/250V AC, 2mm plug size and five standard colors.

Dimensions

Common 2mm panel-mount versions are approximately 22–24 mm overall length and require about a 6–6.5 mm mounting hole, although dimensions can vary by manufacturer.

Key Features

Compact 2mm female banana socket

Suitable for 2mm banana plugs

Panel-mount construction

Insulated body for electrical protection

Brass conductive contact

Durable and corrosion-resistant plated contact

Available in multiple identification colors

Suitable for solder-wire connection

Useful for electrical and electronic testing applications

Applications

Laboratory testing equipment

Multimeters and test instruments

Electronic project panels

Power supply units

Educational electronics kits

Control and instrumentation panels

Electrical testing and measurement equipment

Product listing title:

BS-2 2MM Banana Socket – Panel Mount, 5A 250V AC, Solder Type

Note: If your BS-2 is a specific Prime / ELCOM / Switch Mart make, the exact dimensions, insulation resistance and breakdown voltage should be taken from that manufacturer's datasheet rather than assumed from another BS-2 version.
