BTP-2

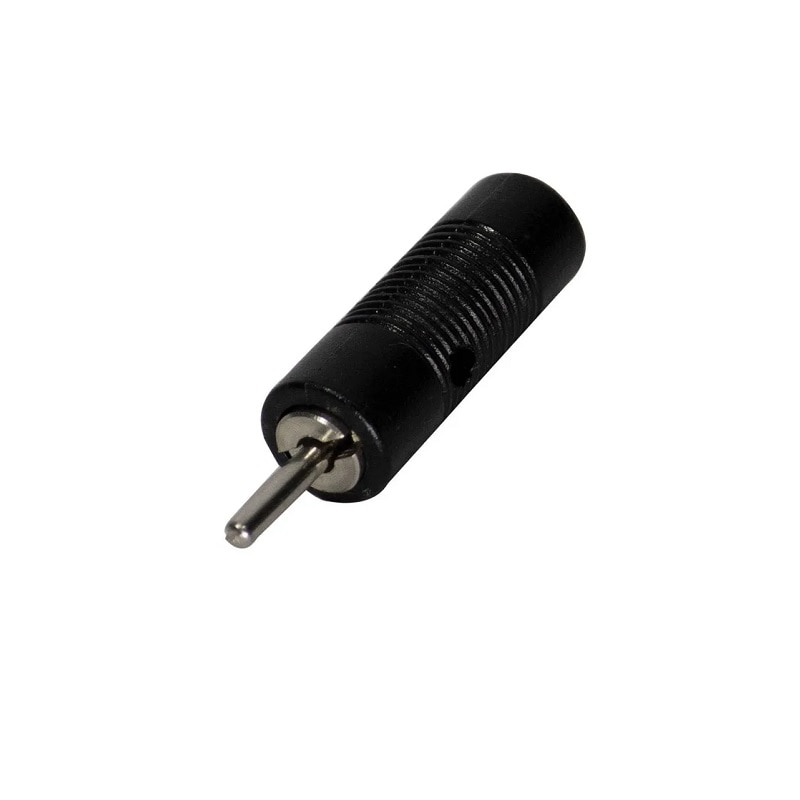

The BTP-2 2mm Banana Plug is a male banana connector designed for use with 2mm banana sockets such as BS-2. The manufacturer listing identifies the BTP-2 as a PRIME series plug rated at 5A/250V AC.

Parameter Specification

Product Name 2mm Banana Plug

Model / Part No. BTP-2

Series BTP-2

Brand PRIME

Connector Type Banana Plug / Male

Plug Diameter 2mm

Rated Current 5A

Rated Voltage 250V AC

Hand-Free Testing Up to 1000V

Body Material Nickel-Plated Brass

Spring Material Nickel-Plated Phosphor Bronze

Insulator Material ABS

Overall Length Approx. 33mm

Connection Type Wire/Solder connection

Standard Colours Red, Black, Green, Blue, Yellow

Typical Available Colours Red & Black

Compatible Socket 2mm Banana Socket / BS-2

Gender Male

Application Electrical & electronic testing

Product Category Banana Plug / Test Connector

The published BTP-2 specification lists a 33mm length, nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulator.

Key Features

Compact 2mm banana plug

Strong nickel-plated brass construction

Phosphor-bronze spring for reliable contact

ABS insulated body

Designed for secure connection with 2mm banana sockets

Suitable for test leads and electronic instruments

Available in multiple colours for polarity/circuit identification

Suitable for laboratory and electrical testing applications

Applications

Multimeters and test meters

Laboratory test equipment

DC power supplies

Electronic testing panels

Educational electronics projects

Test leads and measurement equipment

Electrical and instrumentation applications

Product Listing Description

BTP-2 2MM Banana Plug is a compact male banana connector designed for reliable electrical testing and measurement applications. It features a nickel-plated brass body, nickel-plated phosphor-bronze spring and ABS insulation, providing good mechanical strength and electrical contact. The plug has a 2mm diameter, approximately 33mm overall length, and is rated 5A/250V AC, with hand-free testing capability up to 1000V according to the published PRIME specification.

Suggested Switch Mart product title:

BTP-2 2MM Banana Plug – 5A 250V AC, Nickel Plated Brass, ABS Insulated
