BTI-15

The BTI-15 is a 15A panel-mount banana/binding post terminal designed for electrical testing, laboratory equipment, power supplies, control panels, and general electrical connections. The available technical documentation identifies the BTI-15 as a 15A, 250V AC panel-mount terminal with a 4 mm banana connection.

Technical Specifications

Specification BTI-15

Product Name BTI-15 Banana Terminal

Product Type Binding Post / Banana Terminal

Mounting Type Panel Mount

Mounting Position Front Panel

Connection Type Banana Socket / Binding Post

Banana Plug Size 4 mm

Current Rating 15 A

Voltage Rating 250 V AC

Terminal Type Screw Type

Contact Resistance ≤ 5 mΩ initial

Insulation Resistance ≥ 1000 MΩ @ 500 V DC

Dielectric Strength 2 kV AC for 1 minute

Panel Thickness Maximum 3.0 mm

Operating Temperature -20°C to +85°C

Body / Insulator Material Nylon or ABS / Polyamide

Terminal Material Brass

Terminal Plating Nickel Plated

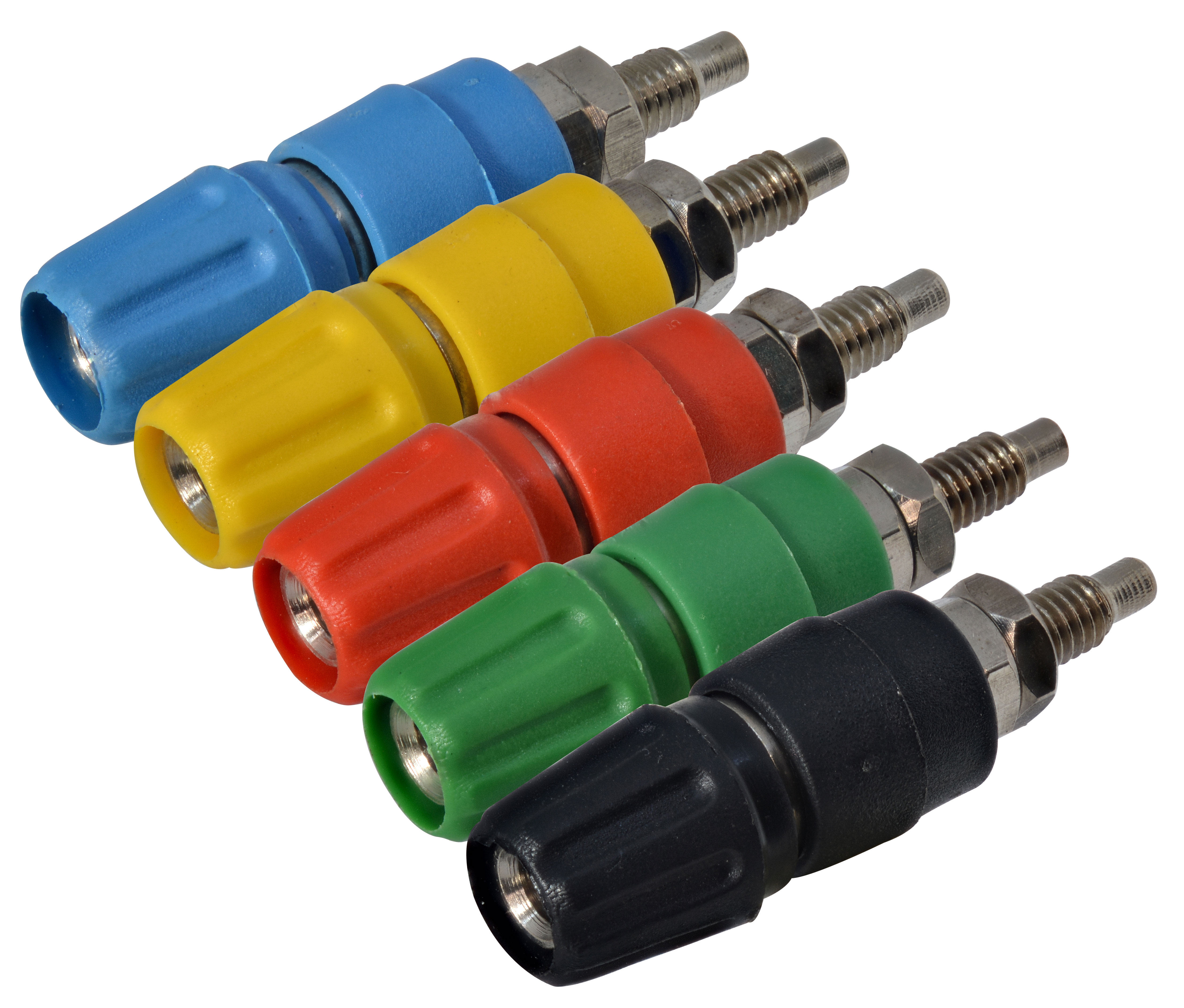

Available Colours Black, Red, Blue, Yellow, Green

Reference Standard JSS 52710

Approx. Product Weight Up to 12 g

Application Electrical & Electronic Equipment

Country of Origin India

These ratings and construction details are consistent with published BTI-series documentation and supplier specifications.

Dimensions

Published BTI-15 drawings indicate approximately:

Panel cut-out: Ø8.0 mm

Maximum body depth: approximately 28 mm

Minimum body depth: approximately 23 mm

Overall mounting/threaded section: according to the manufacturer's dimensional drawing

Banana connection: 4 mm

Panel mounting: front-entry design

The exact mechanical dimensions should be taken from the manufacturer's drawing for production or panel-cutout work.

Key Features

15 Ampere high-current binding terminal

4 mm banana socket compatibility

Panel-mount construction

Screw-type electrical connection

Brass current-carrying parts with nickel plating

Insulated coloured body

Low contact resistance

High insulation resistance

Suitable for front-panel mounting

Available in Black, Red, Blue, Yellow and Green

Suitable for repeated test and measurement connections

4

Applications

The BTI-15 can be used in:

Laboratory power supplies

Test and measurement equipment

Electrical testing panels

Electronic control panels

Audio and amplifier equipment

Power supply units

Educational electrical trainers

Industrial electrical equipment

Panel-mounted testing connections

Product listing description:

BTI-15 Banana Terminal 15A 250V AC, 4mm Panel Mount Binding Post – A durable panel-mount banana terminal featuring a screw-type connection, insulated body, brass nickel-plated current-carrying parts, and compatibility with 4 mm banana plugs. Available in multiple colours for easy polarity and circuit identification.
