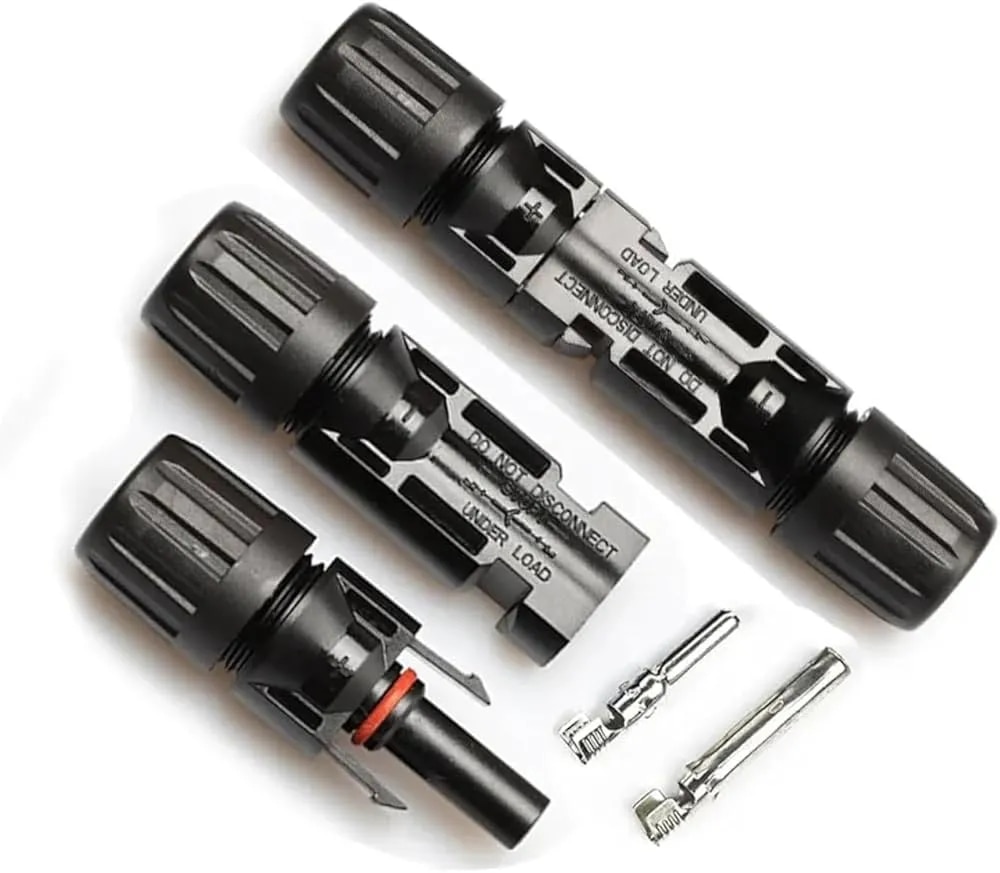

MC-4 CONNECTOR
Description
The MC4 Connector (Multi-Contact 4 mm Connector) is a waterproof, UV-resistant electrical connector specifically designed for photovoltaic (PV) solar systems. It provides a secure and reliable connection between solar panels and DC cables, ensuring low power loss and long-term performance in outdoor environments.
MC4 connectors consist of male and female connectors with locking mechanisms that prevent accidental disconnection and provide excellent protection against dust and water.
Technical Specifications
Parameter Specification
Product Name MC4 Solar Connector
Connector Type Male & Female Pair
Standard IEC 62852, TÜV Certified (Model Dependent)
Rated Voltage 1000V DC (IEC) / 1500V DC (UL, Model Dependent)
Rated Current 30A (Typical)
Contact Resistance ≤0.5 mΩ
Contact Material Tinned Copper
Insulation Material PPO (Polyphenylene Oxide)
Housing Material UV Resistant Thermoplastic
Protection Rating IP67 (Mated), IP2X (Unmated)
Flame Class UL94-V0
Cable Size 2.5 mm², 4 mm², 6 mm²
Contact Diameter 4 mm
Operating Temperature -40°C to +90°C
Locking System Snap Lock
Connection Method Crimp Type
Mating Cycles More than 500 Times
Features
Waterproof IP67 protection
UV-resistant housing for outdoor use
Low contact resistance for maximum efficiency
Secure locking mechanism
Easy crimp installation
High mechanical strength
Excellent corrosion resistance
Flame-retardant insulating material
Long service life
Compatible with most standard solar PV cables
Applications
Solar PV Modules
Rooftop Solar Systems
Solar Power Plants
Solar Street Lights
Solar Water Pumps
Off-Grid Solar Systems
Hybrid Solar Installations
Battery Storage Systems
DC Power Distribution
Renewable Energy Projects
Electrical Characteristics
Parameter Value
Rated Voltage Up to 1500V DC
Rated Current Up to 30A
Contact Resistance ≤0.5 mΩ
Insulation Resistance >1000 MΩ
Dielectric Withstand Voltage 6000V AC (Typical)
Mechanical Characteristics
Parameter Value
Cable Compatibility 2.5 / 4 / 6 mm²
Contact Type Crimp
Connector Gender Male & Female
Waterproof Rating IP67
Locking Method Snap Lock
Mating Cycles >500
Advantages
Reliable and secure electrical connection
Fast and easy installation
Suitable for harsh outdoor environments
Excellent resistance to UV rays, moisture, and dust
High current carrying capacity
Long operational life with minimal maintenance
Compatible with most photovoltaic modules and cables
Package Contents
1 × MC4 Male Connector
1 × MC4 Female Connector
2 × Crimp Metal Contacts
Industries Served
Solar Energy
Renewable Energy
Electrical Contractors
EPC Solar Projects
Industrial Automation
Residential Solar Installations
Commercial Solar Systems
