PHILIPS CABLE
Description

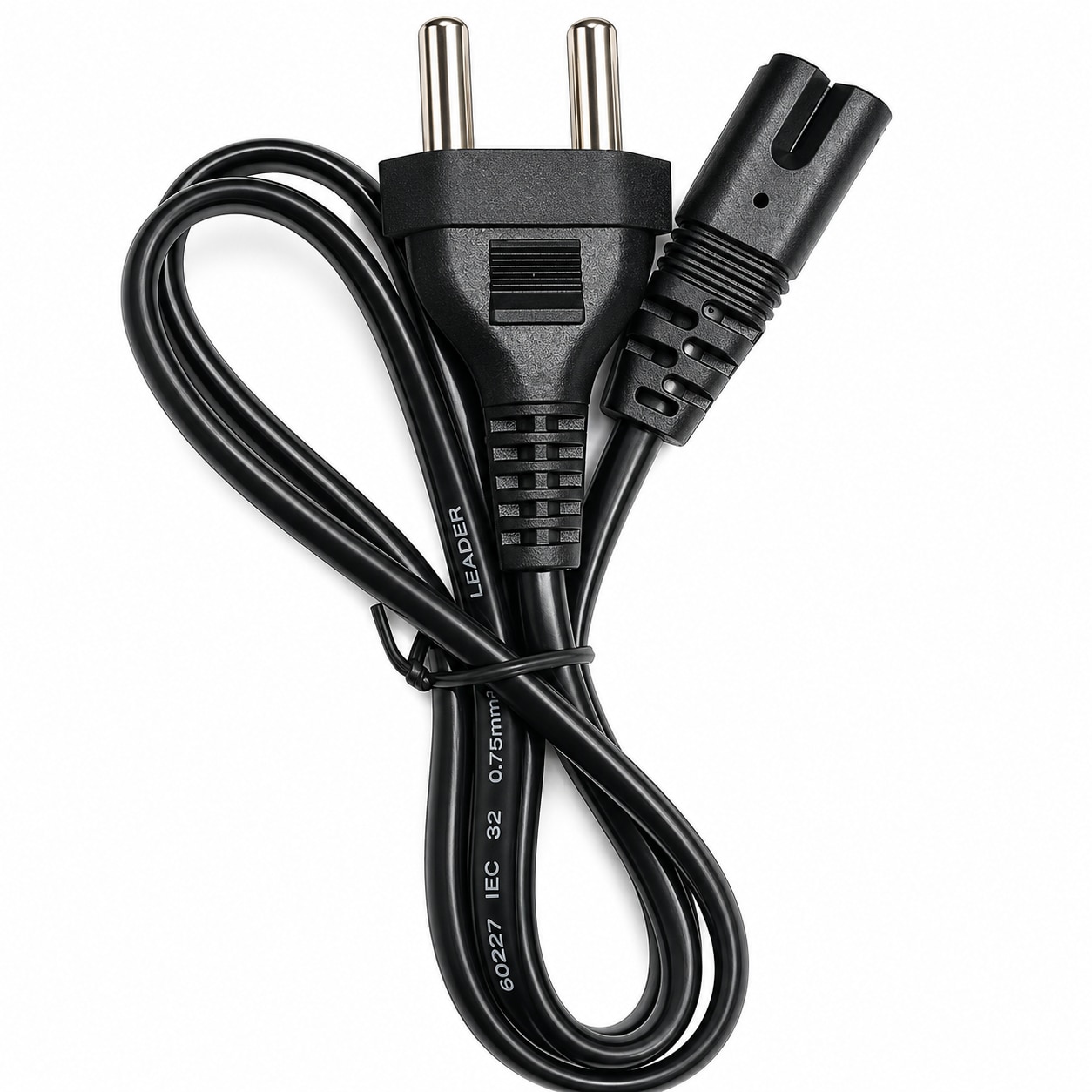

The Phillips Power Cable (2 Pin to IEC C7 Figure-8 Power Cord) is a high-quality AC mains cable designed to connect electronic devices to a standard power outlet. It features a 2-pin Indian mains plug on one end and an IEC 60320 C7 (Figure-8) connector on the other, making it ideal for Philips TVs, DVD players, radios, audio systems, gaming consoles, adapters, printers, and other compatible electronic devices.
Technical Specifications
Parameter Specification
Product Name Phillips Power Cable
Cable Type 2 Pin to IEC C7 (Figure-8) Power Cord
Connector A 2 Pin Indian AC Plug
Connector B IEC 60320 C7 Female (Figure-8)
Rated Voltage 250V AC
Rated Current 2.5A – 6A (Depending on cable specification)
Frequency 50/60 Hz
Cable Length 1.5 Meter (Standard)
Conductor Material Pure Copper
Conductor Size 2 × 0.75 sq.mm (Typical)
Cable Type Twin Core
Insulation Material PVC
Outer Jacket Black PVC
Plug Material Flame Retardant PVC
Pin Material Nickel-Plated Brass
Temperature Range -10°C to +70°C
Compliance IEC 60320 C7 / IS Standards (Model Dependent)
Features
High-quality pure copper conductor
Durable molded connectors
IEC C7 Figure-8 female connector
Flexible PVC insulated cable
Low power loss and stable performance
Heat-resistant construction
Excellent electrical conductivity
Strong strain relief for longer life
Plug-and-play installation
Lightweight and portable
Applications
Philips LED/LCD TVs
Philips Audio Systems
DVD & Blu-ray Players
Set-Top Boxes
FM Radios
Gaming Consoles
Laptop Power Adapters
Monitors
Printers
Home Entertainment Systems
Small Household Appliances
Electrical Ratings
Parameter Value
Operating Voltage 220–250V AC
Maximum Current Up to 6A
Frequency 50/60 Hz
Insulation Resistance ≥100 MΩ
Dielectric Strength 1500V AC (Typical)
Advantages
Safe and reliable power connection
Easy replacement for damaged power cords
High flexibility for convenient installation
Durable molded plug design
Long operational life
Corrosion-resistant connector pins
Suitable for home and commercial use
Package Contents
1 × Phillips 2 Pin to IEC C7 Figure-8 Power Cable
