ROTARY SWITCHES
Description

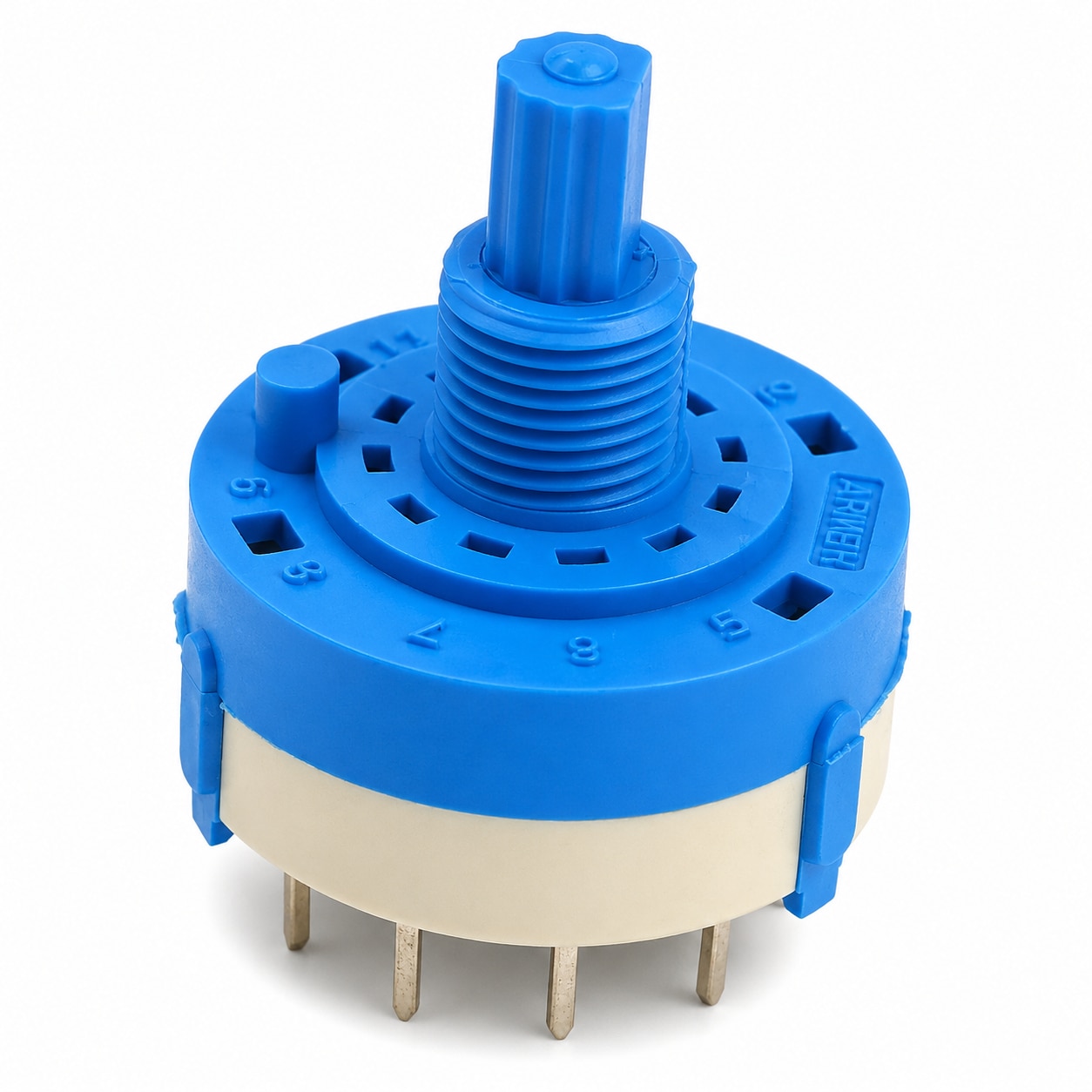

The 2 Pole 6 Way Rotary Switch (2P6T) is a multi-position electromechanical selector switch designed to control two independent circuits simultaneously across six selectable positions. It is widely used in industrial control panels, audio equipment, communication systems, instrumentation, and electronic projects requiring reliable multi-circuit switching.
Technical Specifications
Parameter Specification
Product Type Rotary Switch
Configuration 2 Pole 6 Way (2P6T)
Number of Positions 6 Positions
Number of Poles 2 Pole
Contact Arrangement 2P6T
Switching Type Break Before Make (Non-Shorting)
Mounting Type Panel Mount
Shaft Type Knurled Shaft
Shaft Material High Strength Plastic
Housing Material Engineering Thermoplastic
Contact Material Silver-Plated Copper Alloy
Terminal Type Solder Pins
Contact Resistance ≤ 20mΩ
Insulation Resistance ≥ 100MΩ at 500V DC
Dielectric Strength 1000V AC for 1 Minute
Rated Current 0.3A – 1A
Rated Voltage 125V AC / 250V AC
Mechanical Life 10,000+ Operations
Operating Temperature -20°C to +85°C
Mechanical Dimensions (Typical)
Dimension Value
Shaft Diameter 6mm
Shaft Length 20–25mm
Mounting Thread Diameter M10 x 0.75
Body Diameter 28–35mm
Overall Height 35–45mm
Weight Approx. 15–25g
Dimensions may vary slightly by manufacturer.
Features
Dual Pole, Six Position Switching
Compact and Robust Construction
Smooth Rotary Action
Long Mechanical Life
Low Contact Resistance
Easy Panel Mount Installation
High Reliability Electrical Contacts
Supplied with Lock Washer and Mounting Nut
Suitable for AC and DC Applications
Applications
Industrial Control Panels
Audio Amplifiers
Communication Equipment
Test & Measurement Instruments
Frequency Selectors
Signal Routing Systems
Power Control Circuits
Electronic Projects
Automation Equipment
Laboratory Instruments
Terminal Configuration
Pole A: Common terminal connected to one of six outputs.
Pole B: Common terminal connected to one of six outputs.
Position 1 → A1 & B1
Position 2 → A2 & B2
Position 3 → A3 & B3
Position 4 → A4 & B4
Position 5 → A5 & B5
Position 6 → A6 & B6
Advantages
✔ Controls two independent circuits simultaneously
✔ Six selectable positions
✔ Space-saving panel design
✔ Reliable switching performance
✔ Easy installation and wiring
✔ Suitable for industrial and commercial applications
