rocker switch

PBS-3 Round Power Push Button Switch is a latching ON/OFF switch with illuminated red actuator. It is commonly used for power control in electrical appliances, industrial panels, UPS systems, extension boards, and automation equipment. General Specifications Parameter Specification Product Name PBS-3 Power Push Button Switch Switch Type Push Button Power Switch Operation Type Latching ON/OFF Contact Configuration SPST Number of Pins 3 Pin Rated Voltage 250VAC Rated Current 16A Indicator Light Yes (Red LED/Neon) Mounting Type Panel Mount / Snap-In Button Color Red Body Color Black Housing Material Flame Retardant Plastic Contact Material Copper Alloy Terminal Type Solder / Quick Connect Electrical Life 50,000 Cycles Approx Insulation Resistance ≥100MΩ Contact Resistance ≤100mΩ Dielectric Strength 500V AC for 1 Minute Operating Temperature -25°C to +85°C Certification CE, CQC Mechanical Dimensions (Approx.) Dimension Size Mounting Hole Diameter 22mm Head Diameter 30mm Approx Overall Height 32mm Approx Terminal Length 6–8mm Pin Spacing Standard PCB/Solder Type Electrical Diagram Press Once → ON Press Again → OFF Illuminated indicator shows power status Features High current capacity up to 16A Built-in red illumination Easy snap-in panel installation Long mechanical life Compact round design Reliable ON/OFF locking mechanism Suitable for AC power applications Applications Power Supplies UPS Systems Home Appliances Industrial Control Panels Extension Boards Water Dispensers Audio Amplifiers Automation Equipment DIY Electronic Projects

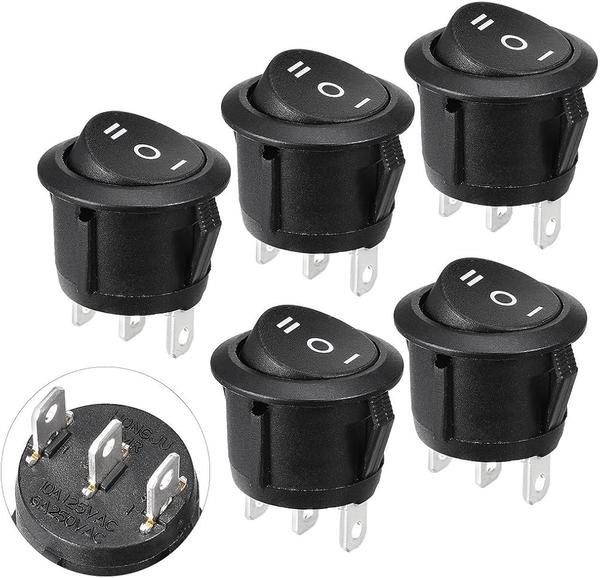

General Description Type: Round Rocker Switch (3 Position) Function: ON – OFF – ON (Center OFF) Marking: I – O – II Operation: Latching (maintained positions) Mounting: Panel Mount (Snap-in) ⚡ Electrical Specification Rated Voltage: 250V AC Rated Current: 6A @ 250V AC Alternative Rating: 10A @ 125V AC / DC Contact Type: SPDT (Single Pole Double Throw) Contact Resistance: ≤ 35–50 mΩ Insulation Resistance: ≥ 100 MΩ (500V DC) Dielectric Strength: 1500V AC / 1 min

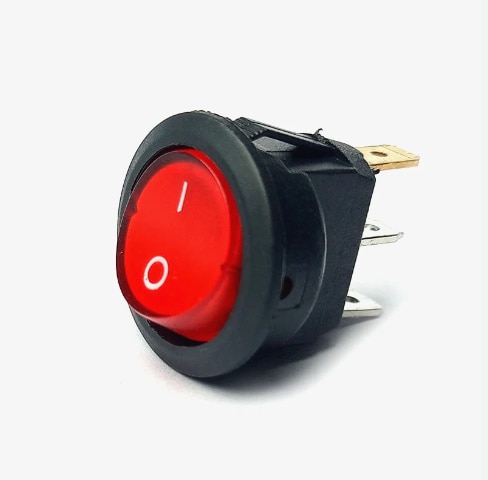

General Description Type: Illuminated Round Rocker Switch Model Series: KCD1 Operation: ON / OFF (Latching) Illumination: Red LED / Neon Indicator Mounting: Panel Mount (Snap-in) ⚡ Electrical Specification Rated Voltage: 250V AC Rated Current: 6A @ 250V AC Alternative Rating: 10A @ 125V AC Contact Type: SPST (ON/OFF) Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ 🔌 Pin Configuration (3-Pin) Pin 1 → Line Input (Phase) Pin 2 → Load Output Pin 3 → Neutral (for LED indicator) 👉 Indicator glows when switch is ON 👉 Some models use neon (AC only) or LED (AC/DC compatible)

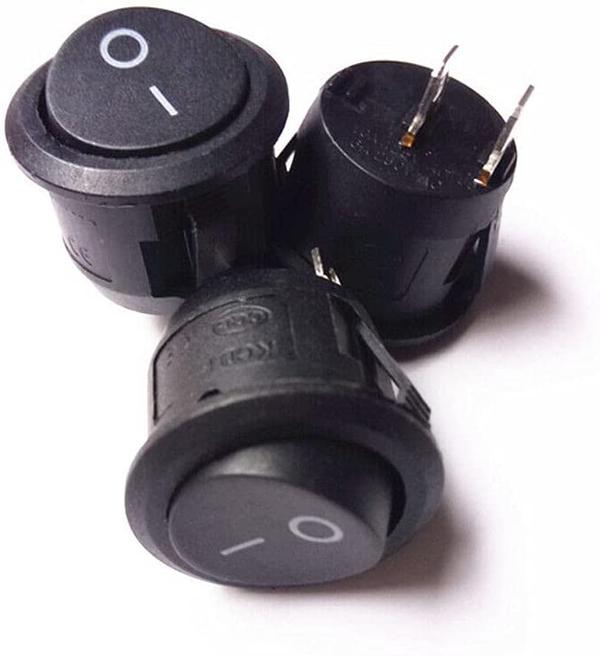

General Description Type: Round Rocker Switch Operation: ON / OFF (Latching) Mounting: Panel Mount (Snap-in type) Actuator Shape: Round (with “I / O” marking) ⚡ Electrical Specification Rated Voltage: 250V AC Rated Current: 6A @ 250V AC Alternative Rating: 10A @ 125V AC Contact Type: SPST (Single Pole Single Throw) Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ (at 500V DC)

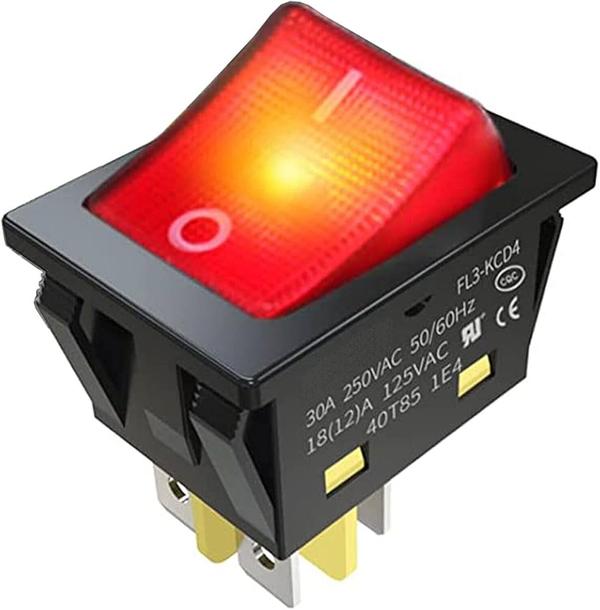

Type: Rocker Switch (Illuminated) Model: KCD2 / KCD4 Series (common standard) Operation: ON – OFF Poles: DPST (Double Pole Single Throw) Pins: 3 Pin / 4 Pin (depends on model) Mounting: Panel mount (snap-in type) ⚡ Electrical Specifications Rated Current: 30 Amps Rated Voltage: 12V DC (common for LED models) 220V–250V AC (heavy-duty models) Contact Resistance: ≤ 50mΩ Insulation Resistance: ≥ 100MΩ Dielectric Strength: ≥ 1500V AC / 5 sec 💡 Indicator Light Details Type: Built-in LED / Neon light Light Voltage: 12V DC (LED type) 220V AC (neon type) Light Colors: Red, Green, Blue, Yellow, White Function: Indicates ON/OFF status

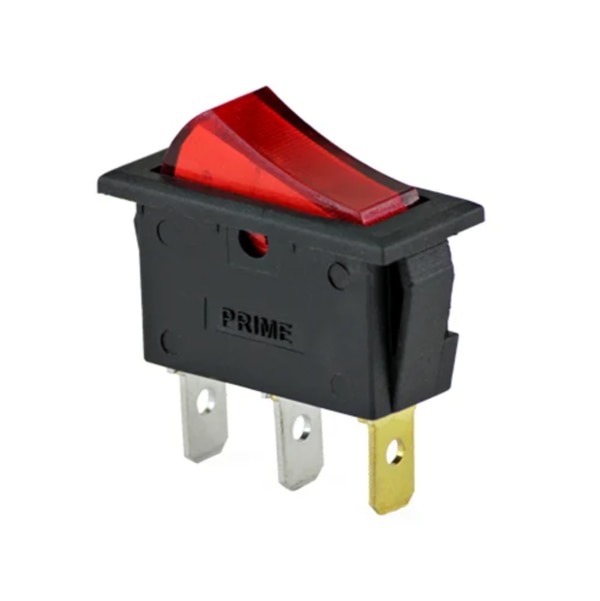

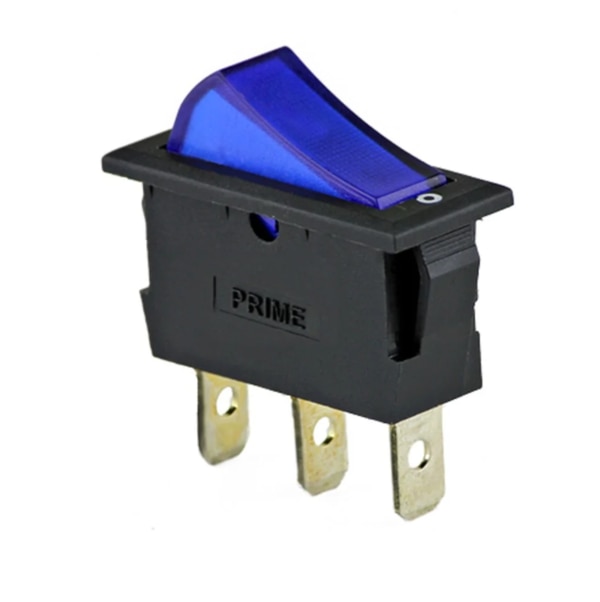

An Illuminated Rocker Switch is a highly functional and visually efficient electrical switch designed to provide both power control and status indication. Equipped with a built-in light source such as an LED or neon lamp, these switches clearly indicate whether a circuit is ON or OFF, making them ideal for applications where visibility and user convenience are essential. Widely used in industrial equipment, home appliances, automotive systems, and control panels, illuminated rocker switches combine performance, safety, and modern design. What is an Illuminated Rocker Switch? An illuminated rocker switch operates like a standard rocker switch but includes an integrated lighting element that glows when the switch is activated (and sometimes when it is off, depending on the wiring). The rocker mechanism allows users to press one side to turn the circuit ON and the other side to turn it OFF. The illumination feature enhances usability by providing clear visual feedback, especially in low-light or complex environments. These switches are typically constructed using high-quality plastic housings and durable internal contacts to ensure long-lasting and reliable operation. Key Features of Illuminated Rocker Switch 1. Built-in Illumination Comes with LED or neon lighting for clear visibility of switch status. 2. User-Friendly Operation Simple ON/OFF rocker mechanism ensures easy and smooth operation. 3. Durable Construction Manufactured using flame-retardant thermoplastic materials for safety and longevity. 4. Wide Electrical Ratings Suitable for various voltage and current applications, from low-power electronics to industrial systems. 5. Panel Mount Design Easy snap-in or screw mounting for quick installation in panels and enclosures. 6. Multiple Configurations Available in: SPST (Single Pole Single Throw) SPDT (Single Pole Double Throw) DPST (Double Pole Single Throw) DPDT (Double Pole Double Throw) 7. Variety of Colors and Styles Available in different illumination colors such as red, green, blue, and amber for different indications. Types of Illuminated Rocker Switch ON/OFF Illuminated Rocker Switch Basic switch with light indication when the circuit is active. ON/OFF/ON Illuminated Rocker Switch Allows switching between two circuits with illumination support. DPST Illuminated Rocker Switch Controls two circuits simultaneously with light indication. Waterproof Illuminated Rocker Switch Designed for outdoor and harsh environments with protective sealing. Applications of Illuminated Rocker Switch Illuminated rocker switches are widely used across various industries where visibility and control are critical: Home Appliances – Refrigerators, washing machines, microwave ovens Industrial Equipment – Control panels, machinery, automation systems Automotive Industry – Dashboard switches, lighting controls Power Systems – UPS, inverters, power distribution units Consumer Electronics – Power strips, audio systems, gaming setups Medical Equipment – Diagnostic and control devices Marine Applications – Navigation and lighting systems Advantages of Illuminated Rocker Switch Clear visual indication of ON/OFF status Enhanced safety and user convenience Easy identification in low-light environments Durable and long-lasting performance Wide range of designs and configurations Suitable for both residential and industrial use Why Choose an Illuminated Rocker Switch? An illuminated rocker switch is the perfect choice when you need both functionality and visibility in your electrical system. The built-in light ensures that users can easily identify whether a device is powered, reducing errors and improving safety. Its durable design and reliable performance make it suitable for demanding environments, from household appliances to industrial machinery. SEO Keywords Illuminated Rocker Switch, LED Rocker Switch, Lighted Rocker Switch, ON OFF Illuminated Switch, Panel Mount Rocker Switch, Industrial Rocker Switch, Waterproof Rocker Switch, DPST Rocker Switch, SPST Rocker Switch, Power Rocker Switch, Rocker Switch Manufacturer India, LED Power Switch, Electrical Rocker Switch Conclusion The Illuminated Rocker Switch is an advanced and essential component in modern electrical systems, offering both control and visibility. Its ability to provide real-time status indication, combined with robust construction and versatile applications, makes it a preferred choice for engineers, manufacturers, and users alike. Whether for residential, commercial, or industrial use, illuminated rocker switches deliver reliable and efficient performance.

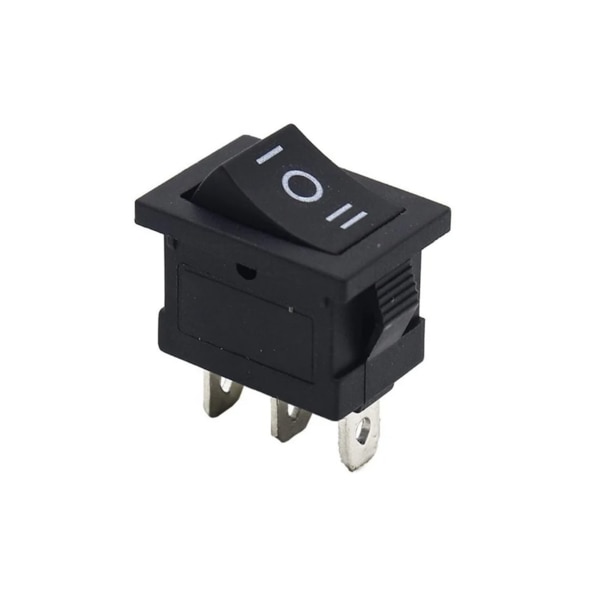

A Mini C-OFF Rocker Switch is a compact and versatile electrical switch designed with a center OFF (neutral) position, allowing safe and efficient control between two circuits. Commonly known as a Mini ON-OFF-ON Rocker Switch, it is widely used in applications where space is limited but multi-function control is required. Its small size, durable construction, and reliable performance make it ideal for modern electronic devices, automotive systems, and industrial control panels. What is a Mini C-OFF Rocker Switch? A mini C-OFF rocker switch is a small-sized electrical switch that operates in three positions: ON (Position 1) – Activates the first circuit OFF (Center Position) – Disconnects all circuits ON (Position 2) – Activates the second circuit This center OFF design ensures safe switching between two functions without overlap, preventing electrical faults or short circuits. Despite its compact size, the switch is engineered to deliver consistent performance and long operational life. Key Features of Mini C-OFF Rocker Switch 1. Compact Size Designed for space-saving applications where standard switches cannot fit. 2. Center OFF Functionality Provides a neutral position for safe switching between two circuits. 3. Durable Construction Manufactured using high-quality thermoplastic materials for heat resistance and longevity. 4. Smooth Rocker Operation Offers easy and precise control with a responsive rocking mechanism. 5. Panel Mount Design Simple snap-in installation for quick integration into panels and enclosures. 6. Multiple Configurations Available in configurations such as: SPDT (Single Pole Double Throw) DPDT (Double Pole Double Throw) 7. Optional Illumination Some variants include LED indicators for better visibility. Types of Mini C-OFF Rocker Switch SPDT Mini C-OFF Rocker Switch Controls one circuit with two selectable outputs and a center OFF position. DPDT Mini C-OFF Rocker Switch Controls two circuits simultaneously, ideal for reversing polarity or motor direction. Illuminated Mini C-OFF Rocker Switch Includes LED lighting for status indication. Waterproof Mini C-OFF Rocker Switch Sealed design for protection against moisture and dust. Applications of Mini C-OFF Rocker Switch Mini C-OFF rocker switches are widely used in applications requiring compact and dual control functionality: Consumer Electronics – Audio systems, gadgets, and portable devices Automotive Industry – Dashboard controls, accessory switching Industrial Equipment – Control panels and compact machinery DIY & Electronics Projects – Circuit selection and testing Medical Devices – Small control units Marine Applications – Navigation and control systems Advantages of Mini C-OFF Rocker Switch Space-saving design for compact devices Safe switching with center OFF position Prevents circuit overlap and electrical faults Reliable performance with long service life Easy installation and maintenance Suitable for multiple applications Why Choose a Mini C-OFF Rocker Switch? A mini C-OFF rocker switch is the perfect solution when you need precise control in limited space. Its center OFF feature ensures safe and flexible switching between two functions, making it ideal for applications like motor direction control, signal switching, and multi-function devices. With its durable design and efficient operation, this switch offers long-term reliability and performance. SEO Keywords Mini C OFF Rocker Switch, Mini Center OFF Switch, ON OFF ON Mini Rocker Switch, SPDT Rocker Switch, DPDT Rocker Switch, Compact Rocker Switch, Electrical Rocker Switch, Panel Mount Mini Switch, Waterproof Mini Rocker Switch, LED Rocker Switch, Rocker Switch Manufacturer India, Small Multi Position Switch Conclusion The Mini C-OFF Rocker Switch is an essential component for compact and multi-functional electrical systems. Its center OFF functionality, small size, and durable construction make it a preferred choice for engineers, manufacturers, and hobbyists. Whether used in consumer electronics or industrial applications, this switch provides safe, efficient, and reliable performance.

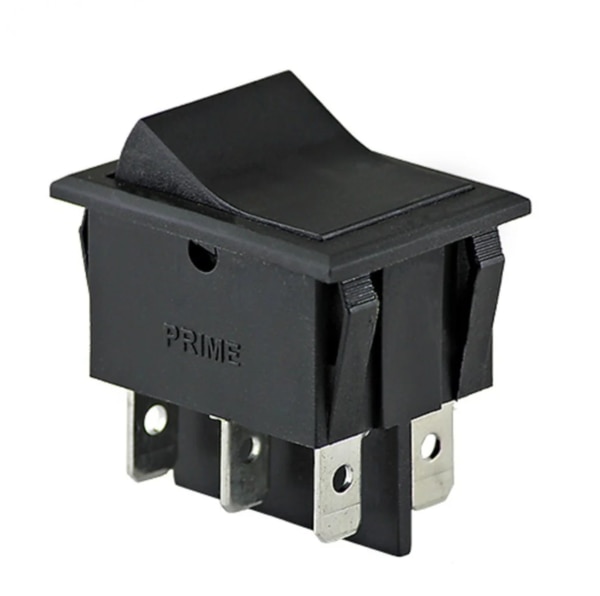

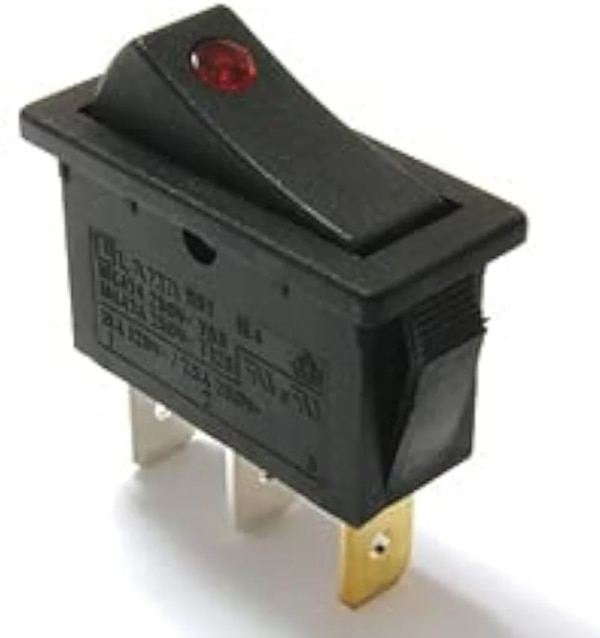

A Power Rocker Switch is a robust and reliable electrical switching device used to control the main power supply in a wide range of electrical and electronic equipment. Designed for durability and ease of use, power rocker switches are commonly found in appliances, industrial machines, power distribution units, and electronic devices. With a simple rocking mechanism and strong internal contacts, these switches ensure safe and efficient power control in both residential and commercial applications. What is a Power Rocker Switch? A power rocker switch is an ON/OFF electrical switch that operates by rocking a button to open or close a circuit. When pressed on one side, it allows current to flow (ON), and when pressed on the other side, it interrupts the current (OFF). These switches are specifically designed to handle power circuits, making them suitable for higher voltage and current applications compared to standard signal switches. Typically constructed using flame-retardant plastic housing and high-quality metal contacts, power rocker switches provide excellent insulation, heat resistance, and long-lasting performance. Key Features of Power Rocker Switch 1. High Power Handling Capacity Designed to handle higher voltage and current loads, making them ideal for power control applications. 2. Durable Construction Made from high-quality thermoplastic materials and heavy-duty internal contacts for extended lifespan. 3. Easy Rocker Operation Simple ON/OFF functionality with smooth tactile feedback ensures user-friendly operation. 4. Panel Mount Design Quick and secure installation in panels, enclosures, and equipment housings. 5. Safety and Reliability Provides safe power switching with minimal risk of electrical faults. 6. Available in Multiple Configurations Power rocker switches are available in: SPST (Single Pole Single Throw) SPDT (Single Pole Double Throw) DPST (Double Pole Single Throw) DPDT (Double Pole Double Throw) 7. Optional Illumination Available with LED or neon indicators to show power status. Types of Power Rocker Switch Standard Power Rocker Switch Basic ON/OFF switch for general power control. Illuminated Power Rocker Switch Includes LED or neon light for clear indication of power status. Heavy-Duty Power Rocker Switch Designed for industrial and high-load applications. Waterproof Power Rocker Switch Sealed for protection against dust, moisture, and harsh environments. Applications of Power Rocker Switch Power rocker switches are widely used across various industries due to their versatility and reliability: Home Appliances – Refrigerators, washing machines, microwave ovens Industrial Equipment – Control panels, machinery, and automation systems Power Supply Units – UPS, inverters, and stabilizers Consumer Electronics – Power strips, audio systems, and devices Automotive Industry – Dashboard controls and auxiliary power systems Medical Equipment – Electrical control systems IT & Data Centers – Power distribution units and server equipment Advantages of Power Rocker Switch Reliable power control for high-load applications Long operational life with consistent performance Easy installation and maintenance Cost-effective solution for power switching Available in multiple designs and ratings Suitable for both residential and industrial use Why Choose a Power Rocker Switch? A power rocker switch is the ideal choice for applications that require safe, efficient, and durable power control. Its ability to handle high electrical loads while maintaining consistent performance makes it a preferred option for engineers and manufacturers. Whether used in household appliances or industrial systems, these switches provide dependable operation and enhanced safety. SEO Keywords Power Rocker Switch, Electrical Power Switch, ON OFF Power Switch, Heavy Duty Rocker Switch, Industrial Rocker Switch, Panel Mount Power Switch, Illuminated Rocker Switch, Waterproof Rocker Switch, DPST Rocker Switch, SPST Rocker Switch, Power Switch Manufacturer India, High Current Rocker Switch, Rocker Switch for UPS, Inverter Power Switch Conclusion The Power Rocker Switch is a vital component in modern electrical systems, offering reliable and efficient control of power circuits. With its durable construction, easy operation, and wide range of applications, it stands out as a dependable solution for both everyday and industrial use. Choosing a high-quality power rocker switch ensures safety, performance, and long-term reliability.

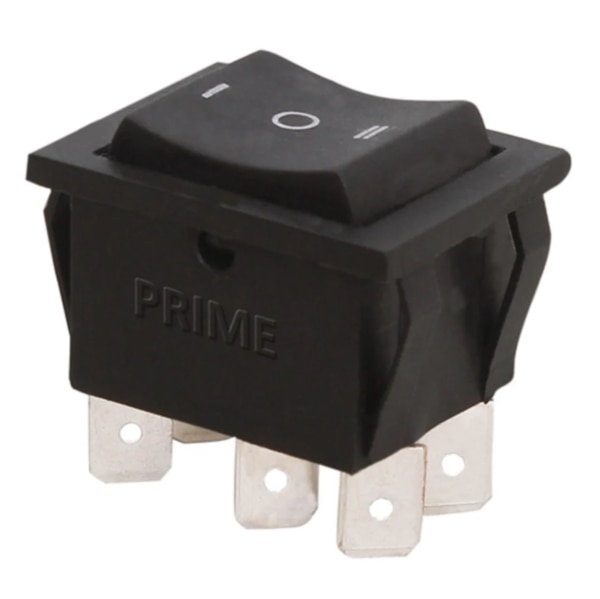

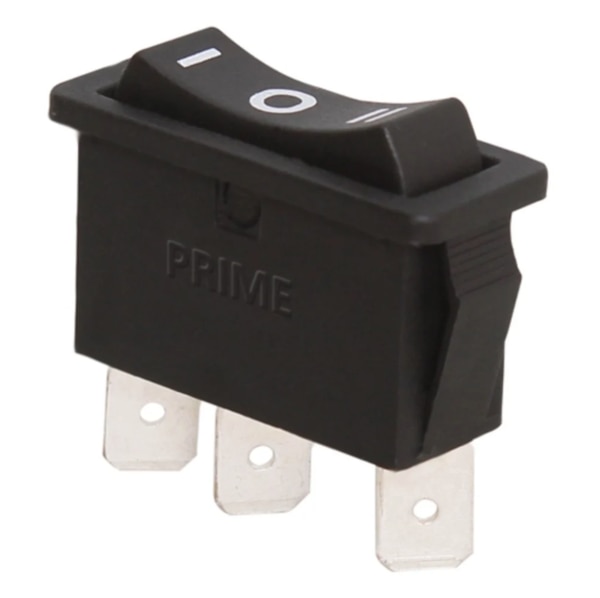

A C-OFF Rocker Switch is a specialized electrical switch designed with a center OFF position, allowing precise control over electrical circuits. Commonly referred to as a Center-Off Rocker Switch, this type of switch is widely used in applications where switching between two circuits or directions is required with a neutral OFF state in between. Its reliable performance, durable construction, and versatile functionality make it an essential component in industrial, automotive, and electronic systems. What is a C-OFF Rocker Switch? A C-OFF rocker switch (Center OFF rocker switch) is a multi-position switch that typically operates in an ON-OFF-ON configuration. It features three positions: First Position (ON) – Activates one circuit Middle Position (OFF) – Disconnects all circuits Third Position (ON) – Activates an alternate circuit This design ensures safe switching between two operations without direct overlap, reducing the risk of electrical faults or equipment damage. Key Features of C-OFF Rocker Switch 1. Center OFF Functionality Provides a neutral OFF position between two ON states for better control and safety. 2. Dual Circuit Control Allows switching between two different circuits or functions using a single switch. 3. Durable Construction Made with high-quality thermoplastic housing and strong internal contacts for long life. 4. Smooth Rocker Operation Easy-to-use rocking mechanism with clear tactile feedback. 5. Panel Mount Design Quick and secure installation in control panels, dashboards, and equipment enclosures. 6. Wide Electrical Ratings Available for both low and high voltage/current applications. 7. Optional Illumination Some variants include LED or neon indicators for status visibility. Types of C-OFF Rocker Switch ON-OFF-ON Rocker Switch Standard configuration for switching between two circuits with a center OFF position. DPDT Center-Off Rocker Switch Controls two circuits simultaneously with a center OFF state, ideal for reversing polarity or motor direction. Illuminated C-OFF Rocker Switch Includes lighting for better visibility in low-light environments. Waterproof C-OFF Rocker Switch Designed with sealing protection for outdoor and harsh conditions. Applications of C-OFF Rocker Switch C-OFF rocker switches are widely used in applications requiring directional or dual control: Industrial Machinery – Motor forward/reverse control Automotive Systems – Window controls, lighting selection Electrical Panels – Circuit selection and control Home Appliances – Multi-function devices Marine Equipment – Navigation and control systems DIY Electronics Projects – Circuit switching and testing Advantages of C-OFF Rocker Switch Safe switching between two circuits Prevents accidental short circuits or overlap Versatile and multi-functional design Long service life with reliable performance Easy installation and operation Suitable for a wide range of industries Why Choose a C-OFF Rocker Switch? A C-OFF rocker switch is the ideal solution when you need controlled switching between two operations with a neutral state. Its center OFF position enhances safety and flexibility, making it perfect for applications like motor direction control, circuit selection, and multi-function devices. With its robust design and efficient operation, this switch ensures long-lasting and dependable performance.

A UPS Rocker Switch is a specialized electrical switching component designed for use in Uninterruptible Power Supply (UPS) systems and power backup equipment. Built for reliability, safety, and long operational life, these switches ensure smooth control of power flow in critical applications where uninterrupted electricity is essential. With a robust design and high electrical endurance, UPS rocker switches are widely used in inverters, battery backup systems, stabilizers, and power distribution units. What is a UPS Rocker Switch? A UPS rocker switch is a type of rocker switch specifically engineered to handle the power requirements and operational demands of UPS systems. It allows users to turn the UPS unit ON or OFF safely by rocking the switch between two positions. In many cases, these switches are designed to control both input and output power lines, ensuring complete circuit isolation. These switches are typically made from high-quality flame-retardant plastic and feature durable internal contacts to withstand frequent switching and high current loads. Key Features of UPS Rocker Switch 1. High Load Capacity Designed to handle higher voltage and current levels required in UPS and inverter systems. 2. Durable Construction Manufactured with flame-resistant thermoplastic materials for enhanced safety and long life. 3. Smooth Rocker Mechanism Provides easy and reliable ON/OFF operation with clear tactile feedback. 4. Panel Mount Design Easy to install in UPS cabinets, inverter housings, and electrical panels. 5. Enhanced Safety Ensures proper isolation of electrical circuits, reducing the risk of short circuits and electrical hazards. 6. Long Electrical Life Capable of thousands of switching cycles without performance degradation. 7. Optional Illumination Available in illuminated versions for power status indication in UPS systems. Types of UPS Rocker Switches Standard UPS Rocker Switch Basic ON/OFF switch for controlling UPS power supply. Illuminated UPS Rocker Switch Equipped with LED or neon light to indicate power status. Heavy-Duty UPS Rocker Switch Designed for high-capacity UPS systems and industrial power backup units. DPST UPS Rocker Switch Controls both live and neutral lines simultaneously for enhanced safety. Applications of UPS Rocker Switch UPS rocker switches are widely used in applications where reliable power control is critical: Uninterruptible Power Supply (UPS) Systems – Main power control Inverters & Battery Backup Systems – Switching power flow Power Distribution Units (PDU) – Electrical management Stabilizers & Voltage Regulators – Control circuits Industrial Backup Systems – Heavy-duty power applications Data Centers & IT Equipment – Reliable power switching Home Power Backup Systems – Residential inverter units Advantages of UPS Rocker Switch Reliable performance in critical power systems High durability under continuous operation Safe switching with proper circuit isolation Easy installation and maintenance Suitable for both residential and industrial UPS systems Available in multiple ratings and configurations Why Choose a UPS Rocker Switch? A UPS rocker switch is essential for ensuring safe and efficient control of backup power systems. Since UPS systems are used in critical environments such as hospitals, data centers, and industrial setups, the quality and reliability of the switch play a crucial role. These switches are specifically designed to handle fluctuating loads and provide consistent performance, making them a dependable choice for power management. SEO Keywords UPS Rocker Switch, Rocker Switch for UPS, Inverter Rocker Switch, Power Backup Switch, Heavy Duty Rocker Switch, DPST Rocker Switch, Illuminated Rocker Switch, Electrical Rocker Switch, Panel Mount Rocker Switch, Industrial Rocker Switch, UPS Switch Manufacturer India, Power Control Switch, High Current Rocker Switch Conclusion The UPS Rocker Switch is a vital component in modern power backup systems, offering reliability, safety, and efficient performance. Its robust construction and ability to handle high electrical loads make it suitable for a wide range of UPS and inverter applications. Whether for residential use or industrial setups, choosing a high-quality UPS rocker switch ensures uninterrupted and safe power control.

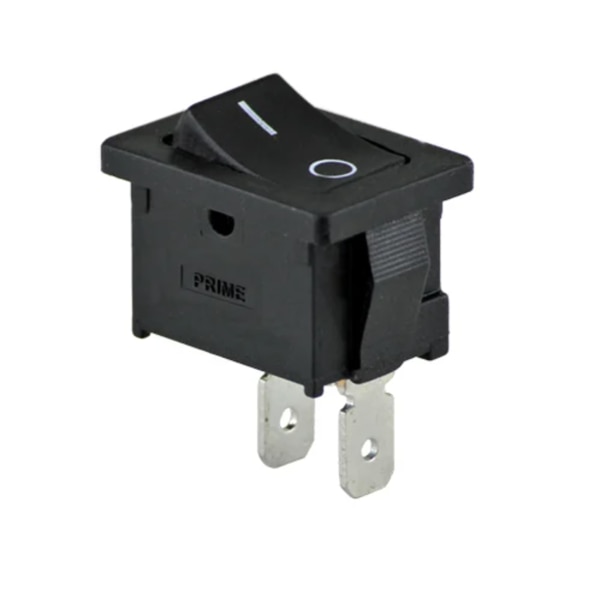

A Standard Rocker Switch is one of the most commonly used electrical switching devices, designed to provide reliable ON/OFF control in a wide range of applications. Known for its durability, ease of use, and versatile functionality, the standard rocker switch is widely utilized in residential, commercial, and industrial environments. With its simple rocking mechanism and robust construction, it offers consistent performance and long operational life. What is a Standard Rocker Switch? A standard rocker switch is an electrical switch that operates by rocking a button back and forth to open or close an electrical circuit. Pressing one side of the switch turns the circuit ON, while pressing the opposite side turns it OFF. This intuitive design makes it easy to operate, even in demanding environments. Typically housed in high-quality plastic or thermoplastic materials, standard rocker switches provide excellent insulation, resistance to heat, and protection against wear and tear. These switches are available in multiple configurations and sizes, making them suitable for a variety of electrical systems. Key Features of Standard Rocker Switch 1. User-Friendly Operation The rocker mechanism allows smooth and effortless switching between ON and OFF positions. 2. Durable Construction Manufactured using premium-grade plastic and metal contacts for long-lasting performance. 3. Wide Electrical Ratings Capable of handling various voltage and current ratings, from low-power electronics to heavy-duty equipment. 4. Easy Installation Designed for quick panel mounting with snap-in or screw-fit options. 5. Multiple Configurations Available in different types such as: SPST (Single Pole Single Throw) SPDT (Single Pole Double Throw) DPST (Double Pole Single Throw) DPDT (Double Pole Double Throw) 6. Optional Illumination Can be available in illuminated or non-illuminated versions depending on application needs. 7. Compact and Versatile Design Suitable for a wide range of applications due to its adaptable size and structure. Types of Standard Rocker Switches ON/OFF Rocker Switch Basic switch used for simple power control. ON/OFF/ON Rocker Switch Allows switching between two circuits with an intermediate OFF position. Illuminated Rocker Switch Includes LED or neon light for status indication. Waterproof Rocker Switch Sealed design for protection against moisture and dust. Heavy-Duty Rocker Switch Designed for high current and industrial applications. Applications of Standard Rocker Switch Standard rocker switches are widely used across multiple industries due to their versatility and reliability: Home Appliances – Fans, heaters, mixers, and kitchen equipment Consumer Electronics – Power strips, speakers, and electronic devices Industrial Equipment – Control panels and machinery Automotive Industry – Dashboard switches and accessory controls Power Tools – Drills, grinders, and cutting machines Electrical Panels – Distribution boards and control systems Advantages of Standard Rocker Switch Simple and intuitive operation High durability and long service life Cost-effective switching solution Available in a wide range of specifications Easy installation and maintenance Suitable for both low and high power applications Why Choose a Standard Rocker Switch? A standard rocker switch is the ideal choice for applications that require reliable, efficient, and easy-to-use switching solutions. Its robust design ensures consistent performance even in demanding environments, while its versatility allows it to be used across various industries. Whether for household appliances or industrial machinery, this switch offers excellent value and dependability. SEO Keywords Standard Rocker Switch, Electrical Rocker Switch, ON OFF Rocker Switch, Panel Mount Rocker Switch, Industrial Rocker Switch, Heavy Duty Rocker Switch, Waterproof Rocker Switch, LED Rocker Switch, SPST Rocker Switch, SPDT Rocker Switch, DPST Rocker Switch, Rocker Switch Manufacturer India, Power Rocker Switch, Durable Rocker Switch Conclusion The Standard Rocker Switch is a fundamental component in modern electrical systems, offering durability, versatility, and ease of use. Its wide range of applications and configurations make it a preferred choice for manufacturers, engineers, and technicians. If you are looking for a dependable and cost-effective switching solution, a standard rocker switch is the perfect option.
