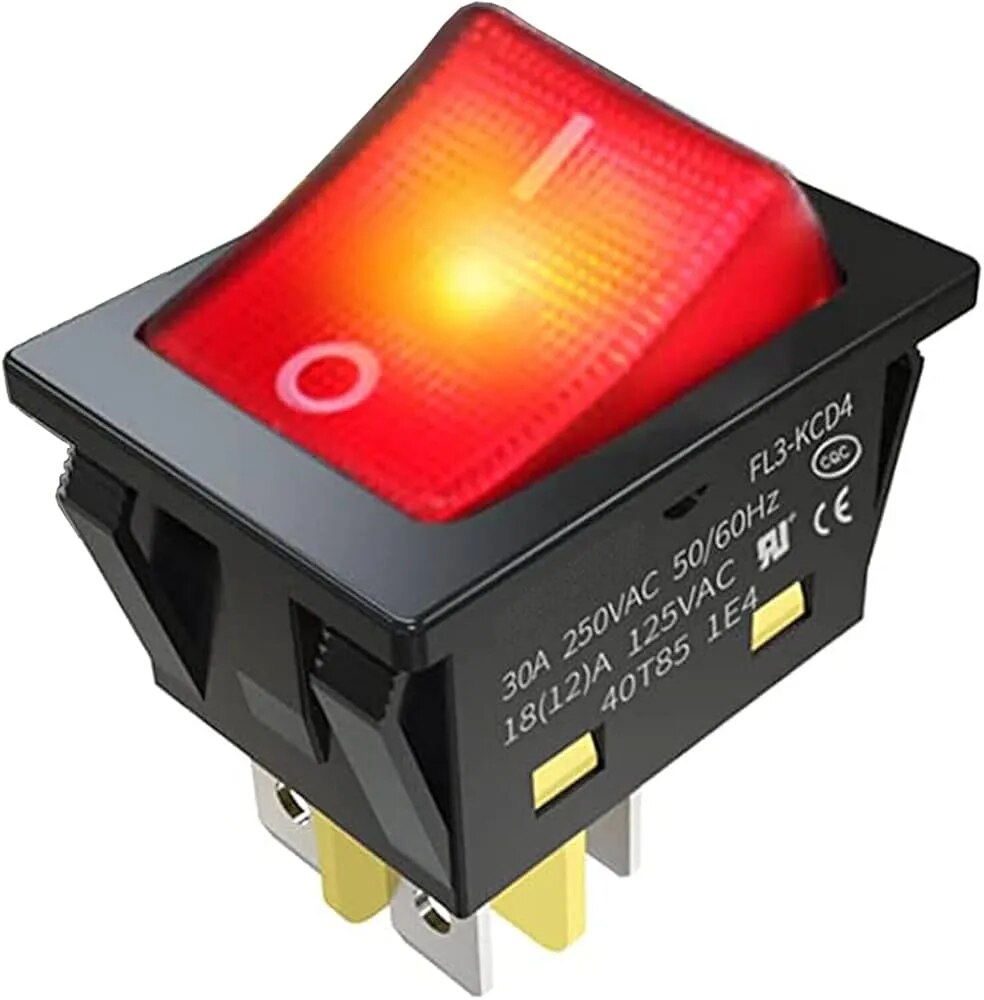

30A ROCKER SWITCH
In stock
Description
Type: Rocker Switch (Illuminated)
Model: KCD2 / KCD4 Series (common standard)
Operation: ON – OFF
Poles: DPST (Double Pole Single Throw)
Pins: 3 Pin / 4 Pin (depends on model)
Mounting: Panel mount (snap-in type)
⚡ Electrical Specifications
Rated Current: 30 Amps
Rated Voltage:
12V DC (common for LED models)
220V–250V AC (heavy-duty models)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
Dielectric Strength: ≥ 1500V AC / 5 sec
💡 Indicator Light Details
Type: Built-in LED / Neon light
Light Voltage:
12V DC (LED type)
220V AC (neon type)
Light Colors: Red, Green, Blue, Yellow, White
Function: Indicates ON/OFF status
