POWER SWITCH
Description

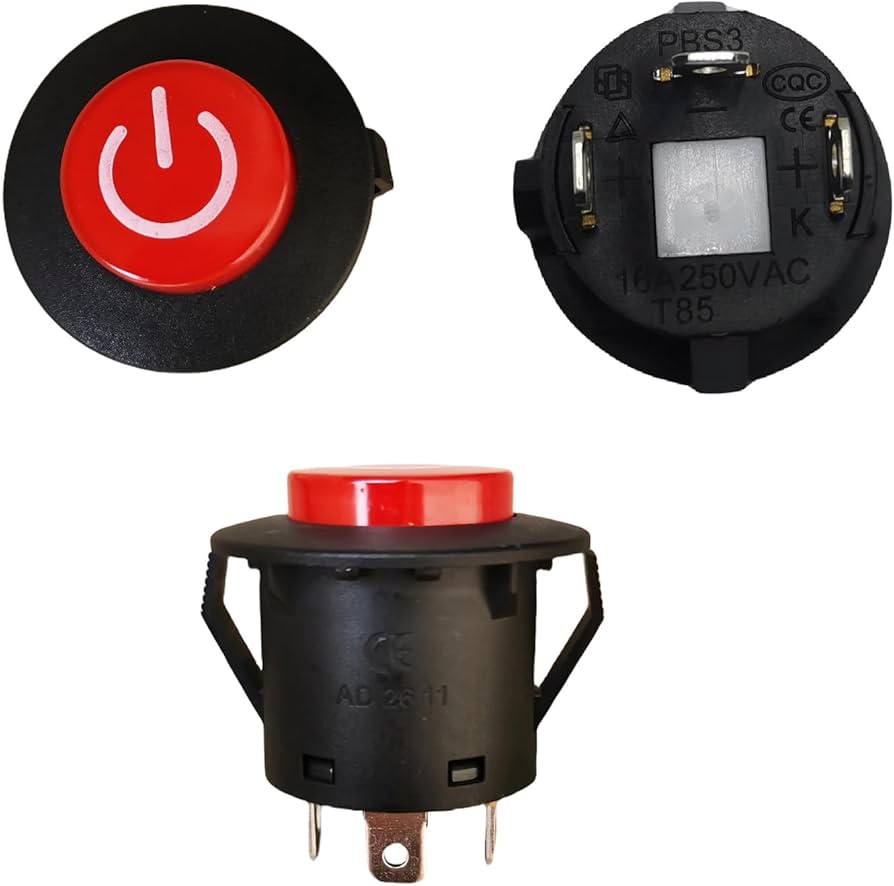

PBS-3 Round Power Push Button Switch is a latching ON/OFF switch with illuminated red actuator. It is commonly used for power control in electrical appliances, industrial panels, UPS systems, extension boards, and automation equipment.
General Specifications
Parameter Specification
Product Name PBS-3 Power Push Button Switch
Switch Type Push Button Power Switch
Operation Type Latching ON/OFF
Contact Configuration SPST
Number of Pins 3 Pin
Rated Voltage 250VAC
Rated Current 16A
Indicator Light Yes (Red LED/Neon)
Mounting Type Panel Mount / Snap-In
Button Color Red
Body Color Black
Housing Material Flame Retardant Plastic
Contact Material Copper Alloy
Terminal Type Solder / Quick Connect
Electrical Life 50,000 Cycles Approx
Insulation Resistance ≥100MΩ
Contact Resistance ≤100mΩ
Dielectric Strength 500V AC for 1 Minute
Operating Temperature -25°C to +85°C
Certification CE, CQC
Mechanical Dimensions (Approx.)
Dimension Size
Mounting Hole Diameter 22mm
Head Diameter 30mm Approx
Overall Height 32mm Approx
Terminal Length 6–8mm
Pin Spacing Standard PCB/Solder Type
Electrical Diagram
Press Once → ON
Press Again → OFF
Illuminated indicator shows power status
Features
High current capacity up to 16A
Built-in red illumination
Easy snap-in panel installation
Long mechanical life
Compact round design
Reliable ON/OFF locking mechanism
Suitable for AC power applications
Applications
Power Supplies
UPS Systems
Home Appliances
Industrial Control Panels
Extension Boards
Water Dispensers
Audio Amplifiers
Automation Equipment
DIY Electronic Projects
