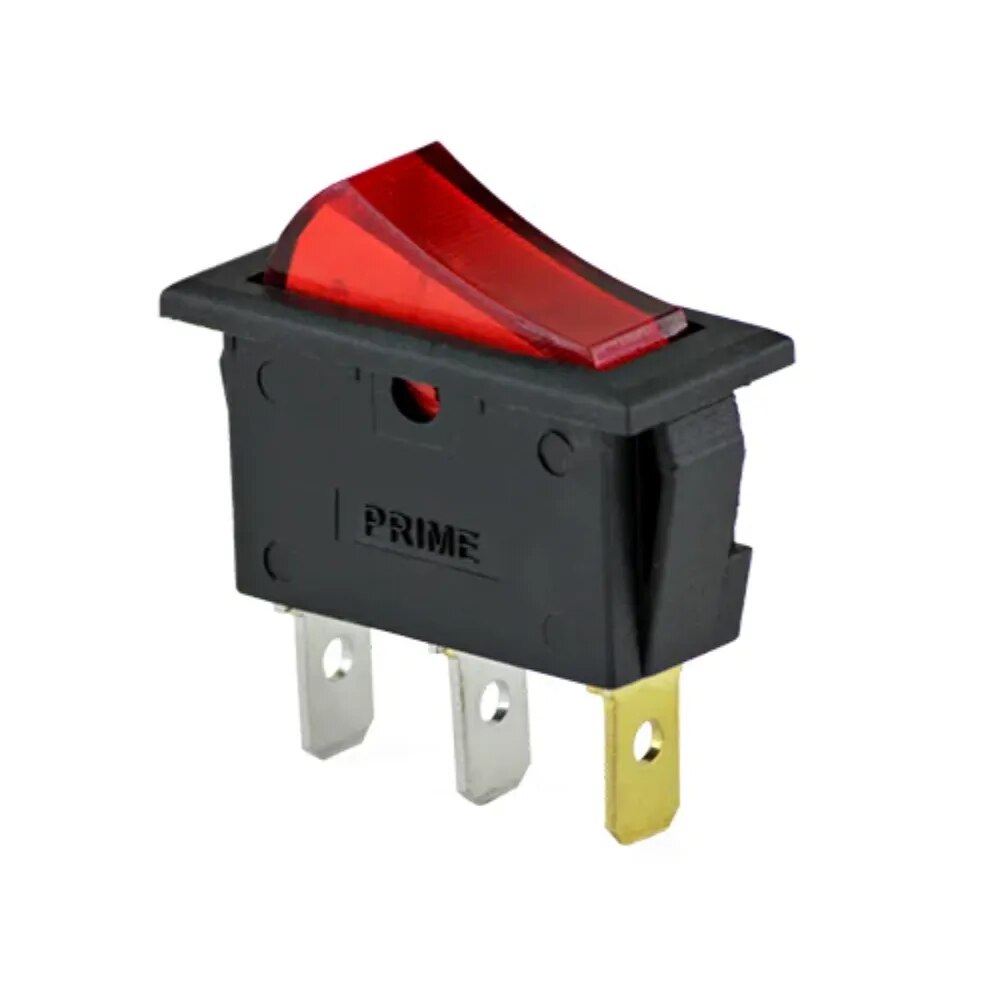

Illuminated Rocker Switch

An Illuminated Rocker Switch is a highly functional and visually efficient electrical switch designed to provide both power control and status indication. Equipped with a built-in light source such as an LED or neon lamp, these switches clearly indicate whether a circuit is ON or OFF, making them ideal for applications where visibility and user convenience are essential. Widely used in industrial equipment, home appliances, automotive systems, and control panels, illuminated rocker switches combine performance, safety, and modern design.

What is an Illuminated Rocker Switch?

An illuminated rocker switch operates like a standard rocker switch but includes an integrated lighting element that glows when the switch is activated (and sometimes when it is off, depending on the wiring). The rocker mechanism allows users to press one side to turn the circuit ON and the other side to turn it OFF.

The illumination feature enhances usability by providing clear visual feedback, especially in low-light or complex environments. These switches are typically constructed using high-quality plastic housings and durable internal contacts to ensure long-lasting and reliable operation.

Key Features of Illuminated Rocker Switch

1. Built-in Illumination

Comes with LED or neon lighting for clear visibility of switch status.

2. User-Friendly Operation

Simple ON/OFF rocker mechanism ensures easy and smooth operation.

3. Durable Construction

Manufactured using flame-retardant thermoplastic materials for safety and longevity.

4. Wide Electrical Ratings

Suitable for various voltage and current applications, from low-power electronics to industrial systems.

5. Panel Mount Design

Easy snap-in or screw mounting for quick installation in panels and enclosures.

6. Multiple Configurations

Available in:

SPST (Single Pole Single Throw)

SPDT (Single Pole Double Throw)

DPST (Double Pole Single Throw)

DPDT (Double Pole Double Throw)

7. Variety of Colors and Styles

Available in different illumination colors such as red, green, blue, and amber for different indications.

Types of Illuminated Rocker Switch

ON/OFF Illuminated Rocker Switch

Basic switch with light indication when the circuit is active.

ON/OFF/ON Illuminated Rocker Switch

Allows switching between two circuits with illumination support.

DPST Illuminated Rocker Switch

Controls two circuits simultaneously with light indication.

Waterproof Illuminated Rocker Switch

Designed for outdoor and harsh environments with protective sealing.

Applications of Illuminated Rocker Switch

Illuminated rocker switches are widely used across various industries where visibility and control are critical:

Home Appliances – Refrigerators, washing machines, microwave ovens

Industrial Equipment – Control panels, machinery, automation systems

Automotive Industry – Dashboard switches, lighting controls

Power Systems – UPS, inverters, power distribution units

Consumer Electronics – Power strips, audio systems, gaming setups

Medical Equipment – Diagnostic and control devices

Marine Applications – Navigation and lighting systems

Advantages of Illuminated Rocker Switch

Clear visual indication of ON/OFF status

Enhanced safety and user convenience

Easy identification in low-light environments

Durable and long-lasting performance

Wide range of designs and configurations

Suitable for both residential and industrial use

Why Choose an Illuminated Rocker Switch?

An illuminated rocker switch is the perfect choice when you need both functionality and visibility in your electrical system. The built-in light ensures that users can easily identify whether a device is powered, reducing errors and improving safety. Its durable design and reliable performance make it suitable for demanding environments, from household appliances to industrial machinery.

SEO Keywords

Illuminated Rocker Switch, LED Rocker Switch, Lighted Rocker Switch, ON OFF Illuminated Switch, Panel Mount Rocker Switch, Industrial Rocker Switch, Waterproof Rocker Switch, DPST Rocker Switch, SPST Rocker Switch, Power Rocker Switch, Rocker Switch Manufacturer India, LED Power Switch, Electrical Rocker Switch

Conclusion

The Illuminated Rocker Switch is an advanced and essential component in modern electrical systems, offering both control and visibility. Its ability to provide real-time status indication, combined with robust construction and versatile applications, makes it a preferred choice for engineers, manufacturers, and users alike. Whether for residential, commercial, or industrial use, illuminated rocker switches deliver reliable and efficient performance.
