ROUND ROCKER ILLUMINITED
In stock
Description
General Description

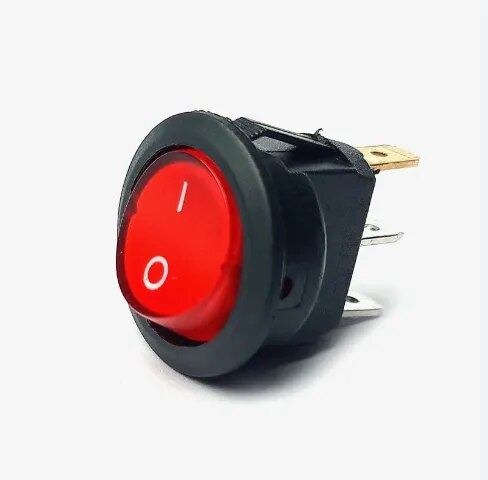

Type: Illuminated Round Rocker Switch
Model Series: KCD1
Operation: ON / OFF (Latching)
Illumination: Red LED / Neon Indicator
Mounting: Panel Mount (Snap-in)
⚡ Electrical Specification
Rated Voltage: 250V AC
Rated Current: 6A @ 250V AC
Alternative Rating: 10A @ 125V AC
Contact Type: SPST (ON/OFF)
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
🔌 Pin Configuration (3-Pin)
Pin 1 → Line Input (Phase)
Pin 2 → Load Output
Pin 3 → Neutral (for LED indicator)
👉 Indicator glows when switch is ON
👉 Some models use neon (AC only) or LED (AC/DC compatible)
