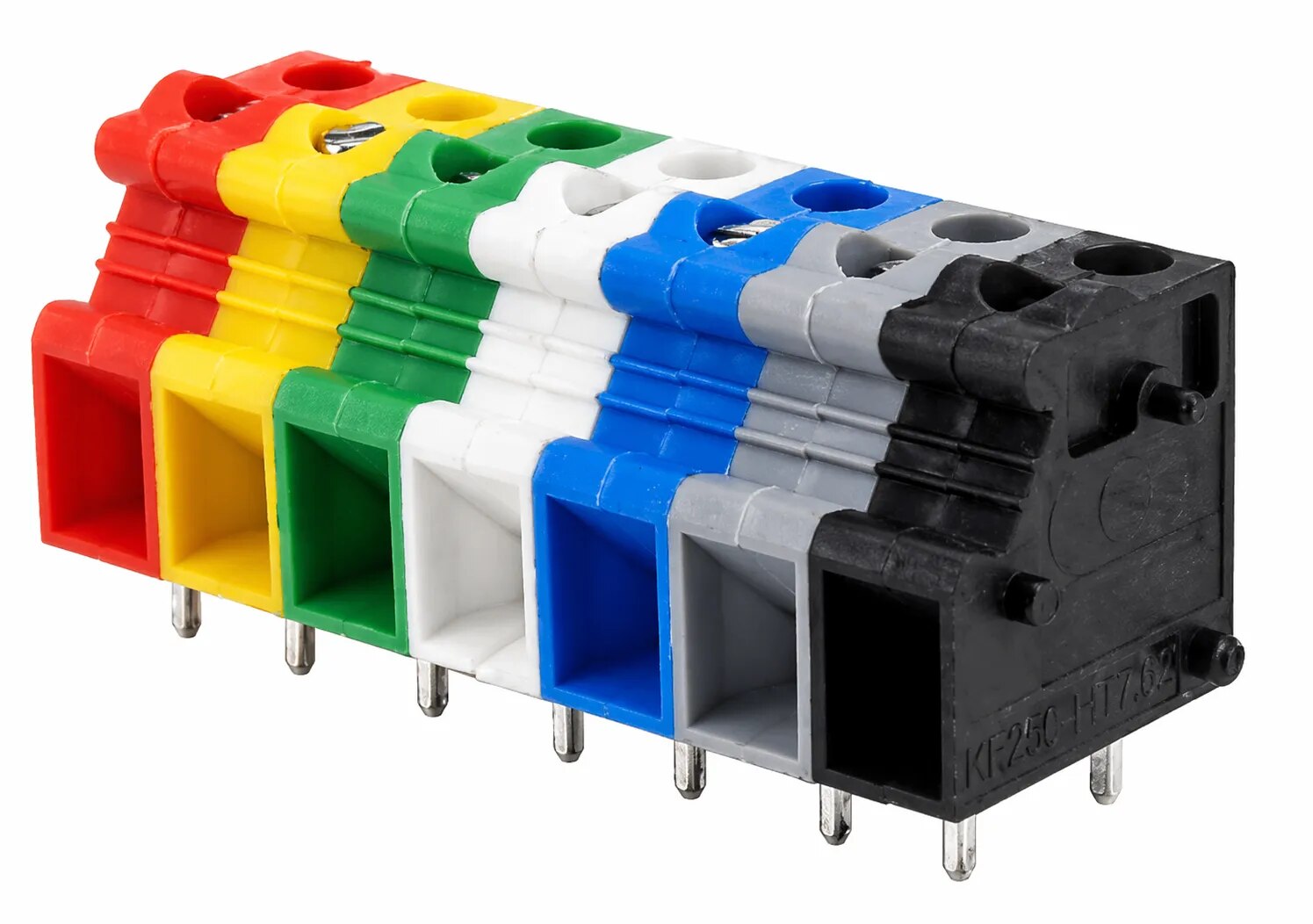

PUT 2.5

Model Type: PUT 2.5 (Push-in Terminal Block)

Mounting: PCB Through-hole

Pitch (Pin Spacing): 5.0 mm / 5.08 mm

Number of Poles: 2 to 12 (modular expandable)

Connection Type: Push-in / Spring clamp

Color Options: Red, Yellow, Green, White, Blue, Grey, Black

⚡ Electrical Specifications

Rated Voltage: 300V – 320V AC/DC

Rated Current: 10A – 20A (typical range)

Contact Resistance: ≤ 20–40 mΩ (typical)

Insulation Resistance: ≥ 100 MΩ

Withstand Voltage: 2.5 KV

🧩 Mechanical Specifications

Wire Size Capacity:

0.08 mm² to 2.5 mm² (≈ 28–12 AWG)

Connection Method:

Push-in spring clamp (tool-less wiring)

Strip Length: ~8 mm

Contact Material: Copper alloy (Tin plated)

Housing Material: PA66 (Nylon, flame retardant UL94-V0)

📐 Physical Dimensions (Typical)

Pitch: 5.08 mm

Height: ~15–20 mm

Width: Depends on number of pins

Pin Type: Tinned copper pins for PCB soldering

🌡️ Environmental Specifications

Operating Temperature: -40°C to +105°C

Storage Temperature: -40°C to +120°C

Flammability Rating: UL94-V0

Protection Class: IP20
