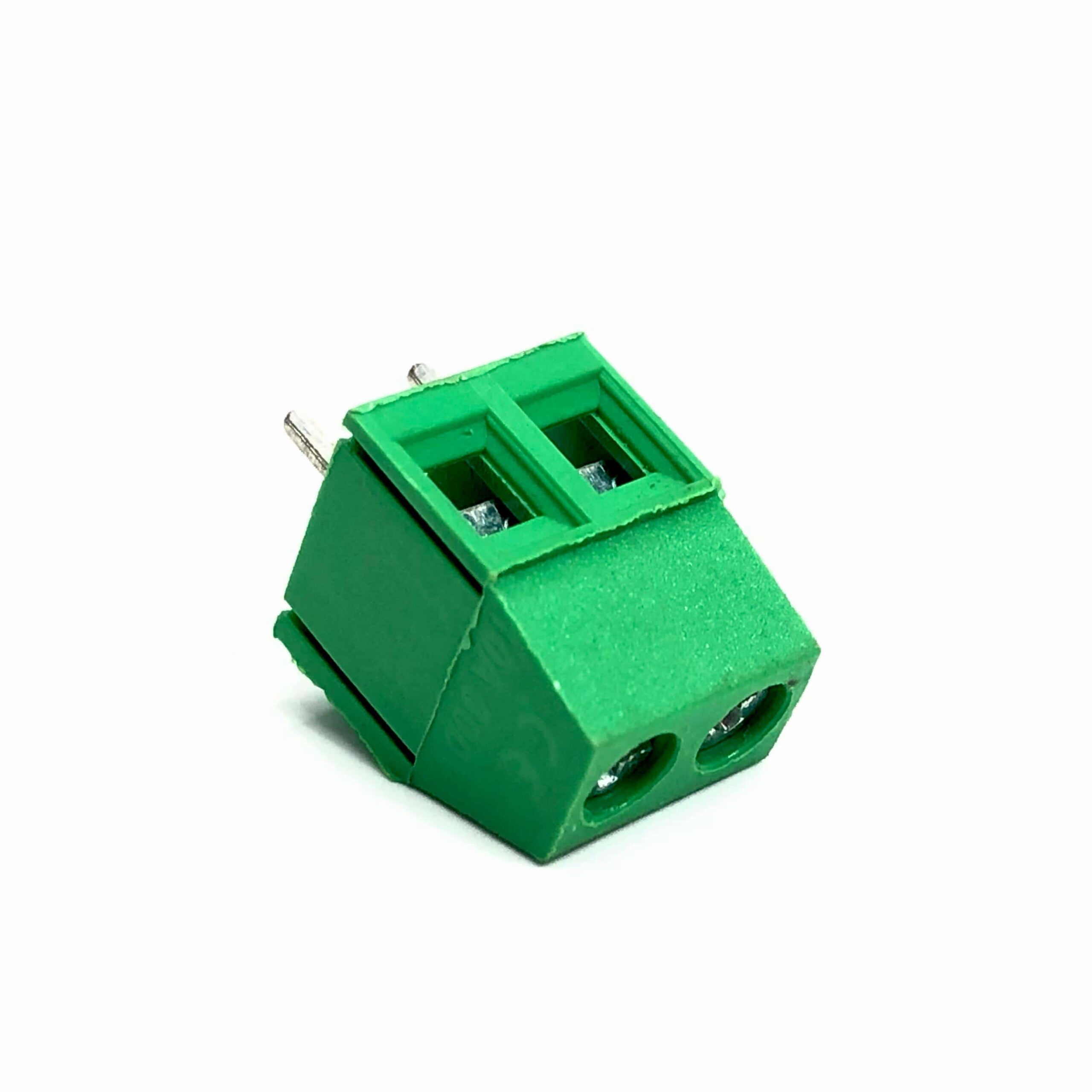

CONNECTOR 128/2
Description
Product Type: PCB Screw Terminal Block
No. of Positions: 2 Pin
Mounting Type: Through Hole (PCB Mount)
Connection Type: Screw Clamp
Wire Entry Direction: Top Entry
Color: Red & Green (as shown)
2. Electrical Specifications
Rated Voltage: 250V AC
Rated Current: 10A (typical, may vary 8–15A based on manufacturer)
Withstanding Voltage: 1500V AC / 1 min
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 500MΩ (DC 500V)
3. Mechanical Specifications
Pitch (Pin Spacing): 5.0 mm / 5.08 mm (standard for this type)
Wire Range:
0.5 – 2.5 mm² (approx. 24–12 AWG)
Screw Type: M2 / M2.5 Steel Screw (Nickel plated)
Torque: ~0.4 Nm max
Pin Type: Tin-plated Copper Alloy
Fixing Method: Screw clamp with pressure plate
4. Material
Housing Material: PA66 (Nylon)
Flammability Rating: UL94V-0
Metal Parts: Brass / Phosphor Bronze (Tin Plated)
5. Temperature Ratings
Operating Temperature: -40°C to +105°C
Storage Temperature: -40°C to +120°C
6. Dimensions (Typical)
Length: ~10–12 mm (for 2 pin)
Width: ~8–10 mm
Height: ~12–15 mm
