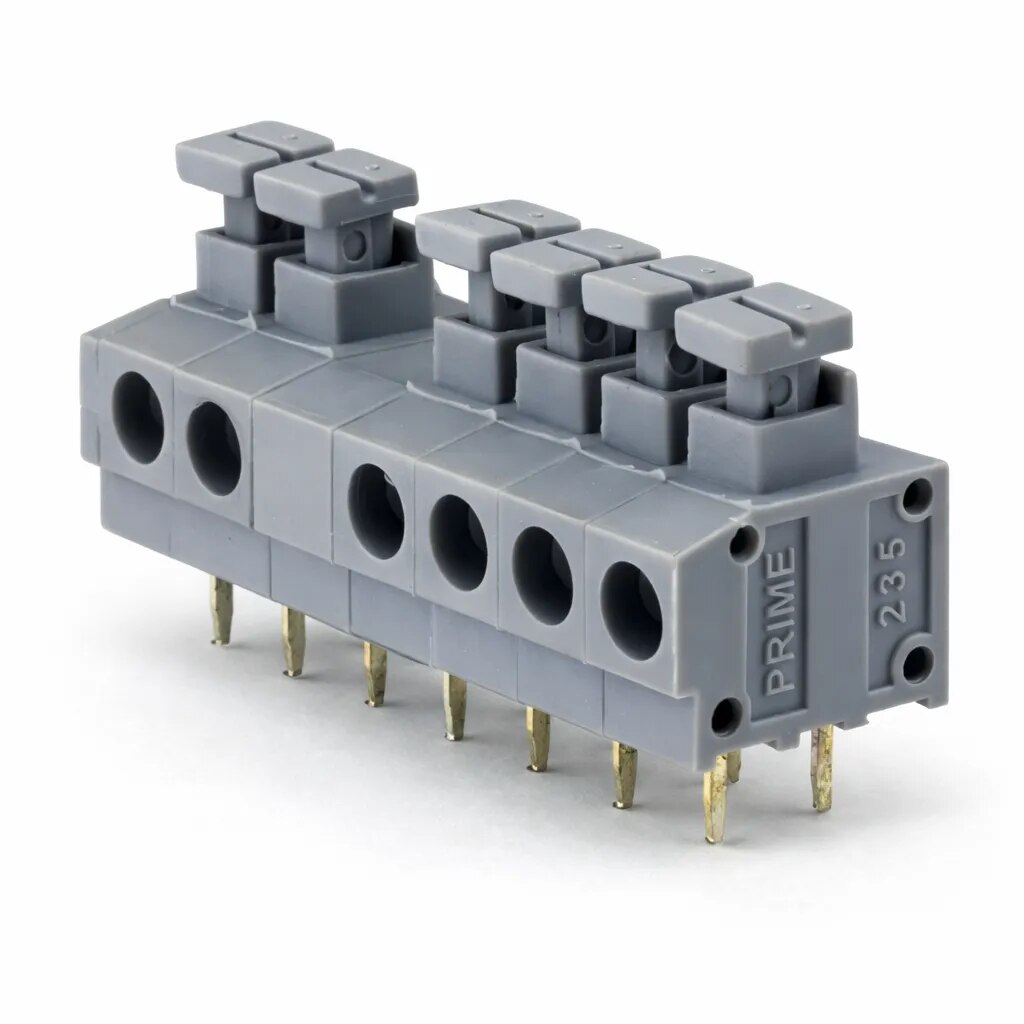

Push Type PCB Terminal Block

A Push Type PCB Terminal Block is a modern and highly efficient electrical connector designed to simplify wiring connections on printed circuit boards (PCBs). These terminal blocks use a push-in spring mechanism that allows wires to be inserted quickly without using screws, making installation faster, safer, and more reliable. Push type PCB terminal blocks are widely used in industrial electronics, automation systems, power supplies, control panels, LED drivers, communication equipment, and consumer electronics where secure and stable electrical connections are required.

Manufactured with high-quality flame-retardant engineering plastic and corrosion-resistant metal contacts, push type PCB terminal blocks provide excellent electrical conductivity and long-term reliability. Their compact structure makes them ideal for space-saving PCB designs, while the push-in technology ensures strong wire retention and vibration resistance.

Because of their tool-less wiring capability, push type terminal blocks significantly reduce assembly time and maintenance effort. Technicians simply push the wire into the terminal opening, and the internal spring clamp locks it securely in place. This advanced design ensures consistent electrical contact, reduces wiring errors, and improves overall system safety.

Key Features of Push Type PCB Terminal Blocks

1. Push-In Spring Connection Technology

The most important feature of push type PCB terminal blocks is their push-in spring clamp mechanism. Unlike traditional screw terminals, this design allows wires to be inserted directly into the terminal slot without tightening screws. The spring automatically clamps the conductor, creating a strong and stable electrical connection.

2. Quick and Tool-Free Installation

Push type connectors are designed for fast installation. Electricians and technicians can connect wires within seconds, making them perfect for high-volume production lines and rapid PCB assembly.

3. Compact and Space-Saving Design

Modern electronic devices require compact components. Push type PCB terminal blocks are designed with a small footprint, enabling engineers to optimize PCB space without compromising performance.

4. High Electrical Conductivity

The internal metal contacts are usually made from tin-plated copper alloy or brass, which ensures excellent electrical conductivity and low contact resistance. This helps maintain stable current flow and prevents overheating.

5. Strong Wire Retention

The internal spring mechanism provides high clamping force, ensuring that wires remain securely connected even in environments with vibration or mechanical stress.

6. Durable and Flame-Retardant Housing

Most push type PCB terminal blocks are manufactured from high-temperature resistant and flame-retardant materials such as PA66 (Nylon). This enhances safety and durability in demanding industrial applications.

7. Multiple Pin Configurations

Push type PCB terminal blocks are available in 2 pin, 3 pin, 4 pin, 5 pin, and multi-pin configurations, allowing flexibility for different circuit requirements.

Technical Specifications

Although specifications may vary depending on the model, typical features of push type PCB terminal blocks include:

Connection Type: Push-in spring clamp

Mounting Type: PCB mount (through-hole)

Pitch Size: Commonly 2.54mm, 3.5mm, 5.0mm, or 5.08mm

Rated Voltage: Up to 250V – 300V

Rated Current: 8A – 16A depending on model

Housing Material: Flame-retardant PA66

Contact Material: Tin-plated copper alloy

Operating Temperature: –40°C to +105°C

Wire Size Compatibility: 22 AWG – 14 AWG (depending on design)

These features make push type PCB terminal blocks suitable for both low-power electronics and industrial control circuits.

Applications of Push Type PCB Terminal Blocks

Push type PCB terminal blocks are widely used across many industries because of their reliability and ease of use.

Industrial Automation

They are commonly used in PLC systems, control panels, and industrial automation equipment where secure and vibration-resistant wiring is essential.

Power Supply Systems

Push type terminal blocks are used in switch mode power supplies, voltage regulators, and UPS systems to ensure stable power connections.

LED Lighting Systems

In LED drivers and lighting controllers, push type connectors allow quick and safe wiring of power cables and signal lines.

Consumer Electronics

Many electronic devices such as home appliances, audio equipment, and smart home devices use push type PCB terminal blocks for compact wiring connections.

Communication Equipment

Networking devices, routers, and communication control boards also rely on push type connectors for efficient electrical connections.

Advantages Over Traditional Screw Terminal Blocks

Push type PCB terminal blocks provide several advantages compared to traditional screw terminals:

Faster Wiring Process

No Need for Screwdrivers or Tools

Consistent Contact Pressure

Reduced Maintenance Requirements

Better Resistance to Vibration

Lower Risk of Loose Connections

These benefits make push type connectors the preferred choice in modern electronics manufacturing.

Why Choose High-Quality Push Type PCB Terminal Blocks?

Choosing high-quality push type PCB terminal blocks ensures long-term electrical reliability, safety, and performance. Premium terminal blocks are tested for mechanical strength, temperature resistance, and electrical conductivity to meet international quality standards.

Reliable terminal blocks also reduce maintenance costs, prevent circuit failures, and improve overall system efficiency.

Conclusion

The Push Type PCB Terminal Block is an advanced electrical connector designed to simplify PCB wiring while ensuring strong, secure, and efficient electrical connections. With its tool-free push-in design, compact structure, high conductivity contacts, and durable flame-retardant housing, this terminal block is an ideal solution for modern electronic and industrial applications.

From industrial automation and power supplies to LED lighting and consumer electronics, push type PCB terminal blocks provide a reliable and efficient way to connect wires on printed circuit boards. Their fast installation, vibration resistance, and long service life make them an essential component in today’s electronic systems.
