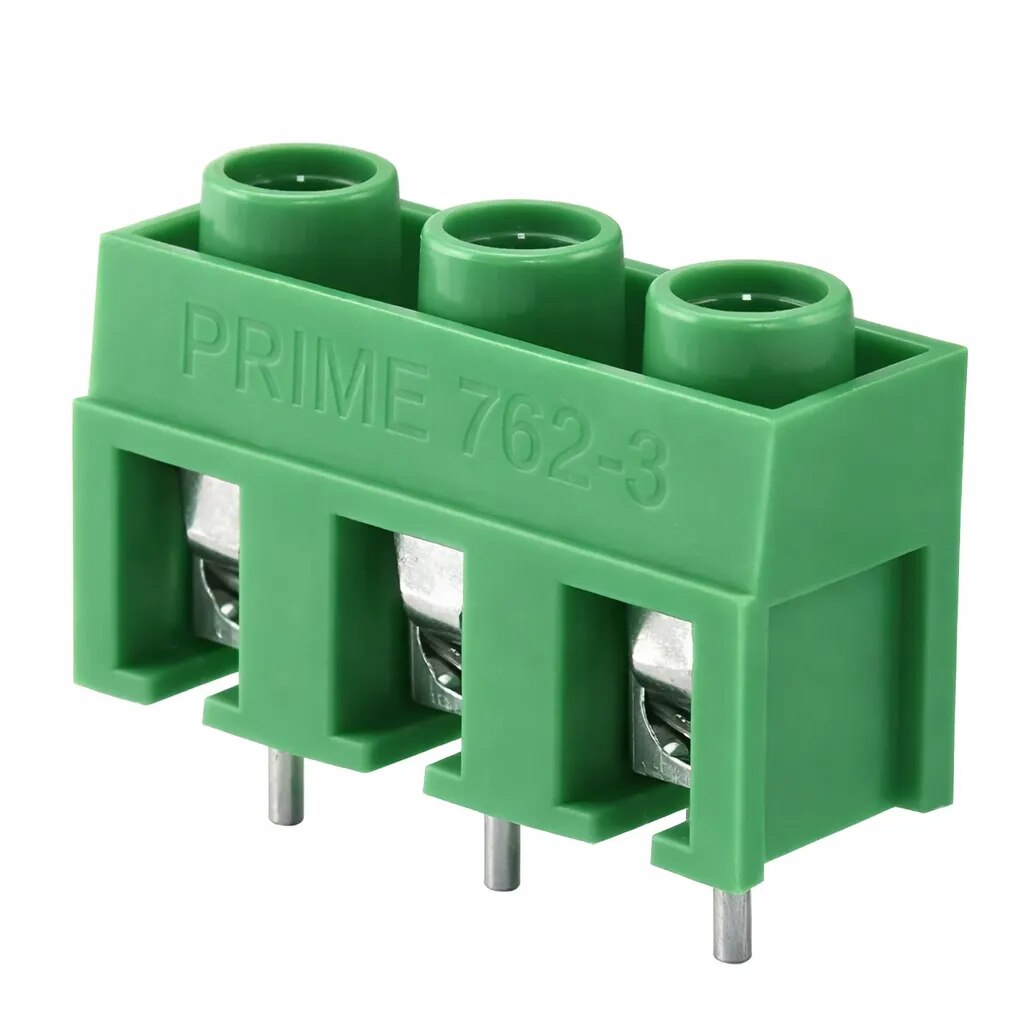

Green PCB Terminal Block

The Green PCB Terminal Block is an essential electrical connector widely used for creating secure and reliable wire-to-board connections in electronic circuits. Designed for durability and easy installation, these connectors are commonly used in industrial equipment, electronic devices, automation systems, and power control circuits.

PCB terminal blocks are designed to simplify electrical wiring on printed circuit boards (PCBs). Instead of soldering wires directly onto the board, these connectors allow users to attach and detach wires easily using screw clamps or spring mechanisms. The green color housing is the most commonly used standard in the electronics industry, making it easy to identify and organize wiring connections on circuit boards.

Green PCB terminal blocks are known for their compact design, high electrical conductivity, strong mechanical strength, and long service life. They provide safe and stable electrical connections even in demanding environments where vibration, heat, or electrical load may be present.

Key Features of Green PCB Terminal Block

Durable Insulated Housing

The housing of a green PCB terminal block is usually made from high-quality flame-retardant materials such as PA66 or Nylon, which offer excellent insulation and heat resistance. This ensures that the connector remains safe during long-term operation in electrical circuits.

Strong Metal Conductive Contacts

Inside the terminal block, high-quality copper alloy or brass contacts are used to provide excellent electrical conductivity. These contacts are often tin-plated to prevent corrosion and improve durability.

Secure Screw Clamp Connection

Most PCB terminal blocks use a screw clamp mechanism to secure wires. This system allows users to easily insert wires and tighten them with a screw, ensuring a firm and vibration-resistant electrical connection.

Compact and Space Saving Design

Green PCB terminal blocks are designed with various pitch sizes such as 3.5mm, 5.08mm, and 7.62mm, making them suitable for different PCB layouts. Their compact size allows them to fit easily into modern electronic devices where space is limited.

Easy Installation and Maintenance

One of the major advantages of PCB terminal blocks is their simple installation process. Wires can be connected or removed without soldering, which makes maintenance and repair work much easier.

Multiple Pin Configurations

Green PCB terminal blocks are available in several configurations to meet different circuit requirements, including:

2 Pin Terminal Block

3 Pin Terminal Block

4 Pin Terminal Block

6 Pin Terminal Block

Multi-pin connectors

These variations allow engineers to design flexible and efficient wiring systems.

Technical Specifications

Typical specifications of a Green PCB Terminal Block include:

Pitch Size: 3.5mm / 5.08mm / 7.62mm

Rated Voltage: 150V – 600V

Rated Current: 8A – 20A

Contact Material: Brass / Copper Alloy

Plating: Tin Plated

Housing Material: PA66 Flame Retardant Plastic

Operating Temperature: -40°C to +105°C

Mounting Type: PCB Through Hole

Wire Size: 24 AWG – 12 AWG

These specifications may vary depending on the product design and manufacturer.

Applications of Green PCB Terminal Blocks

Green PCB terminal blocks are widely used across various industries due to their reliability and ease of use.

Industrial Automation

In automation systems, terminal blocks are used to connect sensors, control modules, and signal lines. Their strong clamping mechanism ensures stable connections even in high-vibration environments.

Power Supply Circuits

Many power supply units and power distribution boards use PCB terminal blocks to safely connect input and output wires.

LED Lighting Systems

Terminal blocks are commonly used in LED drivers, LED controllers, and lighting systems for connecting power cables and signal wires.

Consumer Electronics

Devices such as amplifiers, audio systems, chargers, and electronic appliances often use PCB terminal blocks to simplify internal wiring.

Control Panels and Electrical Boards

Electrical control panels and industrial equipment rely on PCB terminal blocks to maintain organized wiring and ensure easy troubleshooting.

Benefits of Using Green PCB Terminal Blocks

Reliable Electrical Connections

These connectors provide stable and secure electrical connections, reducing the risk of loose wiring or circuit failure.

Easy Wiring and Maintenance

The screw clamp design allows quick installation and removal of wires, saving time during assembly and repair.

High Safety Standards

With flame-retardant insulation materials and corrosion-resistant contacts, PCB terminal blocks offer high safety for electrical systems.

Compact Design

Their compact structure allows them to be used in space-constrained electronic devices and PCB layouts.

Long Service Life

High-quality materials and strong mechanical construction ensure long-term performance even under demanding operating conditions.

Why Choose High Quality PCB Terminal Blocks?

Selecting a high-quality Green PCB Terminal Block ensures better performance, improved electrical safety, and longer equipment lifespan. Low-quality connectors may cause loose connections, overheating, or electrical failures.

High-grade terminal blocks are manufactured with precision engineering to ensure perfect PCB mounting and consistent electrical performance. For electronics manufacturers and engineers, using reliable terminal blocks helps maintain the quality and durability of electronic products.

Conclusion

The Green PCB Terminal Block is a highly versatile and reliable electrical connector used for wire-to-board connections in various electronic applications. With its compact design, strong screw clamp mechanism, durable insulated housing, and excellent conductivity, it has become a standard component in modern electronic circuits.

From industrial automation and power supplies to LED lighting and consumer electronics, green PCB terminal blocks provide a safe, efficient, and convenient solution for electrical wiring on printed circuit boards.

Their ease of installation, long service life, and dependable performance make them an essential component in modern electrical and electronic systems.
