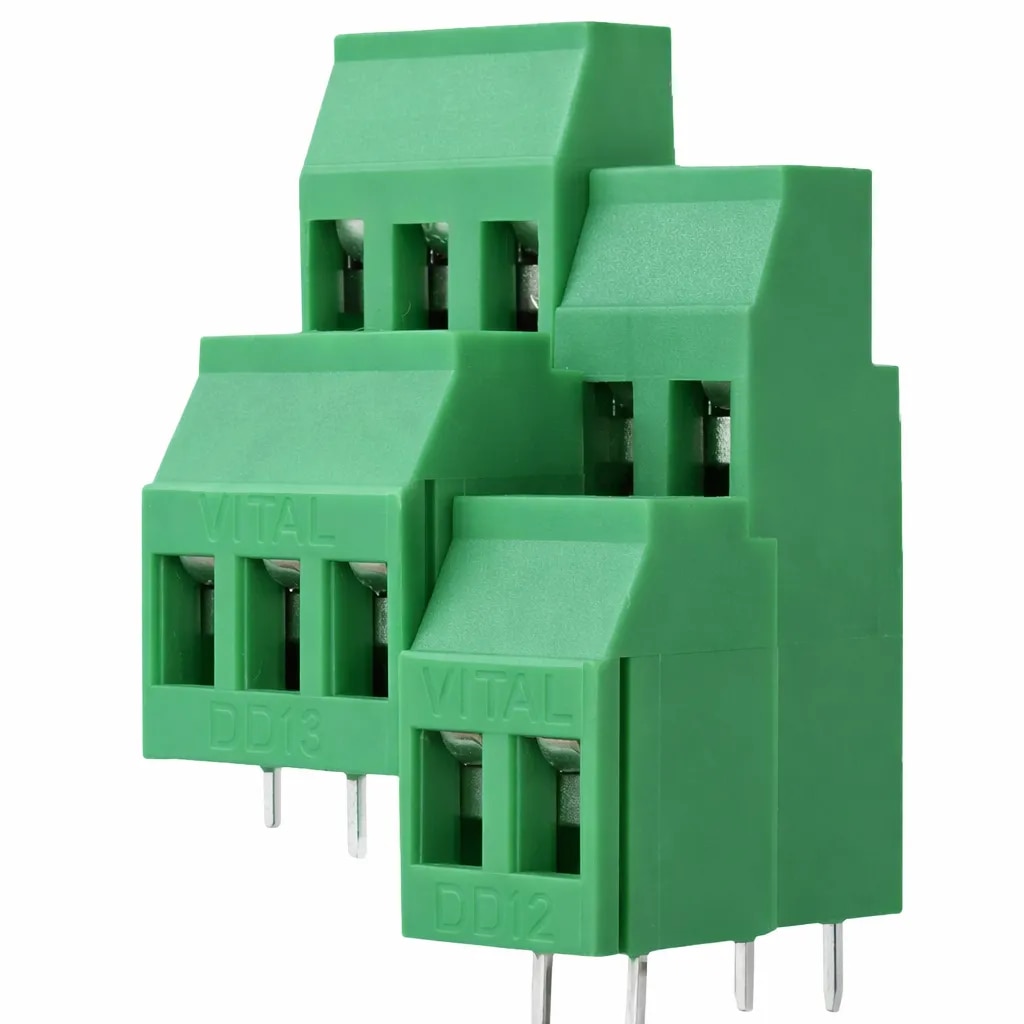

Double Decker PCB Terminal Blocks

Double Decker PCB Terminal Blocks, also known as double-level or stacked PCB terminal connectors, are advanced electrical connectors designed to maximize wiring capacity on printed circuit boards (PCBs). These connectors feature two levels of wire connection points stacked vertically, allowing engineers to connect multiple wires while saving valuable PCB space.

In modern electronics and industrial systems, space efficiency and reliable wiring are extremely important. Double decker terminal blocks provide an ideal solution by increasing the number of connections without increasing the footprint on the circuit board. This makes them highly suitable for industrial control panels, automation equipment, power distribution boards, LED drivers, and electronic devices.

Manufactured with high-quality insulation materials and durable metal contacts, these connectors ensure stable electrical performance, safe wiring, and long-term durability.

Key Features of Double Decker PCB Terminal Blocks

Dual-Level Connection Design

The main feature of a double decker terminal block is its two-level stacked connection structure. This design allows multiple wires to be connected in a compact area, effectively doubling the connection capacity compared to standard single-level terminal blocks.

Space-Saving PCB Layout

By stacking terminals vertically, these connectors significantly reduce PCB space requirements, making them perfect for compact electronic devices and densely populated circuit boards.

Strong Screw Clamp Connection

Most double decker PCB terminal blocks use a screw clamp system that tightly secures wires inside the connector. This ensures a stable electrical connection and prevents wires from loosening due to vibration or movement.

High Quality Insulated Housing

The connector housing is typically made from flame-retardant PA66 or Nylon plastic, which offers excellent electrical insulation, heat resistance, and mechanical strength.

Durable Metal Contacts

The internal contacts are made from tin-plated brass or copper alloy, providing excellent electrical conductivity and corrosion resistance. This ensures efficient signal transmission and reliable current flow.

Multiple Pin Configurations

Double decker PCB terminal blocks are available in different configurations such as:

2 Pin Double Decker Terminal Block

3 Pin Double Decker Terminal Block

4 Pin Double Decker Terminal Block

Multi-position double-level connectors

These options allow engineers to choose the right connector for specific circuit requirements.

Technical Specifications

Typical specifications of Double Decker PCB Terminal Blocks include:

Pitch Size: 3.5mm / 5.08mm

Rated Voltage: 150V – 300V

Rated Current: 8A – 16A

Wire Range: 24 AWG – 16 AWG

Contact Material: Brass / Copper Alloy

Contact Plating: Tin Plated

Housing Material: Flame Retardant PA66 / Nylon

Mounting Type: PCB Through Hole

Operating Temperature: -40°C to +105°C

Specifications may vary depending on the manufacturer and design.

Applications of Double Decker PCB Terminal Blocks

Double decker terminal blocks are widely used across various industries due to their compact design and reliable connection capabilities.

Industrial Automation

These connectors are commonly used in PLC systems, industrial controllers, and machine control circuits, where multiple wiring connections are required in limited space.

Control Panels

Electrical control panels often require multiple wire connections. Double decker terminal blocks help organize wiring efficiently while saving panel space.

Power Distribution Systems

In power supply circuits and distribution boards, these connectors help manage multiple power connections safely.

LED Lighting and Drivers

Many LED driver boards and lighting controllers use double decker terminal blocks for connecting power input and output wiring.

Consumer Electronics

Devices such as audio systems, home appliances, and electronic gadgets benefit from compact wiring solutions provided by double-level terminal connectors.

Advantages of Using Double Decker PCB Terminal Blocks

Higher Wiring Density

The dual-level design allows more wire connections in a smaller area, increasing overall wiring density.

Efficient Space Utilization

These connectors help designers build compact and organized PCB layouts.

Easy Installation and Maintenance

Wires can be connected and removed easily without soldering, making installation and repair work faster.

Reliable Electrical Performance

High-quality metal contacts ensure stable conductivity and minimal power loss.

Long Service Life

Durable materials and corrosion-resistant contacts provide long-lasting performance in various environments.

Why Choose High Quality Double Decker PCB Terminal Blocks?

Using high-quality terminal blocks is essential for maintaining electrical safety and reliable system performance. Poor-quality connectors can cause loose wiring, overheating, or signal failure.

Premium double decker PCB terminal blocks are manufactured with precise engineering to ensure perfect PCB fitment, strong wire clamping, and consistent electrical conductivity. Choosing trusted connectors helps ensure safe and efficient operation of electronic equipment.

Conclusion

Double Decker PCB Terminal Blocks are an innovative and highly practical solution for modern electronic circuit design. Their stacked connection design, compact footprint, and reliable wiring capability make them ideal for applications where space efficiency and secure electrical connections are critical.

From industrial automation systems and power supply circuits to LED lighting and consumer electronics, these connectors provide a safe, efficient, and organized way to manage PCB wiring connections.

With their space-saving design, strong screw clamp system, durable materials, and reliable performance, double decker PCB terminal blocks remain an essential component in advanced electronic and electrical systems.
