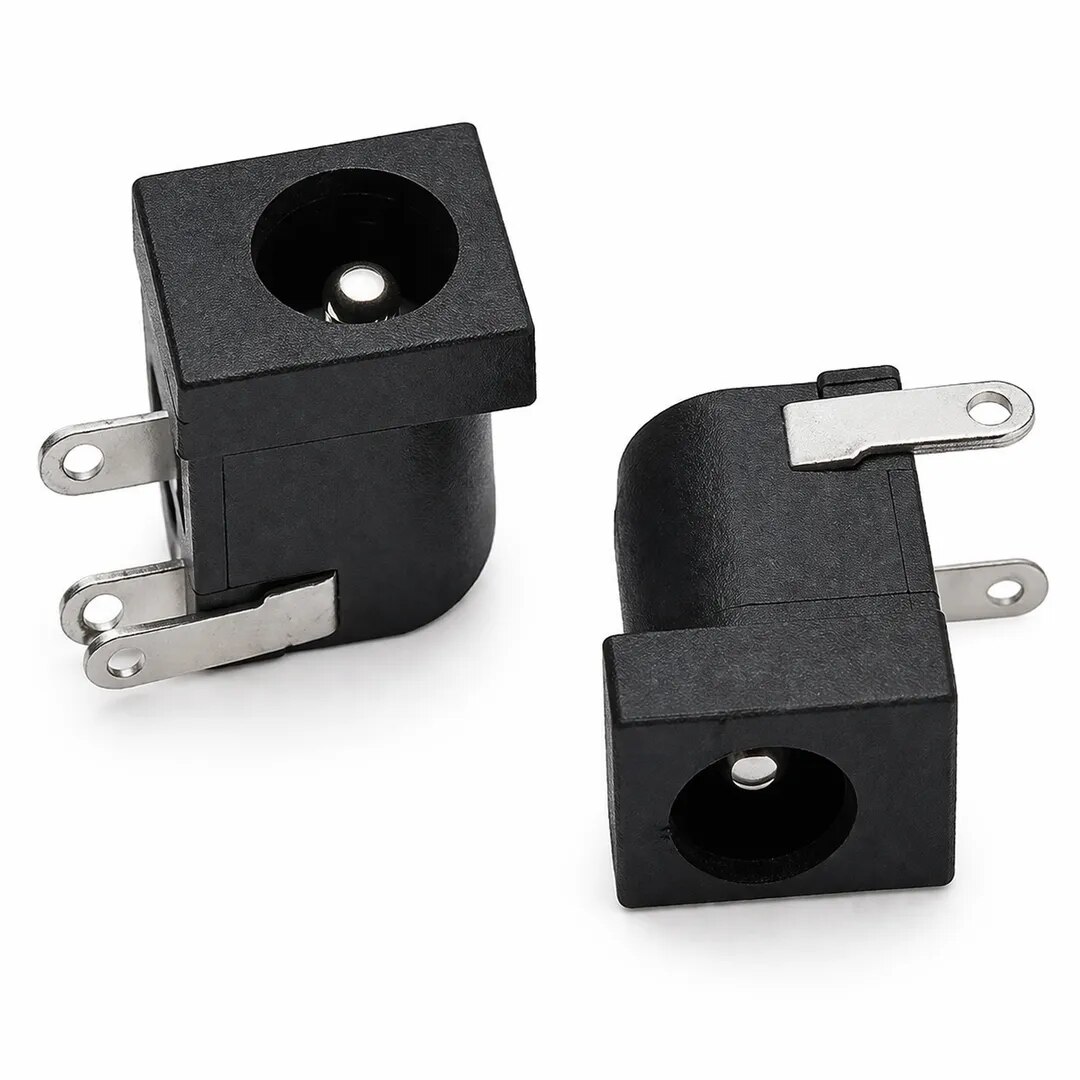

DC-05
In stock
Description
Model: DC-05
Type: PCB Mount / Right Angle DC Socket
Mounting Style: Through-hole PCB mount
Orientation: Right-angle (90°)
Pin Configuration: 3 Pin (with switching function)
Gender: Female
⚙️ Electrical Specifications
Rated Voltage: 12V – 24V DC
Rated Current: 2A – 5A
Contact Resistance: ≤ 0.03Ω
Insulation Resistance: ≥ 100MΩ (at 500V DC)
Dielectric Strength: 500V AC for 1 minute
🔩 Mechanical Specifications
Compatible Plug Size: 5.5mm (OD) × 2.1mm (ID) DC plug
Mounting Type: PCB (through-hole soldering)
Body Shape: Square front with cylindrical body
