dc-002

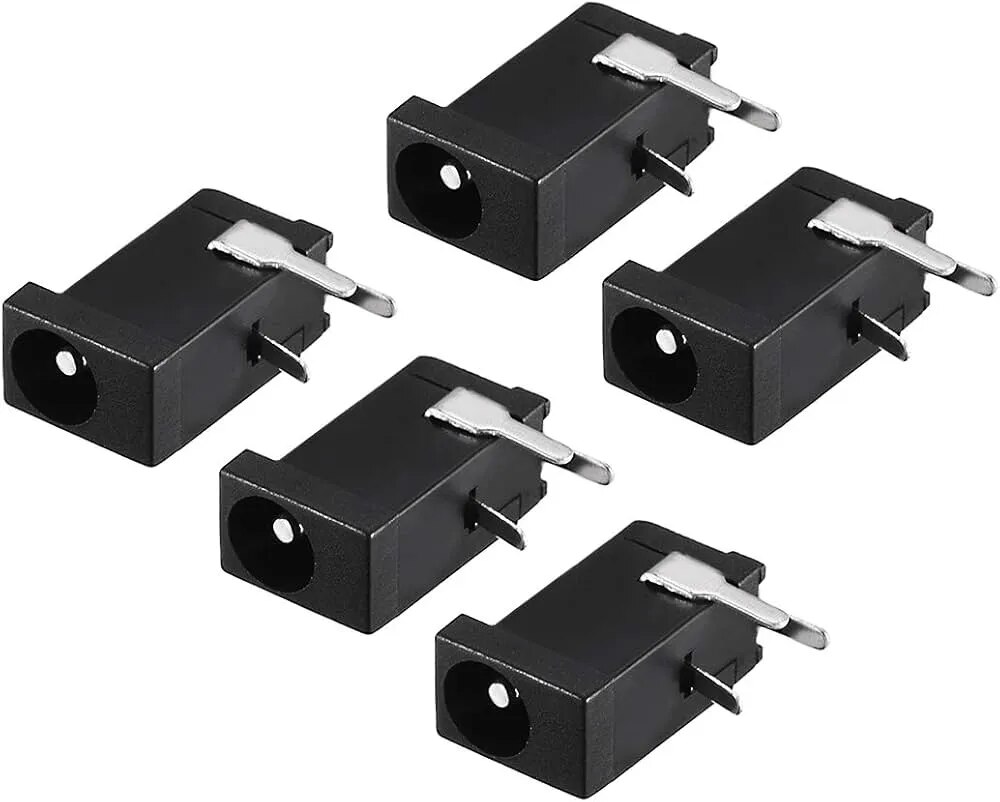

Model: DC-002

Type: PCB Mount DC Power Jack

Connector Type: Female DC Socket

Mounting Style: Through-hole PCB mount

Orientation: Horizontal / Right-angle

Pin Configuration: 3 Pin

⚙️ Electrical Specifications

Rated Voltage: 12V – 24V DC

Rated Current: 2A – 5A

Contact Resistance: ≤ 30mΩ

Insulation Resistance: ≥ 100MΩ at 500V DC

Dielectric Strength: 500V AC for 1 minute

🔩 Mechanical Specifications

Compatible Plug Size: 5.5mm (Outer Diameter) × 2.1mm (Inner Diameter)

Mounting Type: PCB Through-hole soldering

Insertion Life: ≥ 5,000 mating cycles

Terminal Type: Solder pin terminals

Contact Type: Spring-loaded center contact

🔄 Pin Configuration

Pin 1: Center Positive (V+)

Pin 2: Ground / Outer Sleeve (GND)

Pin 3: Switch terminal (disconnects when plug inserted)

🧱 Material Details

Housing Material: Black Nylon / PA66

Contact Material: Copper alloy

Terminal Finish: Nickel plated

Insulator: Heat-resistant thermoplastic

🌡️ Environmental Specifications

Operating Temperature: -20°C to +70°C

Storage Temperature: -25°C to +85°C

📏 Physical Features

Compact rectangular body

Right-angle PCB design

Strong solder terminals for stable PCB mounting

Durable and lightweight construction
