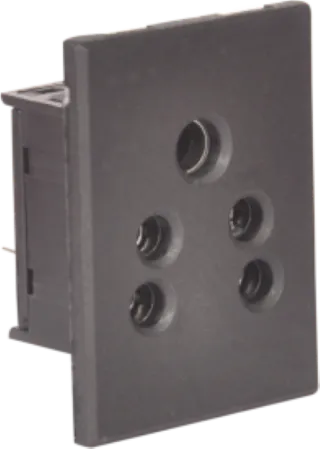

6A SOCKET PPS-6
In stock
Description
General Description
Type: 6 Amp Modular Socket
Pin Type: 5 Pin (2-pin + 3-pin combination)
Mounting: Modular / Flush Panel Mount
Standard: Indian Standard (IS 1293)
Design: Compact rectangular module
⚡ Electrical Specification
Rated Voltage: 220–240V AC
Rated Current: 6 Amp
Frequency: 50/60 Hz
Max Load Capacity: ~1000–1500 Watts
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
📌 Typical 6A sockets operate safely up to 230V AC household supply
🔌 Socket Configuration
Live (L)
Neutral (N)
Earth (E)
Accepts:
2-pin plugs (Euro/Indian small)
3-pin plugs (6A type)
