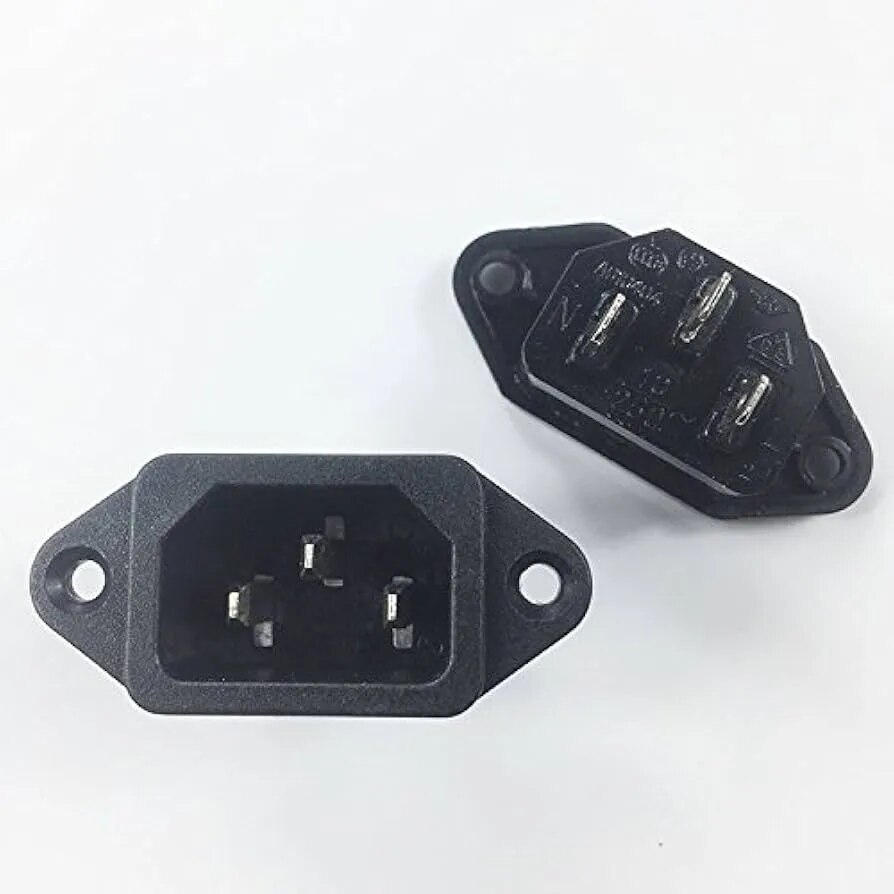

COMPUTER SOCKET
In stock
Description
Electrical Specifications
Rated Current: 10A / 15A (variant dependent)
Rated Voltage: 250V AC
Frequency: 50/60 Hz
Insulation Resistance: ≥ 1000 MΩ
Dielectric Strength: 2000V AC for 1 minute
Contact Resistance: ≤ 10–20 mΩ
🔧 Mechanical Specifications
Connector Type: IEC 60320 C14 (Male Inlet)
Mounting Type: Flange mount (2 screw fixing)
Panel Cut-out Size: Approx. 27.5 × 20 mm
Flange Size: Approx. 50 × 22 mm
Pin Configuration: 3 Pins (Line, Neutral, Earth)
Terminal Type:
Faston / Quick connect (6.3 mm)
Optional solder terminals
🧱 Material Details
Housing Material: Nylon / PBT (Flame Retardant, UL94 V-0)
Contact Material: Brass / Copper alloy
Plating: Tin plated for corrosion resistance
