DB-15 FEMALE
Description

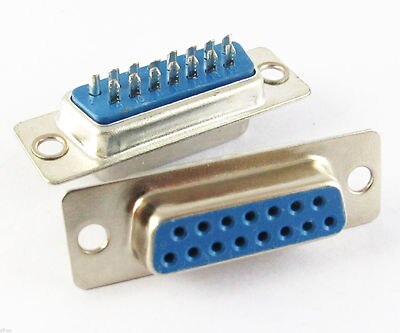

The DB-15 Female Connector is a 15-pin D-Subminiature connector designed for secure signal and data transmission in electronic and industrial applications. It features a durable metal shell with 15 female socket contacts arranged in two rows.
Mechanical Specifications
Parameter Specification
Connector Type D-Sub Connector
Gender Female
Number of Pins 15 Socket Pins
Mounting Type Panel Mount / PCB Mount
Contact Arrangement 2 Rows
Shell Material Nickel Plated Steel
Contact Material Copper Alloy
Contact Plating Gold Flash / Tin
Insulator Material PBT / Thermoplastic
Housing Finish Corrosion Resistant Metal
Locking Type Screw Lock Compatible
Electrical Specifications
Parameter Value
Rated Current 3A – 5A
Rated Voltage 250V AC
Contact Resistance ≤ 20mΩ
Insulation Resistance ≥ 1000MΩ
Withstanding Voltage 1000V AC for 1 Minute
Operating Temperature -55°C to +105°C
Approximate Dimensions
Dimension Size
Length 39 mm
Width 12.5 mm
Height 13 mm
Pin Pitch 2.77 mm
Mounting Hole Distance 33.3 mm
Features
Strong metal shielding
Reliable female socket contacts
Easy soldering and installation
High durability and long life
Stable signal transmission
Compact and lightweight design
Applications
Industrial automation
Communication devices
Computer peripherals
VGA and display interfaces
Instrumentation systems
CNC and control panels
Embedded electronic systems
