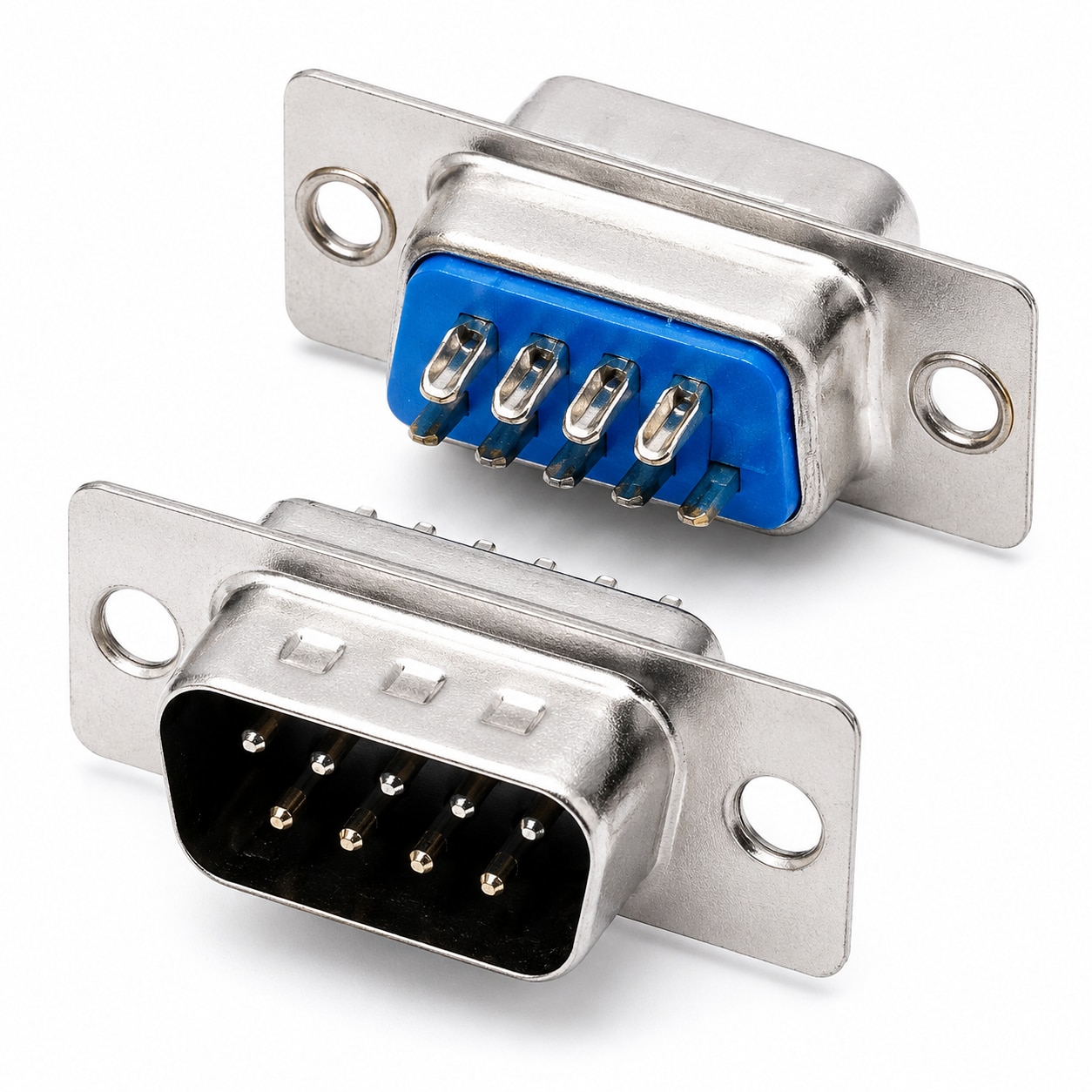

DB-9 MALE

General Information

Product Type: DB-9 Male D-Sub Connector

Connector Series: D-Subminiature (D-SUB)

Gender: Male

Number of Pins: 9 Pins

Mounting Type: Panel Mount / PCB Mount

Orientation: Straight

⚙️ Electrical Specifications

Rated Voltage: 250V AC RMS

Rated Current: 3A per contact

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 1000MΩ at 500V DC

Dielectric Strength: 1000V AC for 1 minute

🔩 Mechanical Specifications

Connector Type: D-SUB 9 Pin Male

Termination Type: Solder Cup / PCB Pin

Mounting Style: Flange mount with locking holes

Mating Cycles: ≥ 500 insertion cycles

Locking System: Standard D-SUB screw lock compatible

🧱 Material Details

Shell Material: Steel with nickel plating

Contact Material: Copper alloy

Contact Finish: Gold flash plated over nickel

Insulator Material: PBT / Thermoplastic (Black color)
