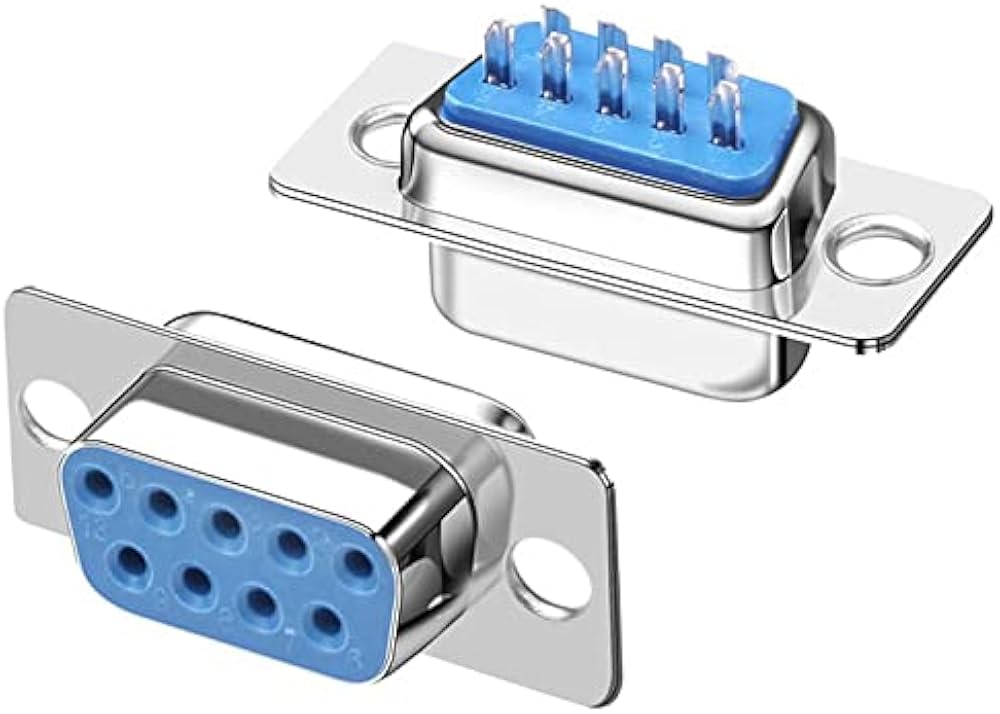

DB-9 FEMALE

Product Type: DB9 Female D-Sub Connector

Connector Series: D-Subminiature (D-SUB)

Gender: Female

Number of Pins: 9 Pins

Mounting Type: Panel Mount / Solder Type

Orientation: Straight

⚙️ Electrical Specifications

Rated Voltage: 250V AC RMS

Rated Current: 3A per contact

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 1000MΩ

Dielectric Withstand Voltage: 1000V AC for 1 minute

🔩 Mechanical Specifications

Connector Type: D-SUB 9 Pin Female

Mounting Style: Panel mount with flange holes

Termination Type: Solder Cup / PCB Pin (depending on model)

Mating Cycles: ≥ 500 cycles

Locking System: Screw lock compatible

🧱 Material Details

Shell Material: Steel with nickel plating

Contact Material: Copper alloy

Contact Plating: Gold flash over nickel

Insulator Material: PBT / Thermoplastic (Blue color)

📏 Physical Dimensions (Approx.)

Pin Count: 9

Mounting Hole Distance: 25mm

Connector Width: 30.8mm

Connector Height: 12.5mm

Connector Depth: 17mm – 20mm
