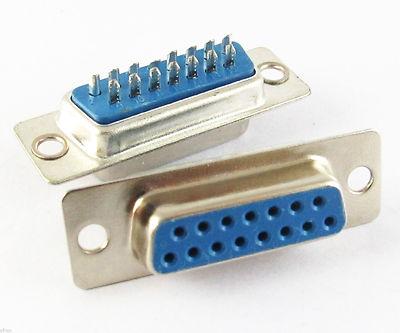

The DB-15 Female Connector is a 15-pin D-Subminiature connector designed for secure signal and data transmission in electronic and industrial applications. It features a durable metal shell with 15 female socket contacts arranged in two rows. Mechanical Specifications Parameter Specification Connector Type D-Sub Connector Gender Female Number of Pins 15 Socket Pins Mounting Type Panel Mount / PCB Mount Contact Arrangement 2 Rows Shell Material Nickel Plated Steel Contact Material Copper Alloy Contact Plating Gold Flash / Tin Insulator Material PBT / Thermoplastic Housing Finish Corrosion Resistant Metal Locking Type Screw Lock Compatible Electrical Specifications Parameter Value Rated Current 3A – 5A Rated Voltage 250V AC Contact Resistance ≤ 20mΩ Insulation Resistance ≥ 1000MΩ Withstanding Voltage 1000V AC for 1 Minute Operating Temperature -55°C to +105°C Approximate Dimensions Dimension Size Length 39 mm Width 12.5 mm Height 13 mm Pin Pitch 2.77 mm Mounting Hole Distance 33.3 mm Features Strong metal shielding Reliable female socket contacts Easy soldering and installation High durability and long life Stable signal transmission Compact and lightweight design Applications Industrial automation Communication devices Computer peripherals VGA and display interfaces Instrumentation systems CNC and control panels Embedded electronic systems
