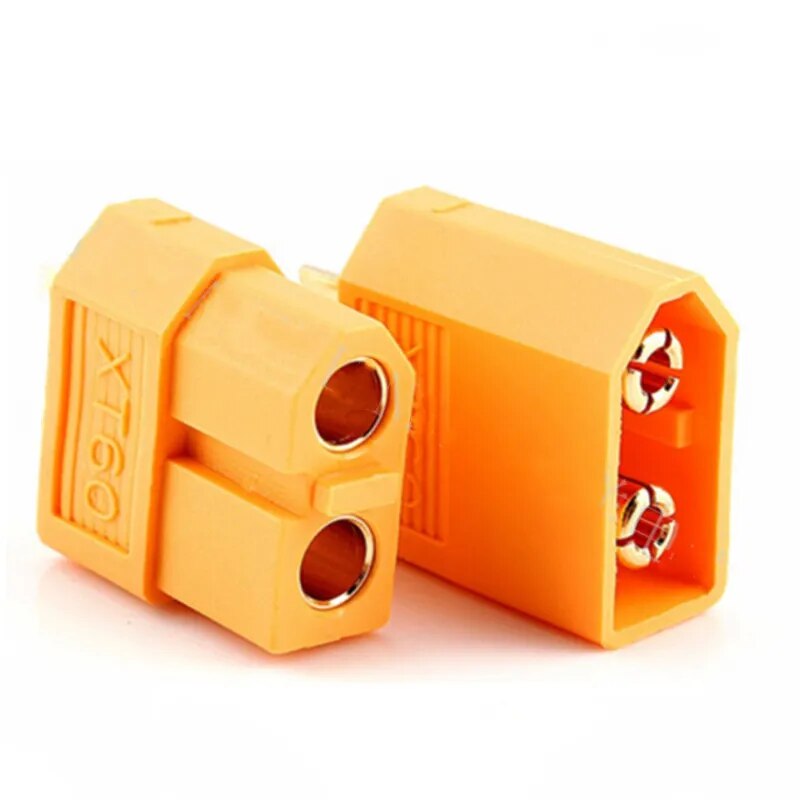

XT-60 CONNECTOR

Connector Type: XT60 (DC Power Connector)

Configuration: 2 Pin (Male + Female Pair)

Connection Type: Solder terminal

Locking Mechanism: Friction-fit (secure plug-in design)

Color: Yellow (standard for XT series)

⚡ Electrical Specifications

Rated Current: 60A (continuous)

Peak Current: Up to 100A (short duration)

Rated Voltage: Up to 500V DC

Contact Resistance: Very low (high efficiency power transfer)

🔧 Material Details

Housing Material: High-temperature Nylon (heat resistant)

Contact Material: Gold-plated brass connectors

Insulation: Excellent electrical insulation with anti-spark design

📏 Physical Specifications

Number of Pins: 2 (Positive + Negative)

Connector Weight: ~6g per pair

Wire Size Compatibility:

Typically supports 12AWG – 14AWG wires

Mounting Style: Inline cable mount

🌡️ Environmental Specifications

Operating Temperature: -20°C to +120°C

Heat Resistance: Suitable for high-current applications

Flame Retardant: Yes (nylon housing)
