PS-05 PUSH SWITCH

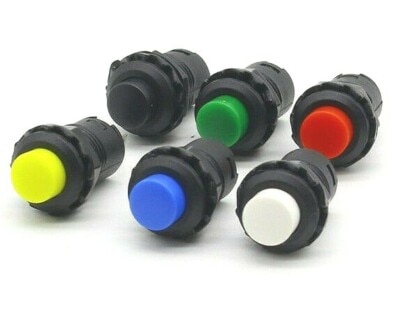

The PS-05 series push switch is a panel-mount momentary push button widely used in control panels, equipment enclosures, and industrial devices. It comes in multiple colors (Red, Green, Blue, Yellow, White, Black).

⚙️ Electrical Specifications

Contact Type: SPST – Normally Open (NO)

Rated Voltage: 125V AC

Rated Current: 3A (Resistive Load)

Contact Resistance: ≤ 20 mΩ

Insulation Resistance: ≥ 100 MΩ (typical)

Dielectric Strength: ~1000V AC (typical industry value)

🧩 Mechanical Specifications

Operation Type: Momentary (OFF-(ON)) / Push to ON

Number of Positions: 2

Actuator Type: Round / Square button

Operating Force: ~2–4 N (typical range)

Mechanical Life: ≥ 100,000 cycles

Electrical Life: ≥ 50,000 cycles

📏 Physical Specifications

Mounting Type: Panel Mount

Mounting Hole Diameter: Ø12 mm

Terminal Type: Solder / Lug terminals

Body Material: Plastic housing

Button Colors Available:

🔴 Red

🟢 Green

🔵 Blue

🟡 Yellow

⚪ White

⚫ Black
