PS-02 PUSH SWITCH
Description

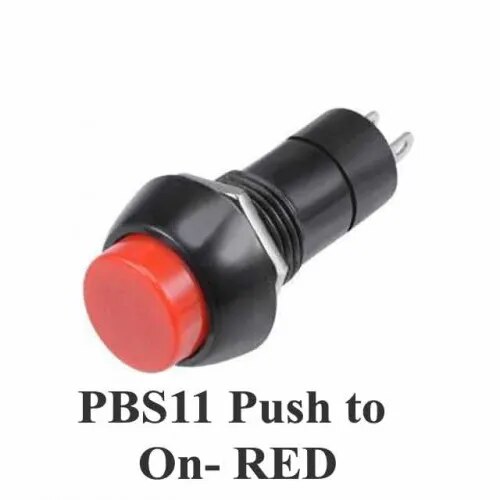

This is a panel-mount momentary push button switch with a round red actuator. It is designed for ON/OFF control applications, commonly used in electronic devices, control panels, and DIY circuits.
⚙️ Electrical Characteristics
Switch Type: SPST (Single Pole Single Throw)
Operation: Momentary (Push ON – Release OFF)
Rated Voltage: 125 VAC / 250 VAC
Rated Current: 1A – 3A (model dependent)
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ @ 500 VDC
Dielectric Strength: 1000 VAC for 1 minute
📐 Mechanical Specifications
Mounting Type: Panel Mount (threaded body with nut)
Mounting Hole Diameter: ~12 mm (standard)
Terminal Type: 2-pin solder/quick connect
Actuator Type: Round push button
Actuator Color: Red
Body Material: Nylon / Plastic
Contact Material: Copper alloy with silver plating
🔄 Switching Function
Normal State: OFF
When Pressed: ON
Release: Returns to OFF (spring return mechanism)
🌡️ Environmental Conditions
Operating Temperature: –20 °C to +85 °C
Electrical Life: ≥ 10,000 cycles
Mechanical Life: ≥ 50,000 cycles
🔥 Safety & Compliance
Flame Rating: UL94 V-0 (typical)
Compliance: RoHS (depending on manufacturer)
🔌 Applications
Power ON/OFF control
Electronic projects
Industrial control panels
Appliances
Test equipment
DIY circuits
📏 Mounting Details
Panel hole: 12 mm diameter
Fixing: Threaded body with hex nut & washer
Wiring: Solder terminals or push connectors
