push button switch in delhi

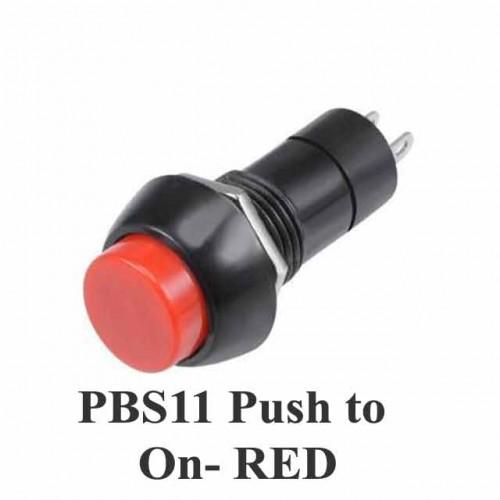

Based on the image, this appears to be a Miniature Panel Mount Momentary Push Button Switch (PBS-110/PBS-11A Type) with solder terminals. 5 Mini Push Button Switch – Full Specification Parameter Specification Product Type Miniature Push Button Switch Model PBS-110 / PBS-11A (Typical) Switch Function Momentary (OFF)-(ON) Contact Configuration SPST-NO Actuator Color Red Mounting Type Panel Mount Terminal Type Solder Lug Mounting Hole Diameter 7 mm Contact Rating 1A @ 250VAC Contact Resistance ≤ 50mΩ Insulation Resistance ≥ 100MΩ @ 500VDC Dielectric Strength 1000VAC / 1 Minute Operating Temperature -25°C to +85°C Mechanical Life 50,000 Cycles (Typical) Electrical Life 10,000 Cycles (Typical) Housing Material Metal & Thermoplastic Contact Material Silver-Plated Brass Mechanical Dimensions (Typical) Dimension Value Button Diameter 6 mm Mounting Hole 7 mm Thread Diameter M7 × 0.75 Thread Length 8 mm Overall Length 25 mm Body Diameter 8 mm Terminal Configuration Button ● │ ┌─────────┐ │ Switch │ └─────────┘ │ │ 1 2 Operation State Connection Released Open Circuit Pressed Closed Circuit Features Compact panel-mount design Nickel-plated threaded metal bushing Reliable momentary operation Easy solder connection Long mechanical life Suitable for low-current control circuits Applications Electronic Instruments DIY Projects Control Panels Test Equipment Audio Devices Power Control Circuits Industrial Electronics Hobby Electronics Typical Electrical Ratings 1A @ 250VAC 3A @ 125VAC 36VDC Maximum Switching Voltage 50mΩ Maximum Contact Resistance If you can provide the diameter of the mounting thread (7 mm, 8 mm, 10 mm, etc.) or a clearer side view, I can identify the exact model and provide more precise dimensions. I prefer this response ChatGPT Response 2 The component shown is a Miniature Panel-Mount Momentary Push Button Switch (commonly 8 mm–12 mm mounting size, SPST-NO type). Since no part number is visible, the specifications below are typical for this style. 4 Mini Push Button Switch – Full Specification Parameter Specification Product Type Miniature Push Button Switch Actuator Color Red Mounting Type Panel Mount Operation Momentary (Push ON, Release OFF) Contact Configuration SPST-NO (Normally Open) Number of Terminals 2 Terminal Type Solder Lug Mounting Hole Diameter 8 mm (Typical) Rated Voltage 125VAC / 250VAC Rated Current 1A – 3A Contact Resistance ≤ 50mΩ Insulation Resistance ≥ 100MΩ @ 500VDC Dielectric Strength 1000VAC for 1 Minute Electrical Life ≥ 10,000 Operations Mechanical Life ≥ 50,000 Operations Operating Temperature -20°C to +85°C Contact Material Silver-Plated Brass Housing Material Metal Body with Plastic Actuator Mechanical Dimensions (Typical) Dimension Value Mounting Hole 8 mm Button Diameter 7–10 mm Thread Diameter M8 × 0.75 Thread Length 6–8 mm Overall Length 25–30 mm Terminal Length 4–6 mm Pin Configuration Push Button ┌───────────┐ │ ● │ └───────────┘ | | T1 T2 Contact Operation State Connection Released Open Circuit Pressed T1 Connected to T2 Features Compact panel-mount design Metal threaded body Red actuator cap Low contact resistance Long mechanical life Easy solder-terminal connection Applications Electronic Equipment Control Panels Test Instruments DIY Projects Audio Equipment Industrial Controls Power Switching Circuits Signal Triggering Applications Typical Size: 8 mm panel-mount momentary push button switch with red cap and 2 solder terminals. If you can provide the mounting hole size (8 mm, 10 mm, or 12 mm) or any marking on the body, I can give more exact dimensions and ratings. I prefer this response

The PS-05 series push switch is a panel-mount momentary push button widely used in control panels, equipment enclosures, and industrial devices. It comes in multiple colors (Red, Green, Blue, Yellow, White, Black). ⚙️ Electrical Specifications Contact Type: SPST – Normally Open (NO) Rated Voltage: 125V AC Rated Current: 3A (Resistive Load) Contact Resistance: ≤ 20 mΩ Insulation Resistance: ≥ 100 MΩ (typical) Dielectric Strength: ~1000V AC (typical industry value) 🧩 Mechanical Specifications Operation Type: Momentary (OFF-(ON)) / Push to ON Number of Positions: 2 Actuator Type: Round / Square button Operating Force: ~2–4 N (typical range) Mechanical Life: ≥ 100,000 cycles Electrical Life: ≥ 50,000 cycles 📏 Physical Specifications Mounting Type: Panel Mount Mounting Hole Diameter: Ø12 mm Terminal Type: Solder / Lug terminals Body Material: Plastic housing Button Colors Available: 🔴 Red 🟢 Green 🔵 Blue 🟡 Yellow ⚪ White ⚫ Black

This is a panel-mount momentary push button switch with a round red actuator. It is designed for ON/OFF control applications, commonly used in electronic devices, control panels, and DIY circuits. ⚙️ Electrical Characteristics Switch Type: SPST (Single Pole Single Throw) Operation: Momentary (Push ON – Release OFF) Rated Voltage: 125 VAC / 250 VAC Rated Current: 1A – 3A (model dependent) Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ @ 500 VDC Dielectric Strength: 1000 VAC for 1 minute 📐 Mechanical Specifications Mounting Type: Panel Mount (threaded body with nut) Mounting Hole Diameter: ~12 mm (standard) Terminal Type: 2-pin solder/quick connect Actuator Type: Round push button Actuator Color: Red Body Material: Nylon / Plastic Contact Material: Copper alloy with silver plating 🔄 Switching Function Normal State: OFF When Pressed: ON Release: Returns to OFF (spring return mechanism) 🌡️ Environmental Conditions Operating Temperature: –20 °C to +85 °C Electrical Life: ≥ 10,000 cycles Mechanical Life: ≥ 50,000 cycles 🔥 Safety & Compliance Flame Rating: UL94 V-0 (typical) Compliance: RoHS (depending on manufacturer) 🔌 Applications Power ON/OFF control Electronic projects Industrial control panels Appliances Test equipment DIY circuits 📏 Mounting Details Panel hole: 12 mm diameter Fixing: Threaded body with hex nut & washer Wiring: Solder terminals or push connectors

Switch Mart India offers high-quality and durable Push Button Switches designed for industrial, commercial, and heavy-duty electrical applications. These switches are manufactured using premium-grade materials to ensure long-lasting performance, safe operation, and smooth functioning. This push button switch features a strong body construction with high-conductivity brass terminals that provide excellent electrical performance and reliable current flow. The sturdy actuator knob ensures easy manual operation, making it ideal for machinery control, automotive use, industrial panels, and equipment systems. 🔹 Key Features: Heavy-duty and robust construction High-quality brass terminals for strong conductivity Smooth push-pull operation Easy installation with secure mounting system Designed for long service life Suitable for industrial and automotive applications 🔹 Applications: Industrial machines Control panels Automotive electrical systems Battery cut-off systems Power control applications Switch Mart India ensures that every Push Button Switch is tested for quality, durability, and safety standards before delivery. With competitive pricing, timely delivery, and trusted service, Switch Mart India is a reliable supplier of premium electrical components across India. For bulk orders and dealership inquiries, Switch Mart India provides excellent support and customized solutions. If you want, I can also provide: Short description for website SEO keyword-rich description Technical specification format Catalog format content
