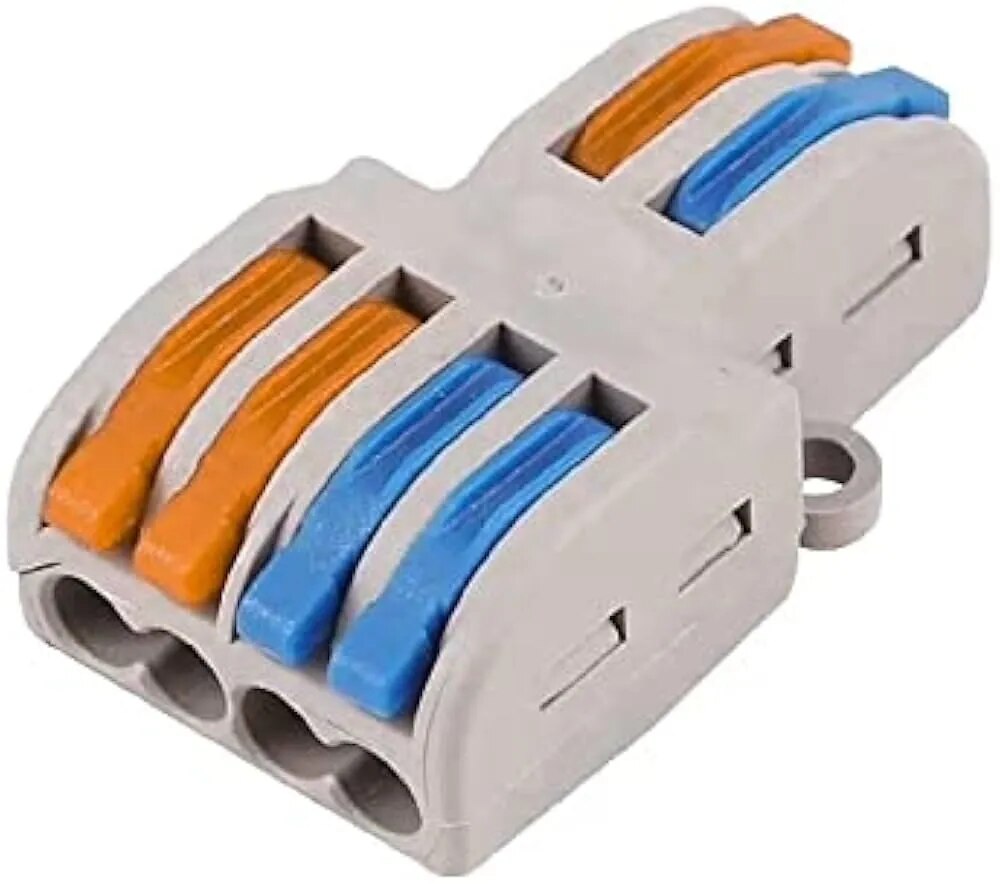

PCT CONNECTOR 224
In stock
Description
Product Type: Lever Wire Connector (PCT Type)
Model: PCT-214 (2 IN – 4 OUT)
No. of Ports: 4 Port
Configuration:
2 Input lines
4 Output terminals
Connection Type: Lever-operated spring clamp
Reusability: Yes (multiple use)
⚡ 2. Electrical Specification
Rated Voltage:
250V – 450V AC
Rated Current:
Up to 32A
Impulse Voltage: 4kV
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
🔌 3. Wire Compatibility
Wire Type:
Solid wire
Stranded wire
Flexible wire
Wire Size Range:
0.08 mm² to 4 mm² (28–12 AWG)
Strip Length:
9 – 12 mm
