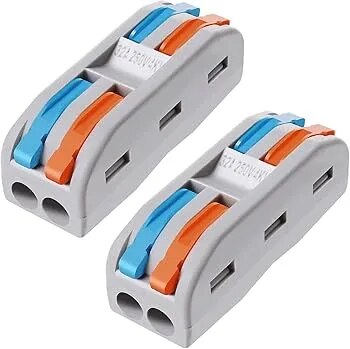

PCT CONNECTOR 222
In stock
Description
Model: PCT-222
Type: Lever Wire Connector / Quick Splice Terminal
Configuration: 2 Input + 2 Output (2 In – 2 Out)
Connection Method: Lever-operated spring clamp
Reusable: Yes (open/close multiple times)
2. Electrical Specifications
Rated Voltage: Up to 450V AC/DC
Rated Current: Up to 32A
Contact Resistance: Low (spring pressure contact)
Insulation Resistance: High
3. Wire Compatibility
Wire Size Range:
0.08 mm² to 4.0 mm²
AWG Range: 28 – 12 AWG
