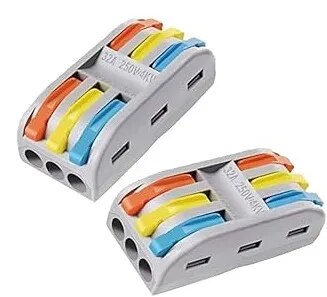

PCT CONNECTOR 223
In stock
Description
Model Series: PCT-223
Type: Lever Wire Connector / Terminal Block
Configuration: 3 Port (3 In / Common connection)
Connection Method: Lever-operated spring clamp
Mounting Type: Inline / Free wiring
Reusable: Yes
2. Electrical Specifications
Rated Voltage: 250V – 450V AC/DC
Rated Current: Up to 32A
Impulse Voltage: 4kV (typical)
Contact Resistance: Very low (spring pressure contact)
Insulation Resistance: High
3. Wire Compatibility
Wire Size Range:
0.08 mm² to 4.0 mm²
AWG Range: 28 – 12 AWG
