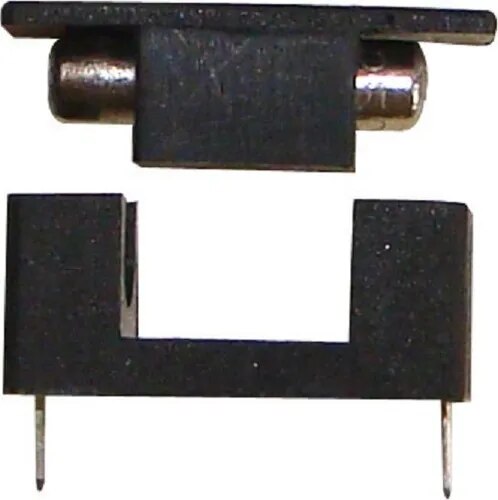

PBF-4 FUSE HOLDER
In stock
Description
General Description
The PBF-4 fuse holder is a PCB-mounted, semi-enclosed fuse holder designed for 5×20 mm glass or ceramic fuses. It ensures secure mechanical retention and reliable electrical connection for overcurrent protection in electronic circuits.
⚙️ Electrical Characteristics
Rated Voltage: 250 VAC
Rated Current: 6.3 A
Contact Resistance: ≤ 10 mΩ
Insulation Resistance: ≥ 1000 MΩ @ 500 VDC
Dielectric Strength: 2 kVAC for 1 minute
📐 Mechanical Specifications
Fuse Compatibility: 5 mm × 20 mm cartridge fuse
Mounting Type: PCB Through-Hole
Terminal Type: Solder terminals
Holder Type: Semi-enclosed design
Weight: ~2.5 g
🧱 Materials
Housing: Polyamide (Nylon GF / glass-filled)
Contact Material: Brass
Plating: Tin plated
