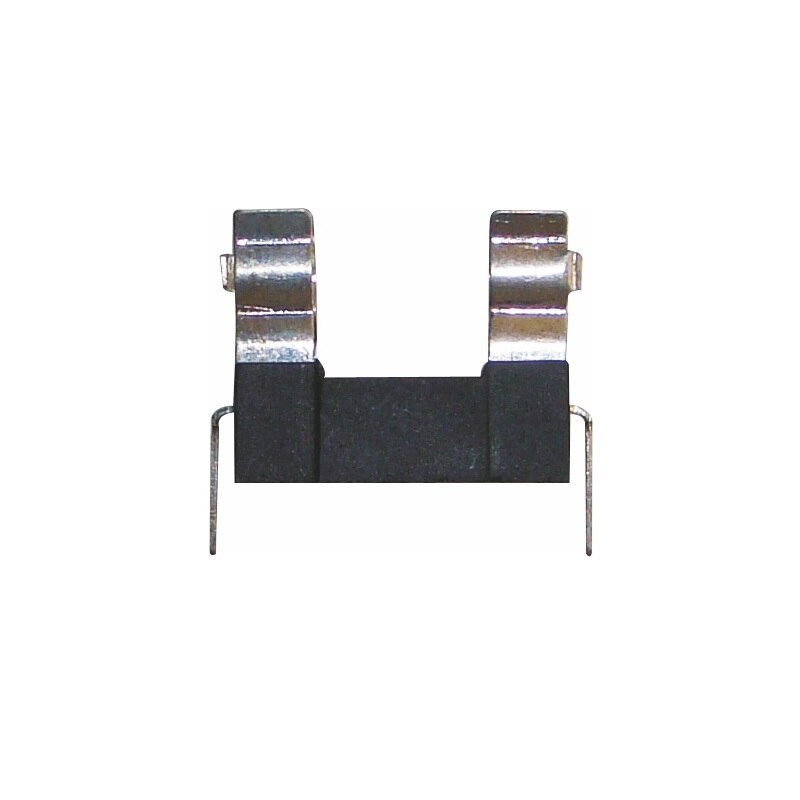

PBF-1 FUSE HOLDER
In stock
Description
Rated Voltage: 250 VAC
Rated Current: 6 A – 10 A (typical)
Contact Resistance: ≤ 10 mΩ
Insulation Resistance: ≥ 100 MΩ @ 500 VDC
Dielectric Strength: 1500 VAC / 1 minute
(Ratings aligned with standard 5×20 mm fuse systems )
📐 Mechanical Specifications
Fuse Size Compatibility: 5 mm × 20 mm
Mounting Type: PCB Through-Hole
Terminal Pitch: ~22–25 mm (typical)
Clip Material: Phosphor bronze / spring steel
Plating: Nickel or tin plated
Housing Material: Flame-retardant plastic (PA66 / Nylon)
Color: Black
🌡️ Environmental Conditions
Operating Temperature: –40 °C to +85 °C
Storage Temperature: –10 °C to +60 °C
Humidity: ≤ 85% RH
