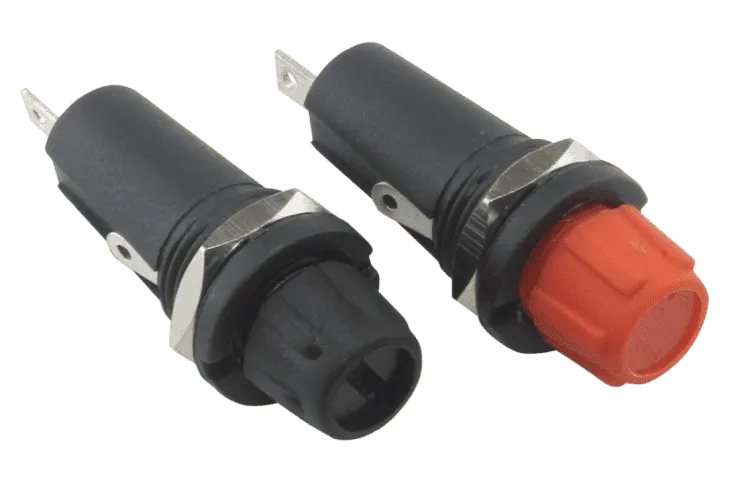

ELCOM FH-1 FUSE HOLDER
In stock
Description
General Description
Type: Panel Mount Fuse Holder
Mounting: Screw-type (Panel mounting)
Cap Type: Screw-in cap
Application: For protection using replaceable cartridge fuse
⚡ Electrical Characteristics
Rated Current: 6.3A
Rated Voltage: 250V AC
Contact Resistance: ≤ 10 mΩ (initial)
Insulation Resistance: ≥ 1000 MΩ (at 500V DC)
Dielectric Strength: 2 KV AC for 1 minute
🌡️ Operating Characteristics
Operating Temperature: -20°C to +85°C
Soldering Temperature: 270°C (max 5 sec)
Panel Thickness: Max 3.0 mm
Fuse Size: 5 × 20 mm
Terminal Type: Solder terminals
