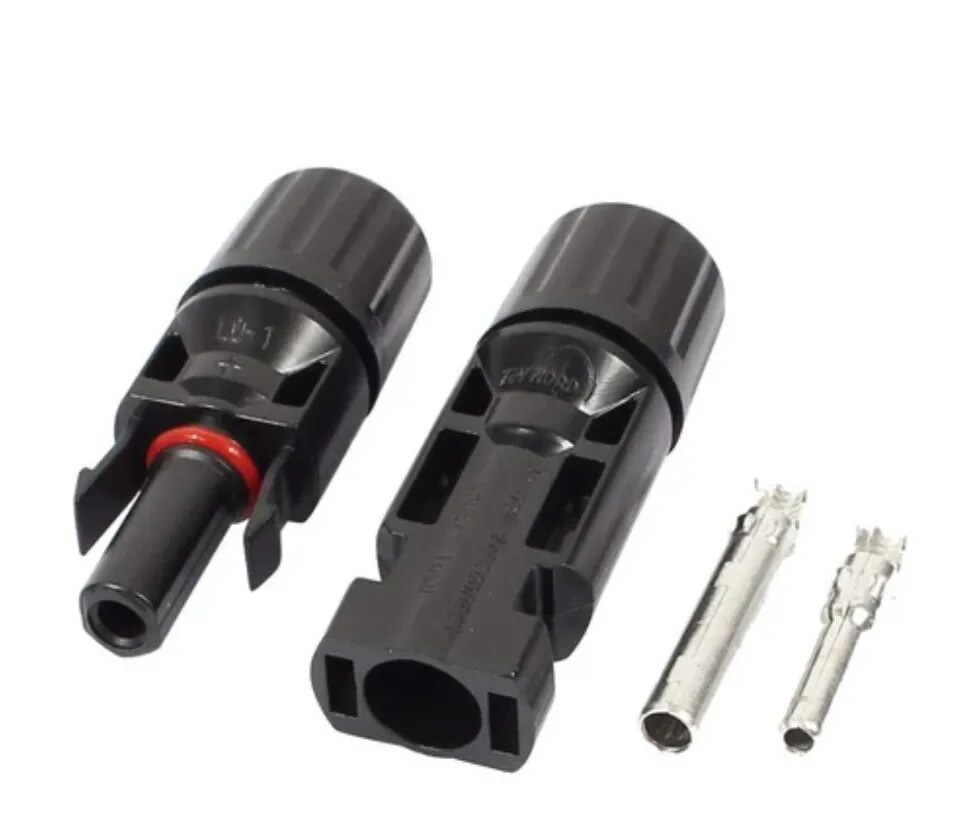

MC 4 Connector

In the rapidly growing solar energy industry, reliable and efficient electrical connections are crucial for optimal system performance. The MC4 Connector is one of the most widely used connectors in photovoltaic (PV) systems, known for its durability, safety, and ease of installation.

MC4 connectors are specially designed to connect solar panels securely, ensuring efficient power transfer while protecting against environmental factors such as dust, moisture, and UV exposure. They are an essential component in both residential and commercial solar installations.

What is an MC4 Connector?

An MC4 Connector is a single-contact electrical connector commonly used for connecting solar panels in photovoltaic systems. The term “MC4” stands for “Multi-Contact, 4 mm pin diameter,” which refers to its contact design.

These connectors provide a secure and weatherproof connection between solar cables, enabling efficient DC power transmission from solar panels to inverters and other system components.

Key Features of MC4 Connectors

1. Weatherproof and Waterproof Design

MC4 connectors are designed with IP67 or higher protection ratings, making them resistant to water, dust, and harsh outdoor conditions.

2. UV and Heat Resistance

Made from high-quality materials, these connectors can withstand prolonged exposure to sunlight and extreme temperatures.

3. Secure Locking Mechanism

Equipped with a snap-in locking system that prevents accidental disconnection and ensures safety.

4. High Current and Voltage Capacity

Capable of handling high DC voltages and currents, making them suitable for large solar installations.

5. Easy Installation

Designed for quick and tool-friendly installation, reducing setup time and labor costs.

Technical Specifications (Typical)

Rated Voltage: Up to 1000V / 1500V DC

Rated Current: Up to 45A (depending on cable size)

Contact Resistance: Very low for efficient conductivity

Protection Rating: IP67 / IP68

Temperature Range: -40°C to +90°C

Contact Material: Tinned copper

Insulation Material: PPO / PA

Applications of MC4 Connectors

Solar Power Systems

Used to connect solar panels, inverters, and charge controllers in residential, commercial, and utility-scale installations.

Rooftop Solar Installations

Ideal for home and building rooftop solar systems.

Solar Farms

Widely used in large-scale solar power plants for reliable connections.

Off-Grid Systems

Essential for remote solar setups such as cabins, rural electrification, and backup systems.

Portable Solar Devices

Used in portable solar panels and solar generators.

Benefits of Using MC4 Connectors

सुरक्षित और मजबूत कनेक्शन (Safe and secure connection)

High efficiency in power transmission

Long service life

Easy maintenance and replacement

Resistance to environmental damage

Reduced power loss

Importance in Solar Energy Systems

MC4 connectors play a vital role in ensuring the efficiency and safety of solar power systems. Poor-quality connectors can lead to power loss, overheating, and even system failure. High-quality MC4 connectors ensure stable energy flow and help maximize the output of solar panels.

They are compatible with most solar panels and components available in the market, making them a universal solution for PV installations.

Installation Guidelines

Ensure connectors are properly crimped to cables

Use compatible MC4 male and female connectors

Always switch off the system before installation

Avoid mixing different brands unless certified compatible

Use proper tools for secure assembly

Regularly inspect for wear or damage

Why Choose High-Quality MC4 Connectors?

Choosing premium MC4 connectors ensures:

Reliable long-term performance

Enhanced system safety

Compliance with international standards

Better resistance to harsh weather conditions

Reduced maintenance costs

Future Trends in Solar Connectors

With the advancement of renewable energy technologies, MC4 connectors are evolving with:

Higher voltage and current capabilities

Improved locking and safety mechanisms

Enhanced materials for extreme environments

Smart connectors for monitoring performance

Conclusion

The MC4 Connector is an essential component in modern solar power systems, offering reliable, safe, and efficient electrical connections. Its robust design, ease of use, and compatibility make it the preferred choice for solar installations worldwide.

Whether for residential rooftops or large-scale solar farms, MC4 connectors ensure optimal performance and long-term durability of photovoltaic systems.
