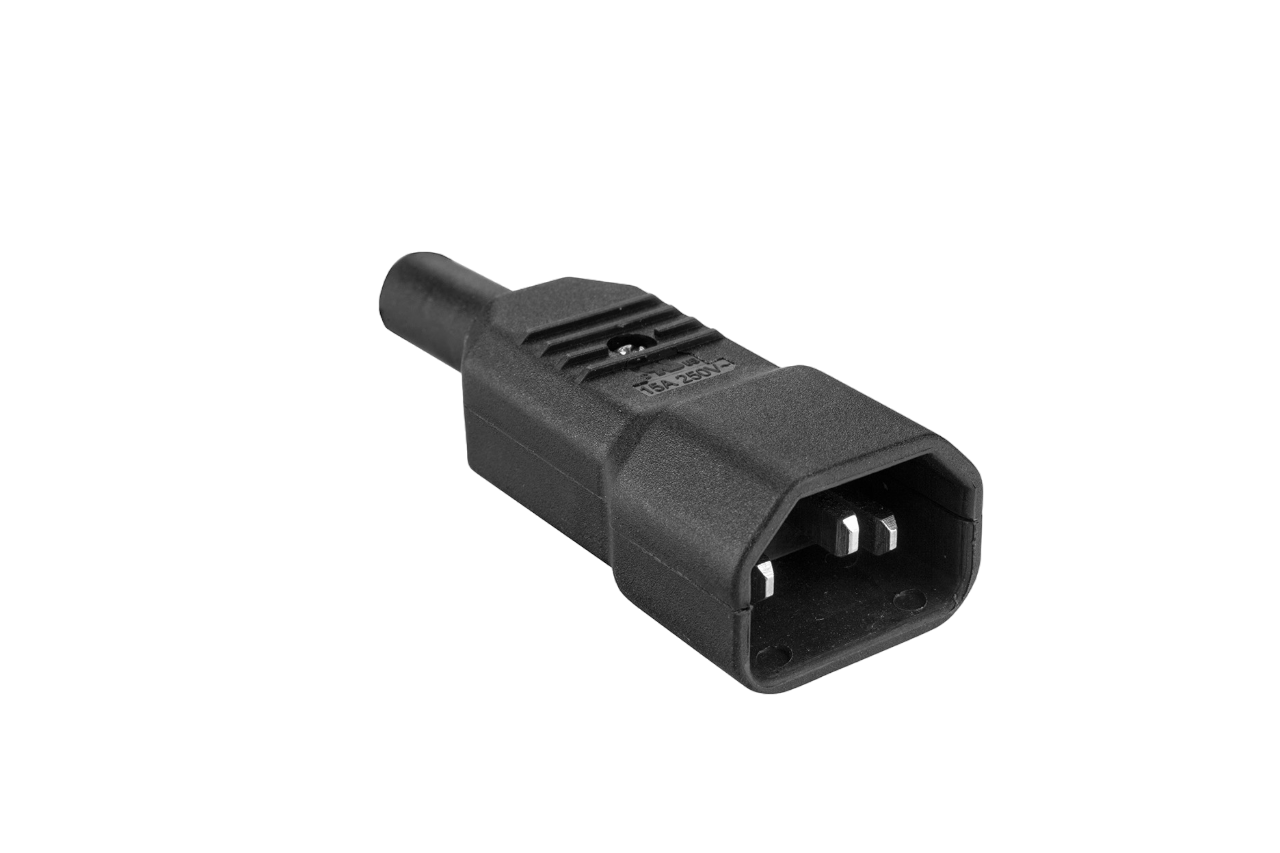

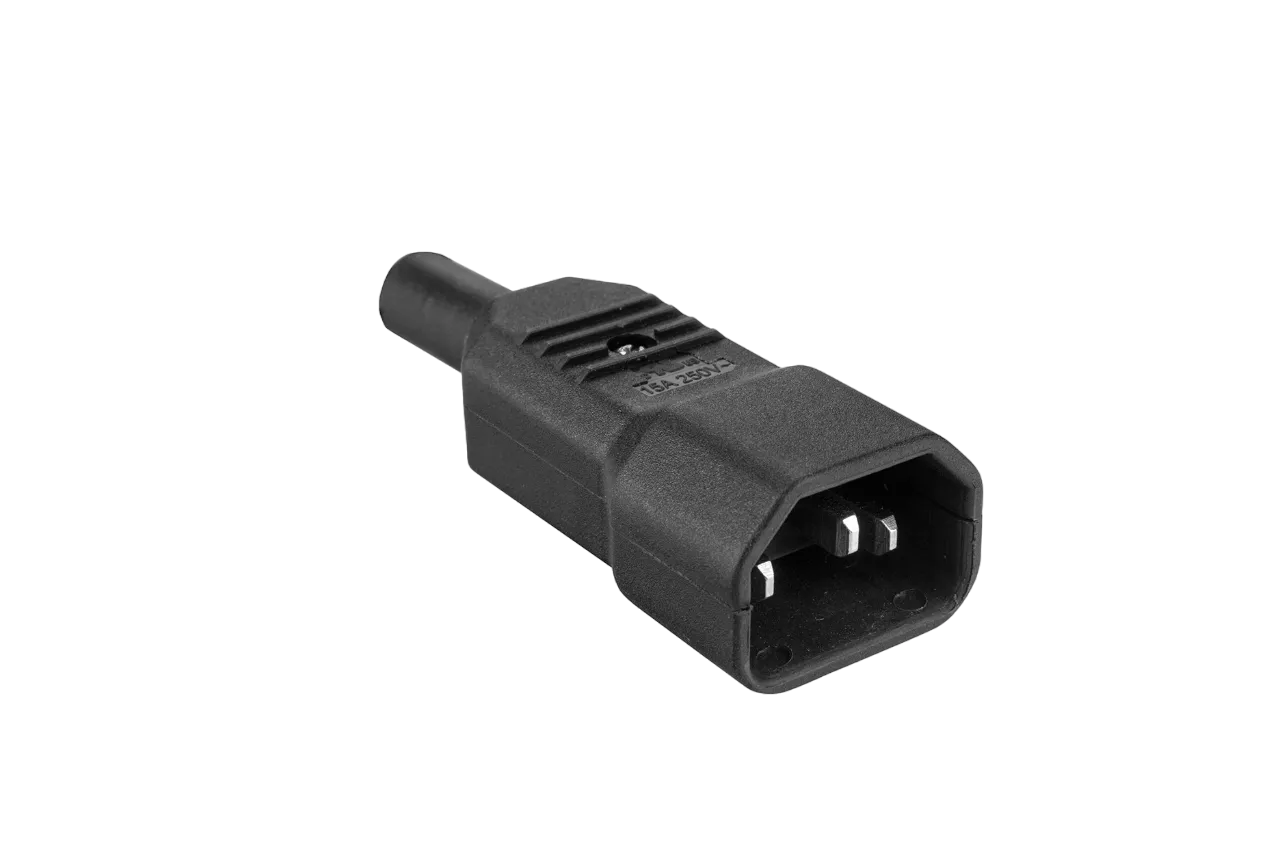

ELCOM EMI-40

Product Type: Rewireable IEC Power Connector

Connector Type: IEC 60320 (C13 / C14 compatible series)

Mounting: Cable mount (inline / free hanging)

Application: Computers, UPS, power supplies, industrial equipment

⚡ Electrical Specifications

Rated Voltage: 250 VAC

Rated Current: 10A (VDE) / 15A (UL)

Contact Resistance: ≤ 10 mΩ (initial)

Insulation Resistance: ≥ 100 MΩ (at 500V DC)

Dielectric Strength: 2 kV AC for 1 minute

🔧 Mechanical & Functional Specifications

Termination Type: Screw terminal

Wire Size:

Min: 0.75 sq.mm

Max: 1.0 sq.mm

Screw Torque: ~4 kg·cm

Operating Temperature:

0°C to 65°C (UL)

0°C to 70°C (VDE)

Up to 125°C (optional variant)

🧱 Material Specifications

Housing / Body: Nylon-6 (20% Glass Filled, Flame Class V-2)

Cable Guide: PVC

Contacts: Brass with Nickel Plating

Terminal Screws: Mild Steel (Zinc Plated)
