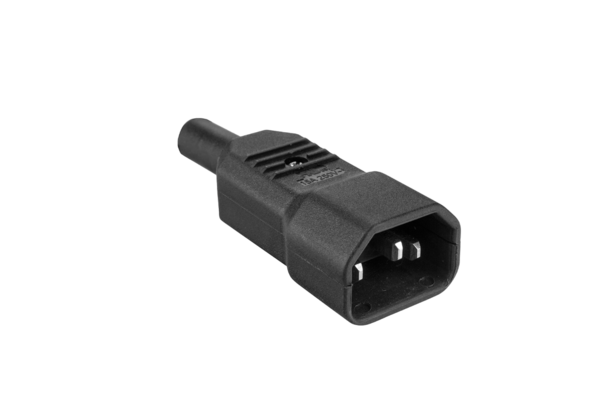

Product Type: Rewireable IEC Power Connector Connector Type: IEC 60320 (C13 / C14 compatible series) Mounting: Cable mount (inline / free hanging) Application: Computers, UPS, power supplies, industrial equipment ⚡ Electrical Specifications Rated Voltage: 250 VAC Rated Current: 10A (VDE) / 15A (UL) Contact Resistance: ≤ 10 mΩ (initial) Insulation Resistance: ≥ 100 MΩ (at 500V DC) Dielectric Strength: 2 kV AC for 1 minute 🔧 Mechanical & Functional Specifications Termination Type: Screw terminal Wire Size: Min: 0.75 sq.mm Max: 1.0 sq.mm Screw Torque: ~4 kg·cm Operating Temperature: 0°C to 65°C (UL) 0°C to 70°C (VDE) Up to 125°C (optional variant) 🧱 Material Specifications Housing / Body: Nylon-6 (20% Glass Filled, Flame Class V-2) Cable Guide: PVC Contacts: Brass with Nickel Plating Terminal Screws: Mild Steel (Zinc Plated)
