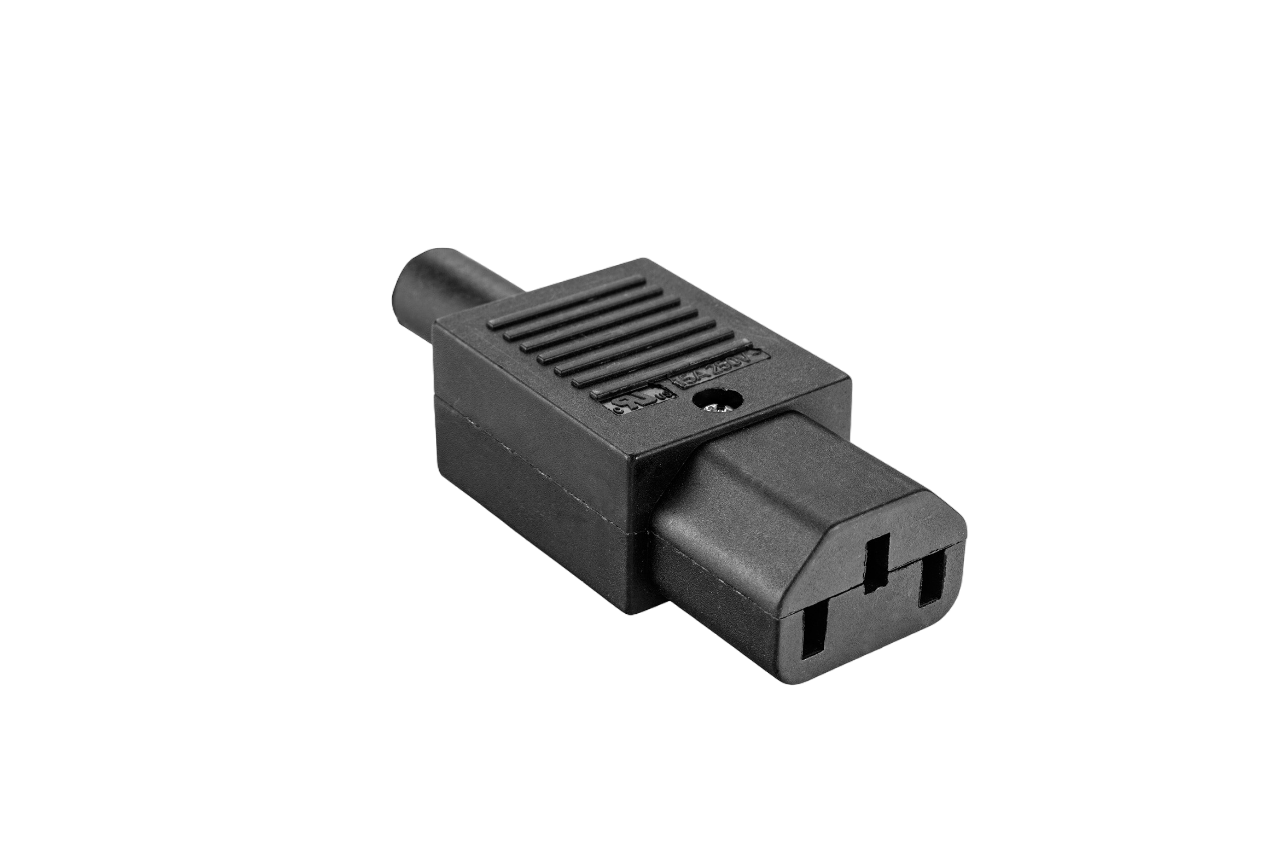

EMO-40 ELCOM

Model: ELCOM EMO-40-X

Type: Rewirable IEC Connector (C13 Female)

Application: Power connection for computers, SMPS, UPS, electronic equipment

⚡ Electrical Specifications

Rated Voltage: 250 VAC

Rated Current:

10A (VDE)

15A (UL)

Contact Resistance: ≤ 10 mΩ

Insulation Resistance: ≥ 100 MΩ @ 500V DC

Dielectric Strength (Hi-Pot): 2 KV AC (1 minute)

🔧 Mechanical / Functional Specifications

Connector Type: Free hanging (inline)

Number of Pins: 3 (L, N, Earth)

Termination Type: Screw / pillar-type wire insertion

Cable Size:

Min: 0.75 sq.mm

Max: 1.0 sq.mm

Screw Torque: 4 kg·cm

Mounting: Cable mount (rewirable)

🌡️ Operating Conditions

Operating Temperature:

0°C to 70°C (VDE)

0°C to 65°C (UL)

Up to 125°C (special version)

🧱 Material Details

Body & Cable Clamp: Nylon-6, Glass Filled (GF 20%), UL94 V-2

Cable Guide: PVC

Contacts/Terminals: Brass with Nickel Plating

Screws: Mild Steel with Zinc Plating

📏 Standards & Approvals

Standards:

IEC 60320-1

IEC 60320-3

UL 498

CSA C22.2 No.182.3

Approvals: VDE, cULus

Compliance: CE, RoHS
