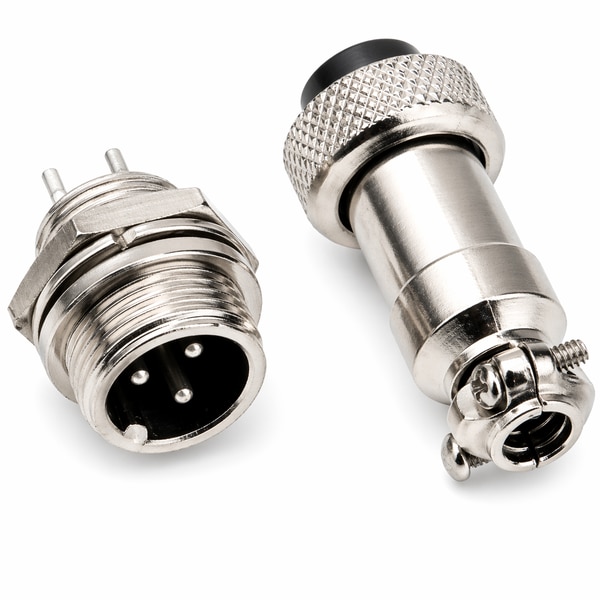

Product Name: GX12 3 Pin Connector Type: Circular Metal Aviation Connector Configuration: 3 Pin (Male + Female Set) Mounting Type: Male: Panel Mount (thread + nut fixing) Female: Cable Mount (screw lock type) Locking System: Threaded coupling (anti-vibration) ⚡ 2. Electrical Specifications Rated Voltage: 125V – 250V AC/DC Rated Current: 3A – 5A Contact Resistance: ≤ 5–10 mΩ Insulation Resistance: ≥ 1000 MΩ Withstand Voltage: 1500V AC / 1 min 🔩 3. Mechanical Specifications Number of Pins: 3 Connection Type: Solder Terminal Coupling Type: Threaded Lock (M12) Mating Life: ≥ 500 cycles Wire Range: 0.5 – 1.0 mm² (22–18 AWG) 🧱 4. Material Details Housing: Zinc Alloy / Nickel-Plated Brass Contacts: Brass / Phosphor Bronze (Nickel/Silver plated) Insulator: Bakelite / PA66 / Nylon 📏 5. Dimensions (Approx.) Thread Size: M12 Panel Cutout: 12 mm Connector Diameter: ~12–14 mm Cable Plug Length: ~40–50 mm
