GX-12 3PIN

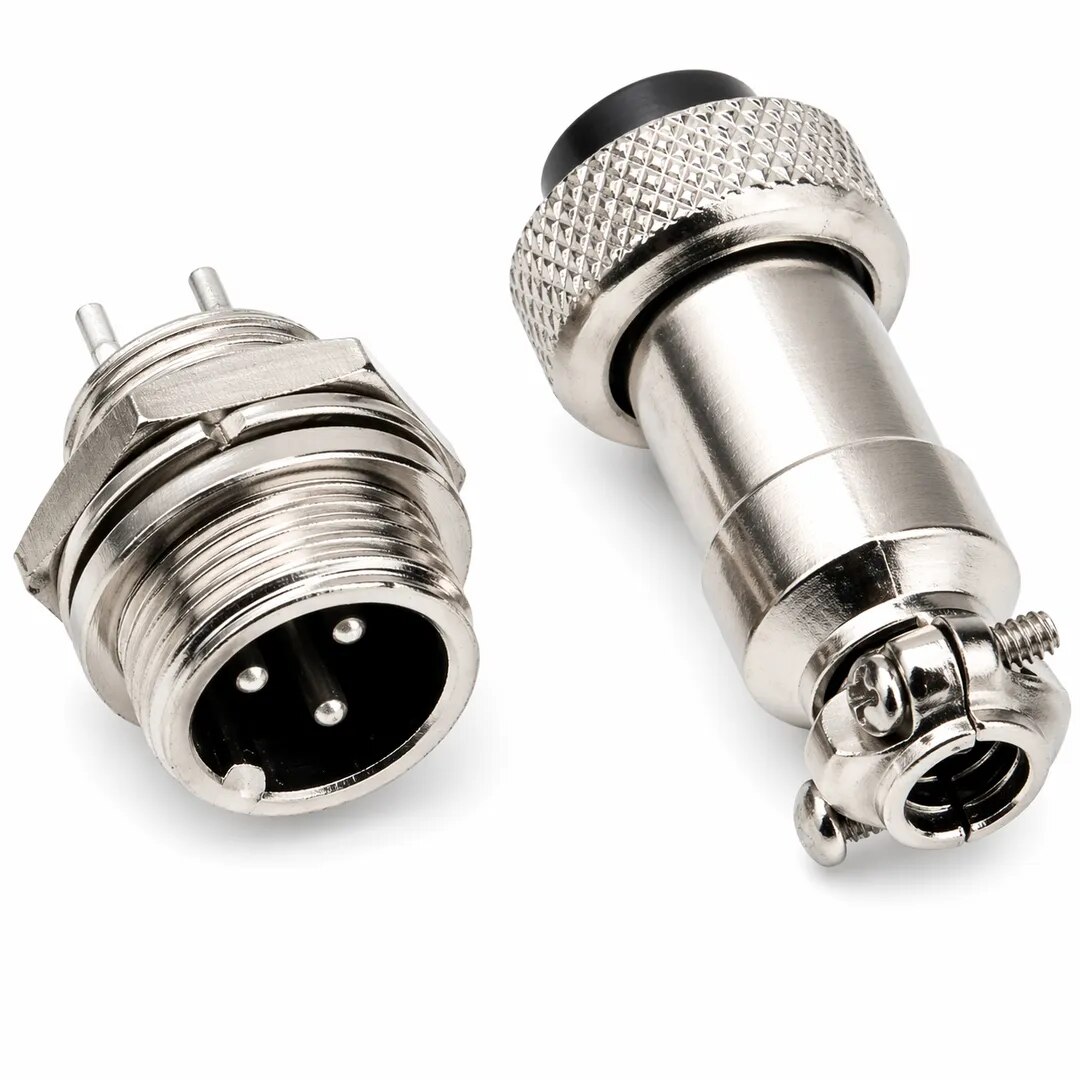

Product Name: GX12 3 Pin Connector

Type: Circular Metal Aviation Connector

Configuration: 3 Pin (Male + Female Set)

Mounting Type:

Male: Panel Mount (thread + nut fixing)

Female: Cable Mount (screw lock type)

Locking System: Threaded coupling (anti-vibration)

⚡ 2. Electrical Specifications

Rated Voltage: 125V – 250V AC/DC

Rated Current: 3A – 5A

Contact Resistance: ≤ 5–10 mΩ

Insulation Resistance: ≥ 1000 MΩ

Withstand Voltage: 1500V AC / 1 min

🔩 3. Mechanical Specifications

Number of Pins: 3

Connection Type: Solder Terminal

Coupling Type: Threaded Lock (M12)

Mating Life: ≥ 500 cycles

Wire Range: 0.5 – 1.0 mm² (22–18 AWG)

🧱 4. Material Details

Housing: Zinc Alloy / Nickel-Plated Brass

Contacts: Brass / Phosphor Bronze (Nickel/Silver plated)

Insulator: Bakelite / PA66 / Nylon

📏 5. Dimensions (Approx.)

Thread Size: M12

Panel Cutout: 12 mm

Connector Diameter: ~12–14 mm

Cable Plug Length: ~40–50 mm
