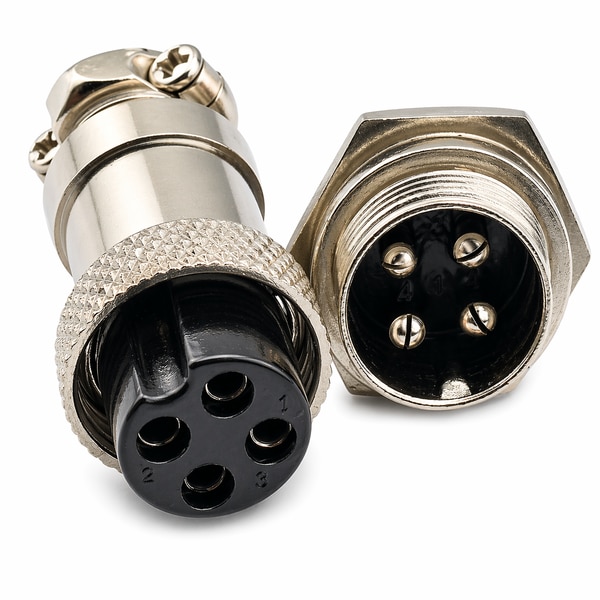

1. General Details Product Name: Load Cell Connector 4 Pin Type: Circular Metal Aviation Connector (Male + Female) Configuration: 4 Pin Mounting Type: Male: Panel Mount (thread + nut fixing) Female: Cable Mount (screw locking type) Locking System: Threaded coupling (anti-vibration secure) ⚡ 2. Electrical Specifications Rated Voltage: 250V AC Rated Current: 5A – 10A (typical for GX series) Contact Resistance: ≤ 10–20 mΩ Insulation Resistance: ≥ 1000 MΩ Withstand Voltage: 1500V AC / 1 min 🔩 3. Mechanical Specifications Number of Pins: 4 Connection Type: Solder Type (rear termination) Mating Cycle Life: ≥ 500 cycles Wire Size: 0.5 mm² – 1.5 mm² (22–16 AWG) Locking Type: Screw ring (knurled grip) 🧱 4. Material Details Housing: Nickel-Plated Brass / Zinc Alloy Contacts (Pins): Brass / Copper Alloy (Nickel plated) Insulator: Bakelite / PA66 / Nylon (Black insert) Sealing: Basic (non-waterproof, unless IP-rated variant) 📏 5. Dimensions (Approx.) (Typical GX16-4 reference size) Panel Cutout: 16 mm Connector Diameter: ~16–18 mm Cable Plug Length: 45–55 mm Thread Size: M16 🌡️ 6. Temperature Range Operating Temperature: -20°C to +85°C 🔌 7. Pin Configuration (Load Cell Standard) Typical 4-wire load cell wiring: Pin 1 → E+ (Excitation +) Pin 2 → E– (Excitation –) Pin 3 → S+ (Signal +) Pin 4 → S– (Signal –)
