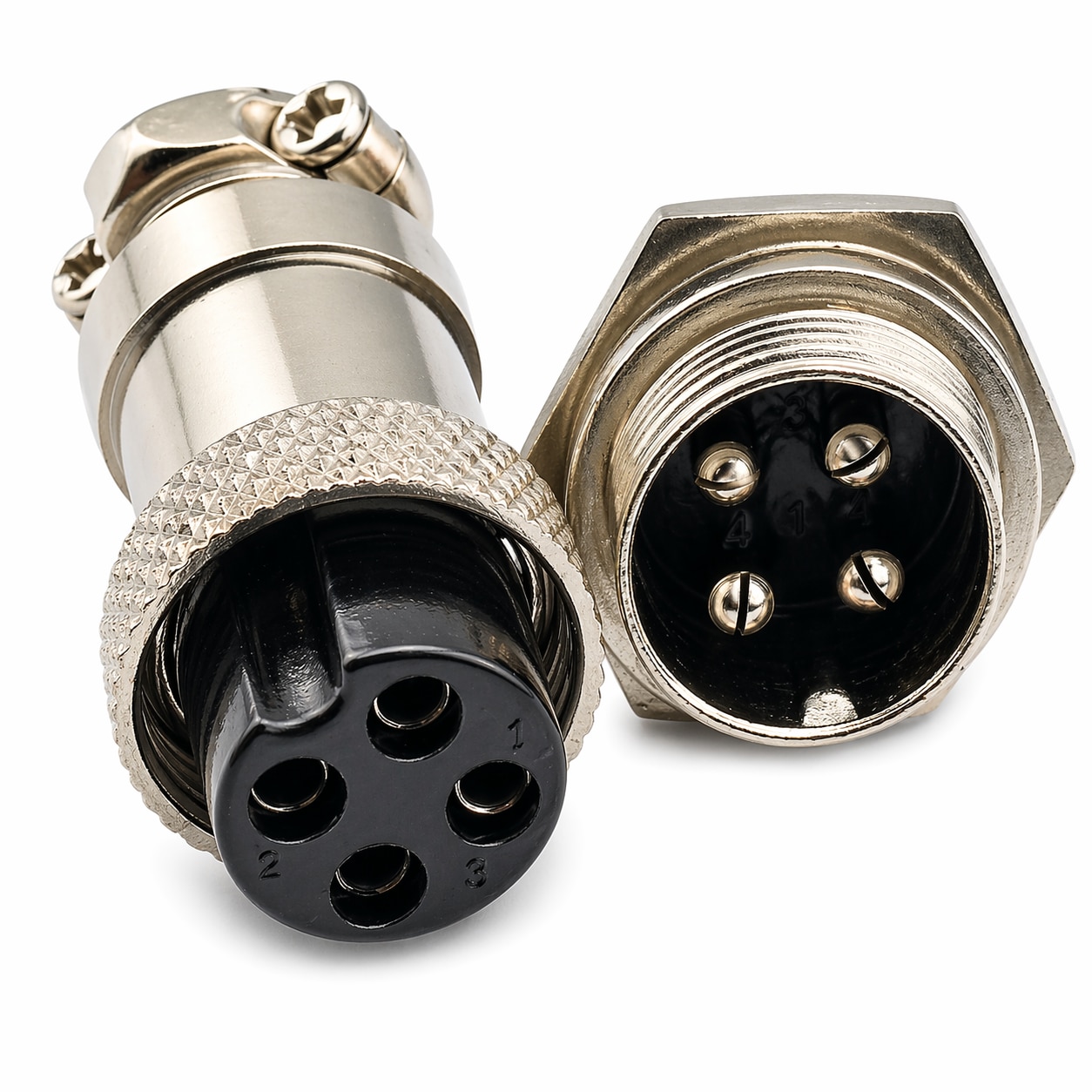

LOAD CELL CONNECTOR 4PIN

1. General Details

Product Name: Load Cell Connector 4 Pin

Type: Circular Metal Aviation Connector (Male + Female)

Configuration: 4 Pin

Mounting Type:

Male: Panel Mount (thread + nut fixing)

Female: Cable Mount (screw locking type)

Locking System: Threaded coupling (anti-vibration secure)

⚡ 2. Electrical Specifications

Rated Voltage: 250V AC

Rated Current: 5A – 10A (typical for GX series)

Contact Resistance: ≤ 10–20 mΩ

Insulation Resistance: ≥ 1000 MΩ

Withstand Voltage: 1500V AC / 1 min

🔩 3. Mechanical Specifications

Number of Pins: 4

Connection Type: Solder Type (rear termination)

Mating Cycle Life: ≥ 500 cycles

Wire Size: 0.5 mm² – 1.5 mm² (22–16 AWG)

Locking Type: Screw ring (knurled grip)

🧱 4. Material Details

Housing: Nickel-Plated Brass / Zinc Alloy

Contacts (Pins): Brass / Copper Alloy (Nickel plated)

Insulator: Bakelite / PA66 / Nylon (Black insert)

Sealing: Basic (non-waterproof, unless IP-rated variant)

📏 5. Dimensions (Approx.)

(Typical GX16-4 reference size)

Panel Cutout: 16 mm

Connector Diameter: ~16–18 mm

Cable Plug Length: 45–55 mm

Thread Size: M16

🌡️ 6. Temperature Range

Operating Temperature: -20°C to +85°C

🔌 7. Pin Configuration (Load Cell Standard)

Typical 4-wire load cell wiring:

Pin 1 → E+ (Excitation +)

Pin 2 → E– (Excitation –)

Pin 3 → S+ (Signal +)

Pin 4 → S– (Signal –)
