22MM METAL PUSH SWITCH
In stock
Description
General Information
Product Type: Metal Push Button Switch
Mounting Size: 22mm (panel cut-out diameter)
Operation Type:
Momentary (push ON, release OFF)
Latching (push ON, push again OFF)

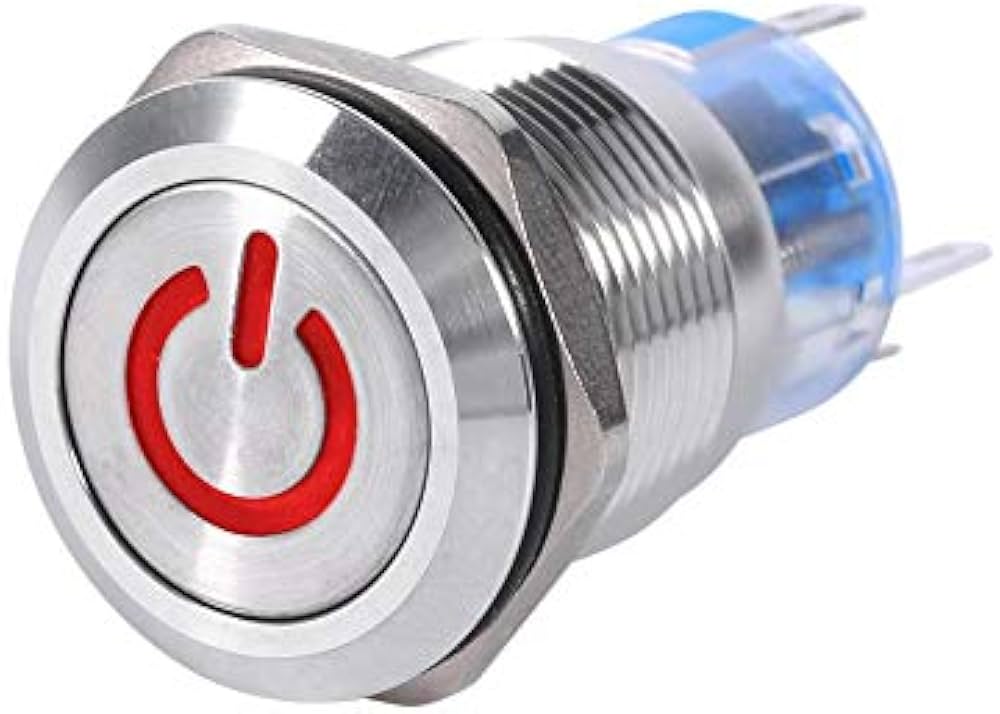

Head Type: Flat / Power symbol (as shown in image)
Mounting Style: Panel mount (threaded body + nut)
2. Electrical Specification
Rated Voltage:
12V / 24V DC (LED type)
110V / 220V AC (depends on model)
Rated Current:
3A to 10A (standard)
Up to 20A (heavy-duty models)
Contact Configuration:
1NO (Normally Open)
1NC (Normally Closed)
1NO + 1NC (common type)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 1000MΩ
Dielectric Strength: 1500VAC
