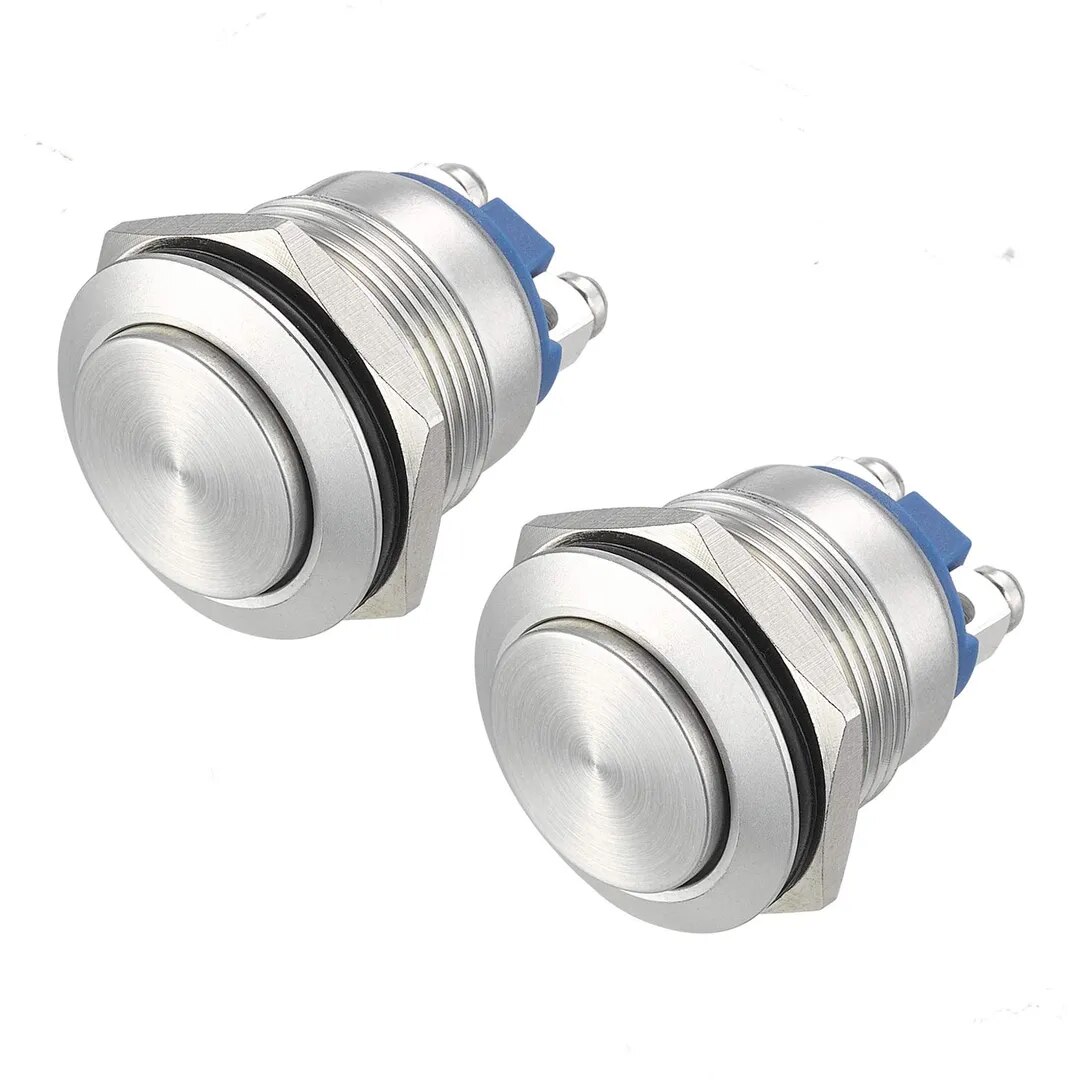

19MM METAL PUSH SWITCH 2PIN
In stock
Description
Product Type: Metal Push Button Switch (Non-illuminated)
Mounting Size: 19mm panel cut-out
Operation Type: Momentary (Push ON, Release OFF)
Contact Configuration: SPST (1NO – Normally Open)
Pin Type: 2 Pin terminals
Head Type: Flat metal button
Mounting: Panel mount with threaded body
2. Electrical Specifications
Rated Voltage: Up to 250V AC / 36V DC
Rated Current:
3A – 5A (typical)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ – 1000MΩ
Dielectric Strength: ~1500V – 2000V
3. Mechanical Specifications
Mechanical Life:
Up to 500,000 – 1,000,000 cycles
Electrical Life: ≥ 50,000 cycles
Operation Force: ~2.5N – 4N
Travel Distance: ~2–3 mm
Depth (with terminals): ~27 mm
