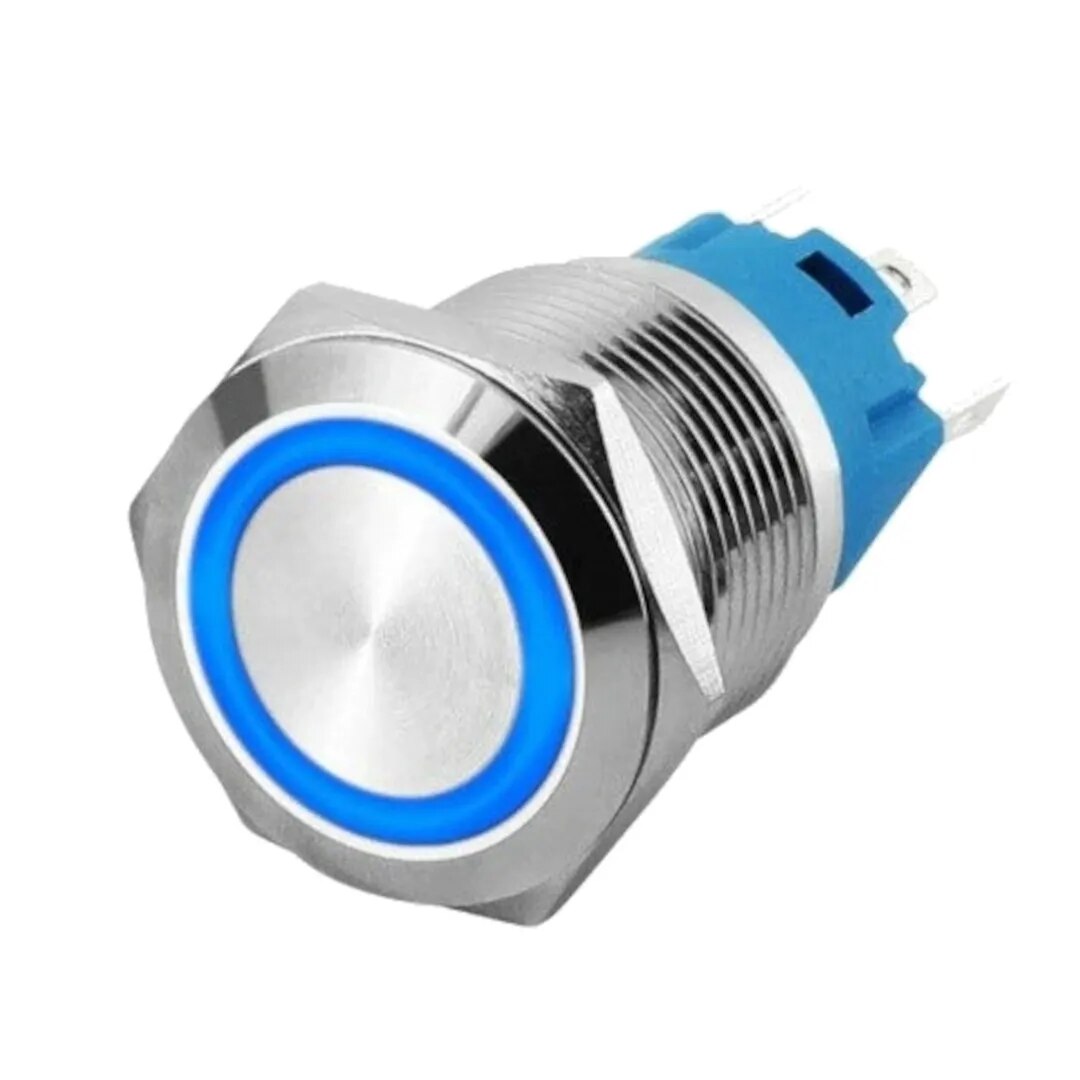

19MM METAL PUSH SWITCH
In stock
Description
Product Type: Metal Push Button Switch (Anti-vandal, illuminated)
Mounting Size: 19mm panel cut-out
Operation Type:
Momentary (push & release)
Latching (push ON / push OFF)
Head Type: Flat head with LED ring
Mounting: Threaded body with hex nut
2. Electrical Specifications
Rated Voltage:
12V – 24V DC (LED)
Up to 250V AC (switch contacts)
Rated Current:
3A – 10A (depending on model)
Load Rating: ~3A @ 220V AC
Contact Type:
SPDT (1NO + 1NC) or SPST
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
3. LED Specifications
LED Type: Ring illumination
LED Color: Blue (as shown)
LED Voltage Options:
3V / 6V / 12V / 24V
LED Life: ≥ 50,000 hours
LED Pins: Separate 2 terminals
