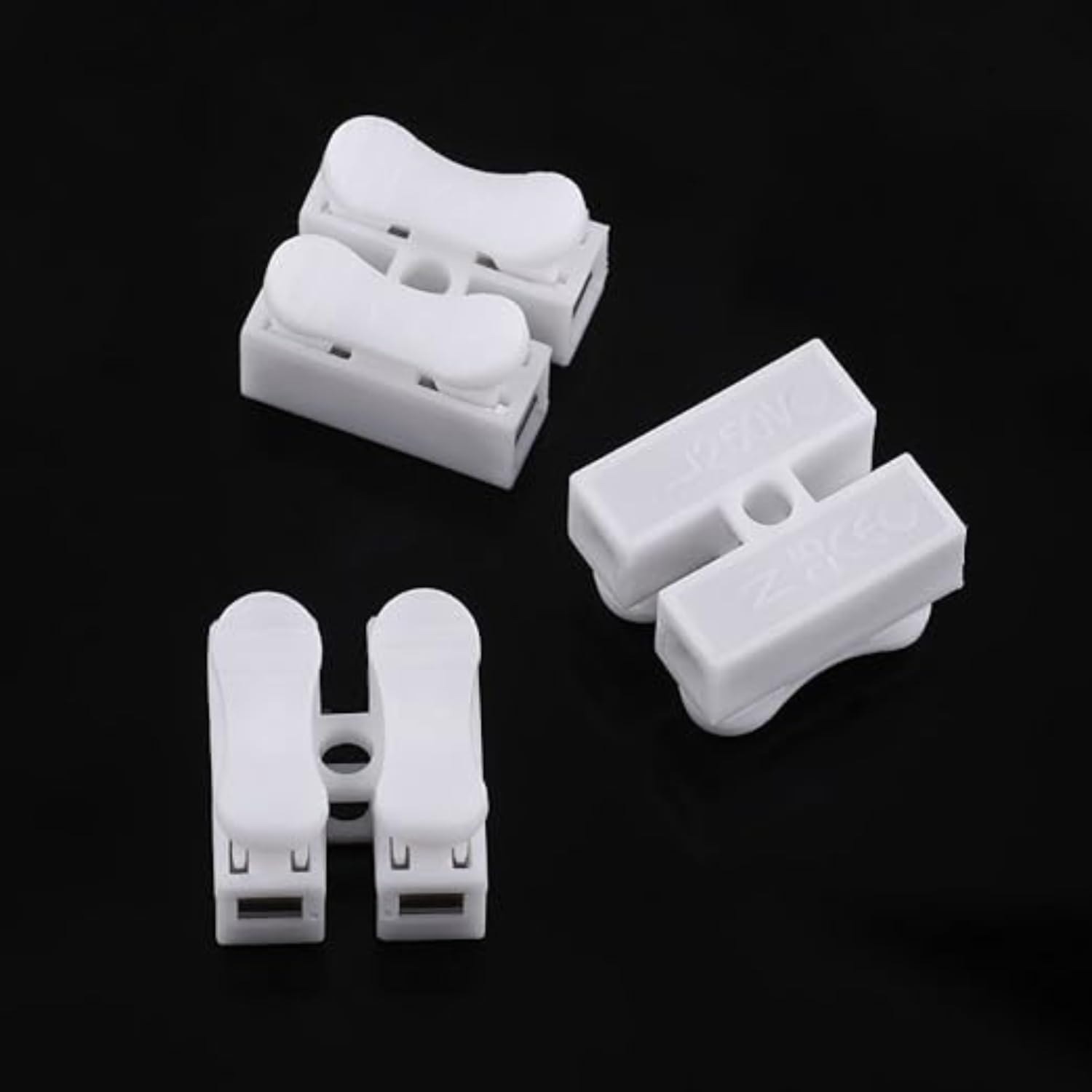

CH-2 Quick Wire Connector / Spring Type Terminal Block Connector Type 2 Pin Connector Push Type / Spring Clamp Connector Reusable Wire Connector Electrical Specification Parameter Specification Rated Voltage 220V AC / 50V DC Rated Current 6A – 10A Number of Pins 2 Pin Contact Resistance Low Resistance Spring Contact Insulation Resistance ≥100MΩ Mechanical Specification Parameter Specification Lock Type Spring Clamp Mounting Type Inline Wire Entry Push-In Type Reusable Yes Screw Hole M3 Center Hole Material Details Part Material Housing Flame Retardant PP / PC Plastic Contact Material Phosphor Bronze / Manganese Steel Spring Material Stainless Steel Wire Compatibility Specification Value Supported Wire Size 0.5mm² – 2.5mm² Wire Type Solid & Stranded Wire Strip Length 8mm – 11mm Physical Dimensions Dimension Approximate Size Length 20mm – 22mm Width 16mm – 17mm Height 11mm – 13mm Features Quick wire connection No soldering required Strong spring locking mechanism Flame retardant body Compact and lightweight Easy installation and removal Suitable for repeated use Applications LED lighting connections Ceiling lights Home electrical wiring Automotive wiring DIY electronics projects Power distribution boxes Fan and switch connections Color White Operating Temperature -40°C to +105°C Package Includes CH-2 2-Pin Connector The CH-2 connector is commonly used for fast and secure joining of two electrical wires without soldering.
