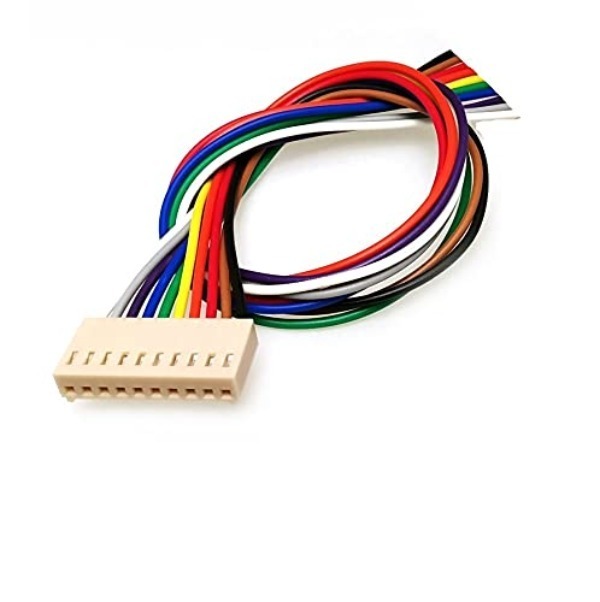

Based on the uploaded image, this is a 2510 Relimate Wire Harness (Female Connector with Pre-crimped Wires), commonly used for wire-to-board connections in electronic equipment, industrial control panels, LED drivers, battery packs, and PCB assemblies. 2510 Relimate Wire – Full Specification Product Name 2510 Relimate Female Wire Harness General Specifications Parameter Specification Connector Type 2510 Relimate Female Connector Pitch 2.54 mm (0.1 inch) Number of Pins 2 to 16 Pins (image shows approximately 10-pin) Connector Style Wire-to-Board Gender Female Housing with Crimp Terminals Housing Material Nylon 66 (UL94V-0 Flame Retardant) Contact Material Phosphor Bronze / Brass Contact Plating Tin Plated Wire Material Copper, PVC Insulated Wire Gauge 22–28 AWG (commonly 24 AWG or 26 AWG) Wire Length 100 mm, 150 mm, 200 mm, 300 mm or custom Rated Current Up to 3 A Rated Voltage 250 VAC/DC Contact Resistance ≤20 mΩ Insulation Resistance ≥1000 MΩ Withstanding Voltage 1000 VAC for 1 Minute Operating Temperature -40°C to +85°C Mounting Type Mates with 2510 Male PCB Header RoHS Compliance Yes Dimensions Item Dimension Pitch 2.54 mm Housing Width Depends on Number of Pins Housing Height Approx. 8 mm Housing Thickness Approx. 6 mm Wire Diameter Approx. 1.5–2.0 mm (depending on AWG) Features Secure polarized locking design Easy plug-and-play connection Excellent electrical conductivity Durable nylon housing Corrosion-resistant tin-plated terminals Suitable for repeated mating cycles Lightweight and compact Applications Industrial Control Panels PCB Connections LED Drivers Power Supplies Automation Equipment Consumer Electronics Battery Packs Medical Equipment Robotics Telecommunication Devices Automotive Electronics (low-voltage applications) Package Includes 1 × 2510 Female Relimate Connector Housing Crimp Terminals Multi-colour PVC Wires (pre-crimped) This connector is compatible with 2510 series male PCB headers having a 2.54 mm pitch and is widely used in industrial electronic assemblies.
