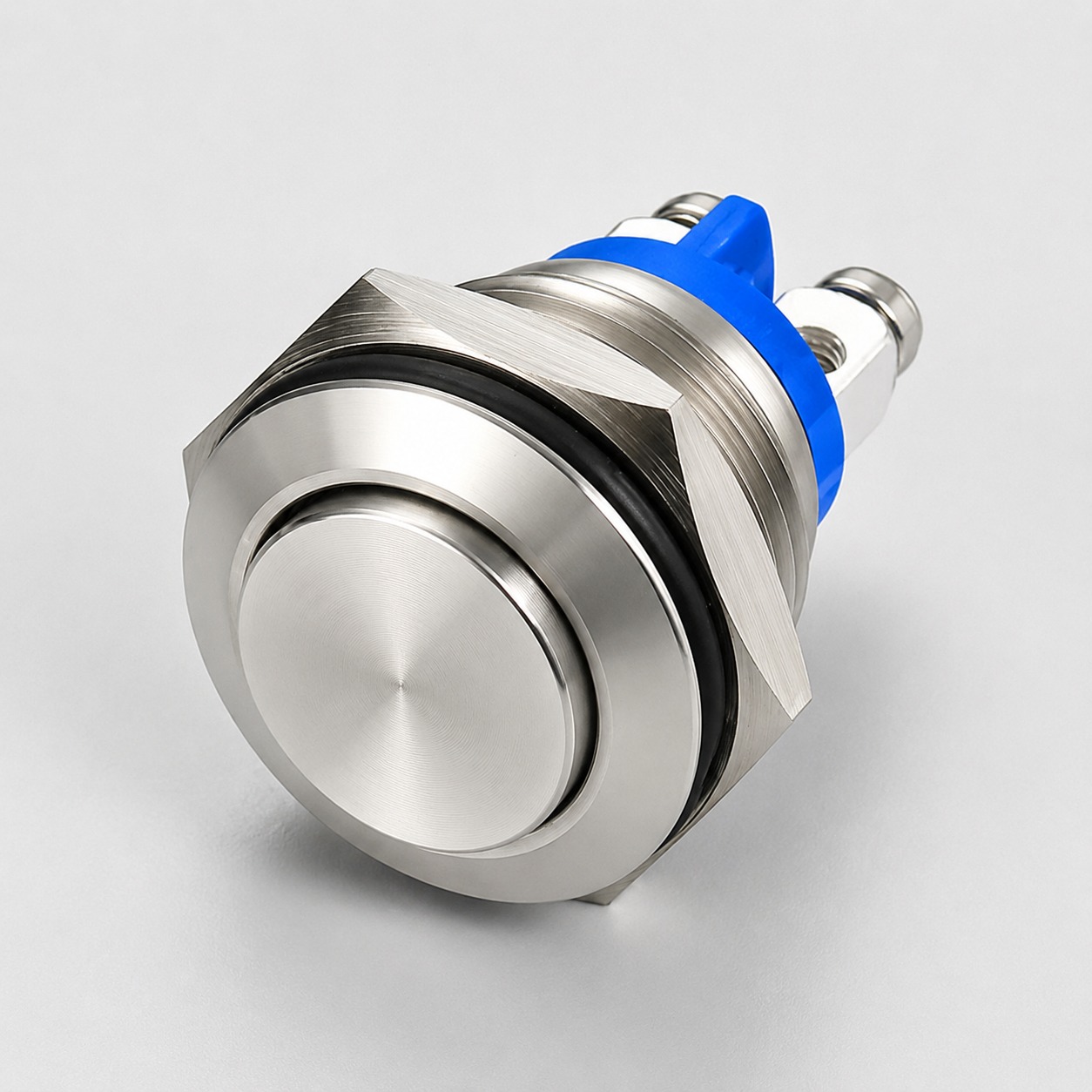

The 16MM Metal 2 Pin Reset Push Button Switch is a high-quality momentary push button designed for industrial control panels, automation equipment, electrical machines, automotive systems, and DIY electronics. The switch returns automatically to its original position after being pressed, making it ideal for reset, start, and trigger applications. Technical Specifications Parameter Specification Product Name 16MM Metal Push Button Switch Switch Type Momentary (Reset) Mounting Hole Diameter 16 mm Contact Configuration SPST (1NO) Number of Pins 2 Pins Operation Push ON, Release OFF Actuator Type Flat Metal Button Button Material Stainless Steel Housing Material Nickel-Plated Brass / Stainless Steel Contact Material Silver Alloy Contact Resistance ≤50 mΩ Insulation Resistance ≥100 MΩ @ 500VDC Rated Voltage 250VAC / 36VDC Rated Current 2A–3A (depending on model) Dielectric Strength 1000VAC for 1 Minute Mechanical Life More than 500, 000 Operations Electrical Life More than 50, 000 Operations Operating Temperature -20°C to +55°C Protection Rating IP65 (Front Panel) Terminal Type Pin Terminal Panel Thickness 1–8 mm Mounting Method Panel Mount with Hex Nut Body Finish Brushed Stainless Steel Approximate Dimensions Dimension Size Mounting Hole 16 mm Button Head Diameter 18 mm Overall Body Diameter 16 mm Thread Length 12–15 mm Overall Length 30–35 mm Terminal Length 6–8 mm Features Stainless steel metal construction Momentary (Reset) operation Flat metal actuator 2-pin terminal design IP65 water and dust resistant front Long mechanical life Corrosion-resistant body Easy panel installation Compact and durable design Reliable silver alloy contacts Applications Industrial Control Panels Reset Buttons Automation Systems CNC Machines Medical Equipment Power Supplies Test Equipment Automotive Electronics Battery Chargers UPS Systems Security Systems Robotics Projects DIY Electronic Projects Electrical Control Boxes Package Includes 1 × 16MM Metal Momentary Push Button Switch (2 Pin) 1 × Mounting Nut 1 × Rubber Waterproof O-Ring This type of 16MM metal reset push button is widely used where a normally open (NO), momentary push-to-make switch is required. It provides excellent durability, reliable electrical performance, and a professional appearance for industrial and commercial equipment.
