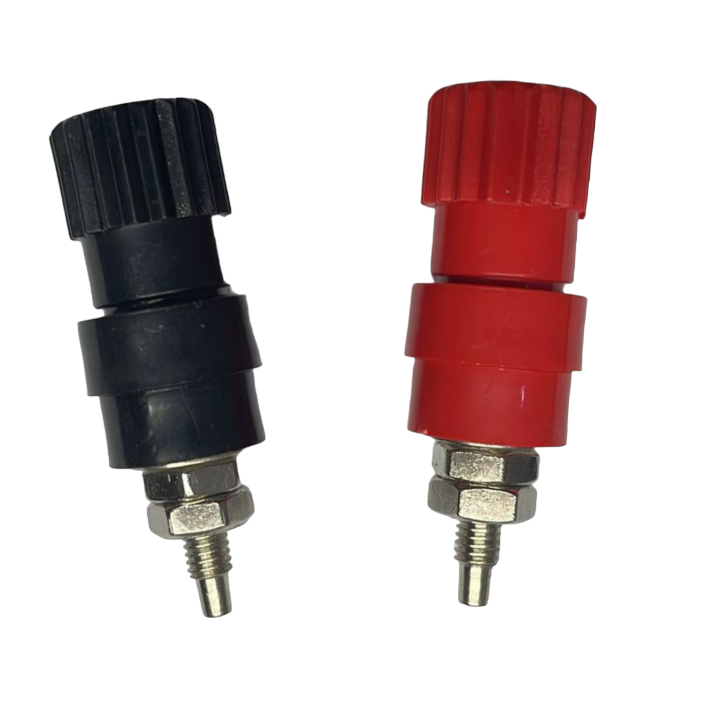

The BTI-30 is a 30A panel-mount binding post / terminal, designed for electrical test points, power supplies, electrical trainers, laboratory equipment and industrial panels. The specifications below are based primarily on the ELCOM BTI-30 datasheet and product page.
Product Specifications
Parameter BTI-30 Specification
Product Name BTI-30 Binding Post Terminal
Product Type Panel Mounting Terminal / Binding Post
Mounting Style Panel Front Mounting
Mounting Method Screw Type
Rated Current 30 A
Rated Voltage 250 V AC
Contact Resistance (Initial) 5 mΩ max.
Insulation Resistance 1000 MΩ min. @ 500 V DC
High Voltage Breakdown Test 2 kV AC for 1 minute
Operating Temperature −20°C to +85°C
Panel Thickness 2.5 mm max.
Terminal Type Screw Type
Body Material Nylon / ABS
Insulator / Bush Nylon or ABS
Current-Carrying Material Brass / Cu alloy
Terminal Plating Nickel plated
Standard Colour Black
Available Colours Black, Red, Blue, Yellow, Green
Reference Standard JSS 52710
Compliance CE; RoHS available on request
Application Electrical panels, test equipment, power supplies, trainers, laboratory equipment
ELCOM specifically lists the BTI-30 as 250 V / 30 A, with 5 mΩ maximum initial contact resistance, 1000 MΩ minimum insulation resistance and 2 kVAC one-minute dielectric test.
Dimensions
The manufacturer's BTI-series drawing gives the BTI-30 mounting geometry as:
Maximum body diameter: approximately 35 mm
Minimum body diameter: approximately 26.5 mm
Panel cutout: approximately 19.2 mm
Panel thickness: 2.5 mm maximum
Thread: No. 1 BA
Entry: approximately 4.0 × 20.0 mm deep
Overall drawing dimensions: include approximately 28.5 mm body/depth dimension depending on the reference point.
Important: For catalogue/website use, I recommend listing the dimensions directly from the manufacturer's drawing rather than estimating the overall assembled length from the photograph.
Ordering / Colour Codes
For the standard BTI-30 series:
Code Colour / Version
BTI-30-03 Black, Non-RoHS
BTI-30-04 Red, Non-RoHS
BTI-30-05 Blue, Non-RoHS
BTI-30-06 Yellow, Non-RoHS
BTI-30-07 Green, Non-RoHS
BTI-30-V2 RoHS version
The manufacturer's datasheet also identifies BTI-30-A and related variants with different terminal-plating configurations.
Key Features
Heavy-duty 30A binding post
250V AC electrical rating
Front-panel mounting
Screw-type terminal construction
Suitable for 4 mm banana plug/test leads
Brass/copper-alloy current-carrying parts
Nickel-plated terminal construction
Nylon/ABS insulating body
Available in multiple colours for polarity identification
Compact panel-mounted design
Suitable for electrical test and measurement applications
A third-party listing also identifies the BTI-30 as a 4 mm plug-size binding post, consistent with its common use as a banana/test terminal.
Typical Applications
Laboratory power supplies
Electrical trainer panels
Test & measurement equipment
DC/AC power supply terminals
Electrical testing points
Industrial control panels
Battery/test equipment
Solar training and electrical demonstration equipment
Audio/electrical equipment
High-current test connections
For example, Maharashtra's government electrical-training specification lists BTI-30, 30A red and black terminals as high-voltage test points for electrical trainers.
Short Catalogue Specification
BTI-30 BINDING POST TERMINAL
Rating: 30A, 250V AC
Type: Panel Mounting Terminal
Mounting: Front Panel / Screw Type
Contact Resistance: 5 mΩ Max.
Insulation Resistance: 1000 MΩ Min. @ 500V DC
H.V. Test: 2 kVAC / 1 Minute
Temperature: −20°C to +85°C
Panel Thickness: 2.5 mm Max.
Body: Nylon / ABS
Terminal: Brass / Cu Alloy, Nickel Plated
Standard: JSS 52710
Colours: Black, Red, Blue, Yellow, Green
Plug Compatibility: 4 mm Banana Plug
Applications: Test Equipment, Power Supplies, Electrical Panels & Trainers.
